Product Overview

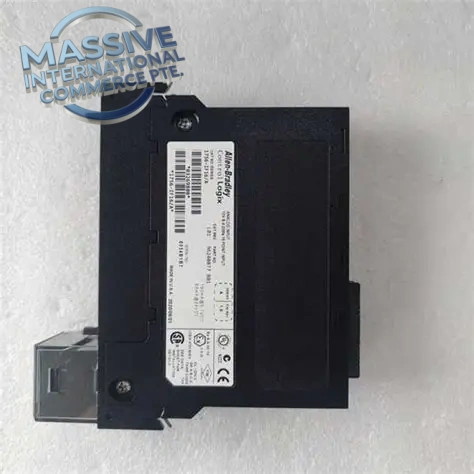

The Allen-Bradley 1756-IF16 is a non-isolated 16-channel analog input module for Rockwell Automation ControlLogix PLC rack system. It converts analog current or voltage signals from field transmitters into digital values for the Logix controller, widely used for measuring pressure, flow, level, temperature and other process variables. This module supports single-ended voltage and current input modes, equipped with built-in scaling, over-range / under-range alarm and channel diagnostics. It is commonly deployed in chemical, power, water treatment, oil & gas and manufacturing process control cabinets, paired with 1756 series removable 36-pin terminal block for field wiring termination.
Technical Specifications
| Item | Parameter |
|---|---|
| Part Number | 1756-IF16 |
| Manufacturer | Allen‑Bradley (Rockwell Automation) |
| Series | ControlLogix 1756 I/O |
| Product Type | 16-channel Non-isolated Analog Input Module |
| Channel Count | 16 analog input channels |
| Input Signal | Configurable: 4–20mA, 0–20mA, ±10V, 0–10V |
| Resolution | 16-bit |
| Terminal | 36-pin removable screw/spring terminal block |
| Backplane Current Draw | 210mA @ 5.1V DC |
| Channel Isolation | No isolation between individual channels; backplane to field no galvanic isolation |
| Diagnostics | Per-channel over/under range, open wire detection, module fault LED indicators |
| Enclosure Rating | IP20 (cabinet mounting only) |
| Operating Temp | 0°C ~ +60°C |
| Storage Temp | -40°C ~ +85°C |
| Humidity | 5–95% non-condensing |
| Configuration Software | Studio5000 / RSLogix 5000 |
| Hot Swap | Yes |
Key Features
- 16 high-density analog input channels, configurable for either current or voltage field transmitters, saving rack space in multi-point process measurement applications.
- 16-bit high resolution analog-to-digital conversion, on-board engineering unit scaling, upper/lower range alarm for each channel.
- Per-channel diagnostics including wire break detection, over-range and under-range monitoring, quickly identifying faulty field transmitter or wiring issues.
- Hot-swappable module design, allows replacement while the ControlLogix rack remains energized under approved maintenance procedures.
- Removable 36-pin terminal block, field wiring can stay connected when pulling the module out, reducing rewiring workload during spare replacement.
- Producer/consumer communication model, I/O data published directly to Logix controller over backplane for fast deterministic process control.
- Compact standard ControlLogix single-slot form factor, fits all standard 1756 ControlLogix chassis.
- Suitable for general process monitoring and control for 4-20mA transmitters in continuous manufacturing and utility systems.
Installation Notes
- Install 1756-IF16 module into empty slot of ControlLogix 1756 chassis, lock module latch after insertion.
- Use matched 36-pin removable terminal block for field analog wiring; separate low-level analog signal cables from high-power AC wiring to minimize EMI noise.
- Configure channel signal type (mA or voltage) in Studio5000 before commissioning.
- Follow lockout/tagout procedures before disconnecting field transmitter wiring.
- Backup the Logix controller project before module replacement or firmware upgrade.
- After installation, perform channel calibration and full loop test with signal simulator before returning the control system online.
- Do not mix high voltage signals on the same wiring harness with 4-20mA analog inputs.
Testing Procedure
- Visual inspection: Check module housing, front LED indicators, edge connector and terminal block for scratches, bent pins or corrosion.
- Insert module into ControlLogix chassis, install terminal block and wire field simulator connections.
- Power up rack, verify module passes power-on self-test and status LEDs show normal operation.
- Use signal simulator to inject 4mA,12mA,20mA or voltage reference signals for each channel.
- Read values in Studio5000 controller tags, validate scaling accuracy and over/under-range alarm function.
- Simulate wire break condition to verify open-wire diagnostic alarm triggers correctly.
- Save controller project backup, record channel calibration test data and tag spare module for inventory.
FAQ
Q: What is Allen-Bradley 1756-IF16 used for? A: It is a 16-channel analog input module for ControlLogix PLC, collecting 4-20mA / voltage signals from field process transmitters for flow, level, pressure measurement.
Q: Are channels isolated on 1756-IF16? A: No, it is non-isolated version. If channel-to-channel isolation is required, select 1756-IF6I or other isolated analog input modules.
Q: Is 1756-IF16 hot swappable? A: Yes, it supports hot swap in ControlLogix rack under approved maintenance procedures.
Q: What software configures 1756-IF16? A: Studio5000 or RSLogix 5000 for channel type selection, scaling and alarm setup.
