Description
At-A-Glance Executive Brief
- Model: HIEE300766R0001, alternative designation GDB021BE01
- Brand: ABB
- Part Type: Rack plug-in interface module for ABB Advant MasterPiece legacy DCS
- Lifecycle status: Legacy DCS spare; stocked for brownfield Advant MasterPiece retrofits and plant maintenance
- System compatibility: ABB Advant / MasterPiece control rack; manages backplane bus communication, signal conditioning and hardware diagnostics, transfers process values and fault alarms to DCS operator station
- Weight: ~0.5 kg
Technical Introduction
Failure of HIEE300766R0001 will interrupt backplane bus communication within its assigned control rack segment. The module loses the ability to relay I/O status and process data between the MasterPiece controller and local rack I/O cards. DCS raises module fault alarms, I/O tags turn bad quality, and associated control loops or sequence functions may automatically switch to manual or safe state, which may induce plant process upset.

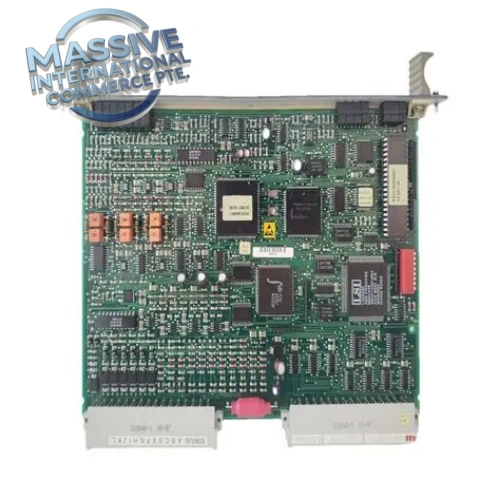

ABB HIEE300766R0001 (GDB021BE01) is a slot-mounted plug-in PCB board built for the ABB Advant MasterPiece legacy distributed control system. It acts as a critical rack interface board handling backplane bus communication and signal conditioning between the MasterPiece controller and rack I/O sub-modules. The printed circuit board has conformal coating to resist dust and humidity inside industrial control cabinets and includes galvanic isolation to reduce EMI noise interference. It continuously executes hardware self-tests, monitors bus health, collects module diagnostic data, and transmits real-time process measurements and fault codes to the DCS operator HMI. Front panel LED indicators display power status, bus link health and fault conditions to support fast on-site troubleshooting. This module is widely deployed in power generation, pulp & paper, and chemical facilities running ABB Advant MasterPiece DCS. Plant reliability teams maintain spare HIEE300766R0001 units to quickly restore rack bus communication during planned shutdowns or unplanned failures.
- Best Suited For
- ABB Advant MasterPiece DCS control racks
- Backplane bus communication, signal conditioning and rack hardware diagnostics
- Direct drop-in replacement for existing ABB HIEE300766R0001 / GDB021BE01 rack interface hardware
Core Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | HIEE300766R0001 (GDB021BE01) |
| Platform | ABB Advant MasterPiece DCS |
| Main Function | Rack backplane interface, bus communication, signal conditioning, module self-diagnostics |
| Backplane Supply | 24VDC |
| Typical Power Consumption | ~2.5W |
| Isolation | Galvanic isolation for noise suppression |
| Operating Temperature | -20℃ ~ +60℃ |
| Humidity Range | 5–95% RH, non-condensing |
| Enclosure Rating | IP20 (when installed inside control cabinet) |
| PCB Treatment | Conformal coated |
| Installation | Slot mount for MasterPiece rack |
| Weight | ~0.5 kg |
| Environmental Details | Please refer to the OEM datasheet for complete environmental tolerances. |
Field Engineer’s Tech Notes
- Confirm Advant MasterPiece rack firmware revision and backplane compatibility before replacement; different GDB series suffix versions are not interchangeable.
- Implement lockout/tagout procedures before extracting the rack module. Hot removal is only permitted if your system configuration officially supports hot swap.
- Inspect backplane edge connectors for bent pins and contamination; poor contact is the leading cause of intermittent bus communication faults.
- After installation, verify backplane bus handshake, validate I/O tag quality, check front panel LED states, confirm alarm reporting, and clear fault alarms before returning the system to automatic process control.
- ESD protection must be used while handling the PCB and edge connectors.
- Maintain cabinet fans and filter cleanliness; dust accumulation and thermal overheating are the primary failure modes for these legacy conformal-coated control boards.
Adaptive QA & Testing Protocol
Each HIEE300766R0001 module is bench tested on ABB Advant MasterPiece test rack. We verify 24VDC backplane power-up, backplane bus communication handshake and signal conditioning performance. Module self-test, watchdog and fault reporting functions are validated. Front panel LED indicators are checked. PCB, edge connector and solder joints are visually inspected for corrosion, scratches or thermal damage. Full test reports or bench test video clips are available upon request.
Buyer’s FAQ
Q: What is ABB HIEE300766R0001 used for? A: It is a rack plug-in interface module (GDB021BE01) for ABB Advant MasterPiece legacy DCS, handling backplane bus communication, signal conditioning and rack hardware diagnostics.
Q: What warranty applies for refurbished and NSFP HIEE300766R0001? A: Refurbished and NSFP units carry a 12-month hardware warranty. Coverage excludes ESD damage, backplane surge damage, bent connector pins, firmware mismatch and improper rack configuration.
Q: What lead time should I expect? A: Stocked units ship 3–7 business days. If inventory is depleted, lead time increases while we source surplus ABB HIEE300766R0001 modules.
Q: Is HIEE300766R0001 hot-swappable? A: Hot swap capability depends on your specific MasterPiece rack configuration and running control logic. Always refer to plant documentation before live removal.
