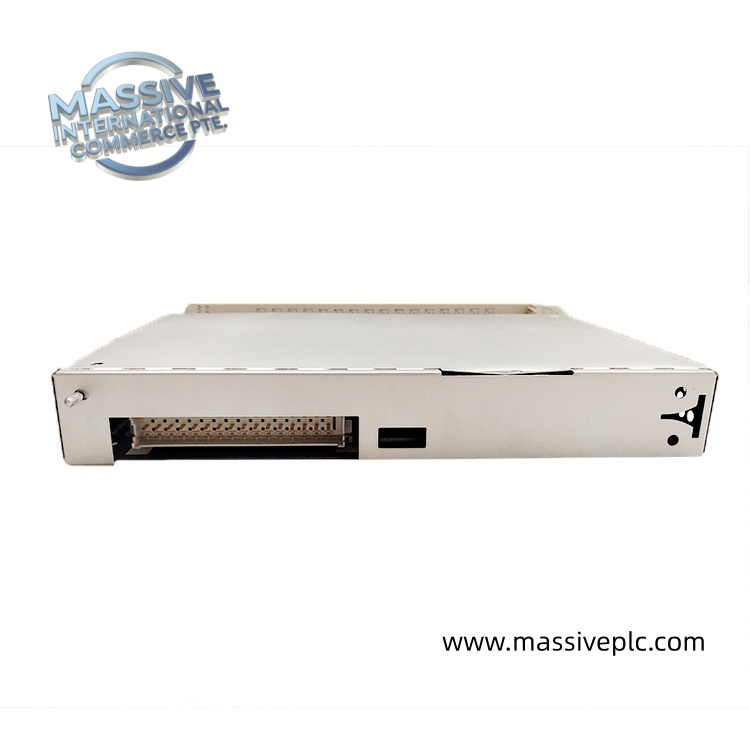

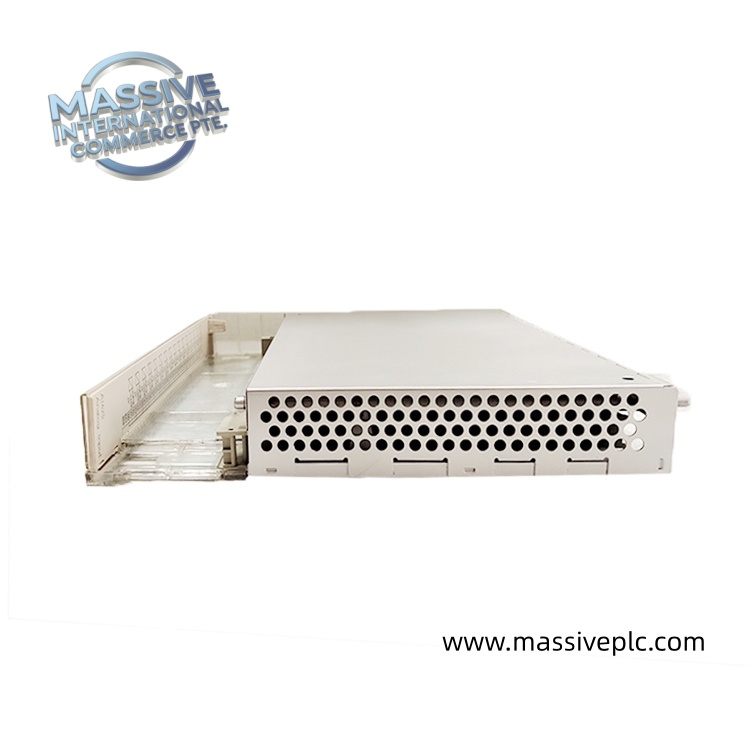

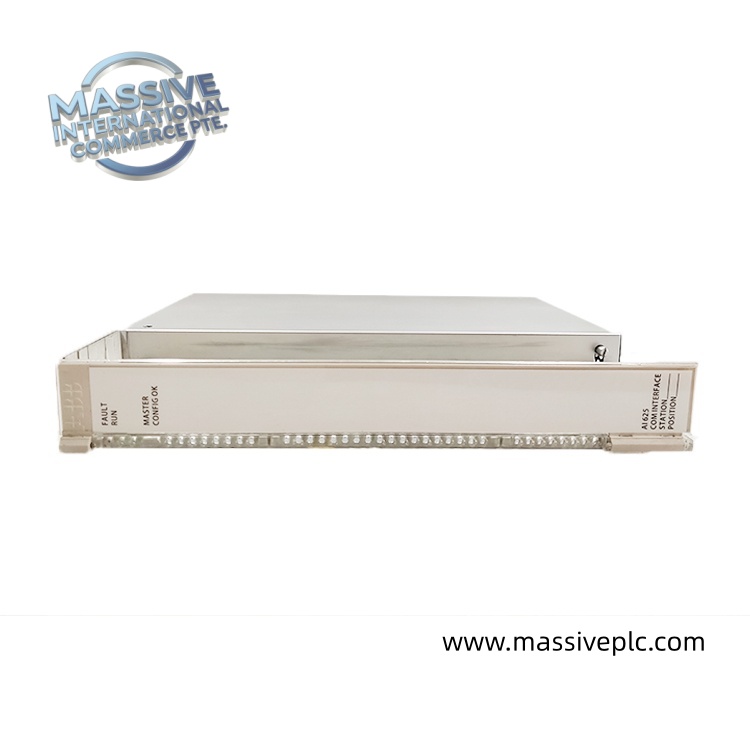

ABB AI625 | Analog Input Module, 16-Channel S600 I/O Process Control Module, In Stock
Product Specifications
Model: AI625
Brand: ABB
Part Number: 3BHT300036R1
Alternative Part Number: 3BHT300036R0001
Product Type: Analog Input Module
Series: S600 I/O
System: ABB Advant Master Process Control System
Number of Input Channels: 16
Resolution: 12 bits
Input Signal Range: 0–20 mA
Catalog Description: Analog Input, 16 Channels, 12 Bit, 4–20 mA
Galvanic Isolation: Inputs isolated as one group
Common Mode Voltage (CMV): 50 V
Common Mode Rejection Ratio (CMRR): Greater than 100 dB
Shunt Resistance: 100 Ω
Dimensions: 252 × 273 × 40 mm
Product Net Weight: 1.225 kg
HS Code: 85389091
Application: Industrial process monitoring, analog signal acquisition, and process control systems
Product Overview
The ABB AI625 is a 16-channel analog input module in the S600 I/O family, designed for use with ABB Advant Master process control systems. It provides 12-bit signal resolution and accepts current-loop input signals in the 0–20 mA range. The module’s input circuits are galvanically isolated as one group, with a common-mode voltage rating of 50 V and a common-mode rejection ratio greater than 100 dB. These features support analog signal acquisition in industrial process-control applications.
