Description
Product Overview

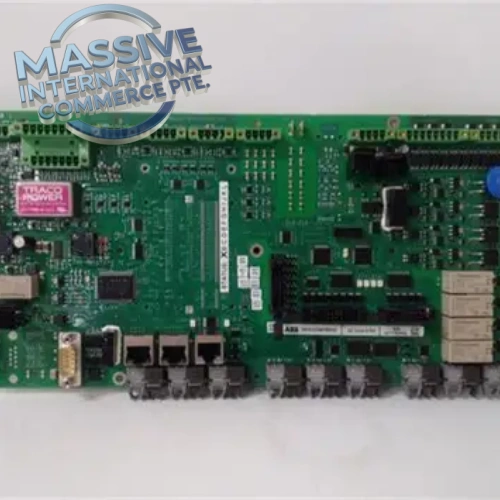

ABB 3BHE023784R1032, also designated PPD113 B01-10-151000, is a high-speed AC800PEC processor module built for ABB UNITROL generator static excitation control systems. It performs fast closed-loop voltage regulation, reactive power control, PSS power system stabilizer computation, generator synchronisation and protection logic. This module samples generator voltage/current signals at high speed and communicates with I/O and pulse amplifier boards such as RH926KE. Widely used in thermal, hydro and gas turbine power plants, it serves as a critical legacy spare for UNITROL excitation cabinet maintenance and retrofit projects.
Technical Specifications
| Parameter | Details |
|---|---|
| Part Number | 3BHE023784R1032 |
| Alternate Designation | PPD113 B01-10-151000 |
| Brand | ABB |
| Type | AC800PEC High Speed Controller Module |
| Compatible Platform | ABB UNITROL Static Excitation System, AC800PEC |
| Processor Core | PowerPC high-speed real-time core |
| Memory | Onboard RAM for control application, fault records and oscillography |
| Communication | Internal high-speed backplane bus, Ethernet for HMI and plant DCS |
| Redundancy | Supports dual hot standby redundant controller configuration |
| Rack Supply | Powered by UNITROL rack backplane |
| Operating Temperature | -20°C ~ +60°C |
| Storage Temperature | -40°C ~ +70°C |
| Humidity | 5~95% RH, non-condensing |
| Mounting | Plug-in rack card in UNITROL excitation cabinet |
| Net Weight | ~2.7 kg |
| Certifications | CE, IEC 61131-3, power system standards |
| Product Status | OEM discontinued, aftermarket legacy spare |
Key Features
- High-speed real-time control core for generator excitation regulation and PSS algorithm calculation
- Dual redundant hot standby support, preventing generator trip caused by single controller failure
- Multi-interface communication links for signal acquisition boards, pulse output boards and upper DCS system
- Comprehensive onboard diagnostics for CPU health, memory faults and communication link failures
- Built-in disturbance recording and event logging for post-fault power system analysis
- Front panel LED indicators for power, run status and fault alarm indication
- Works in conjunction with RH926KE pulse amplifier board to deliver complete excitation control
Installation & Testing Notes
- Insert PPD113 controller module into the dedicated processor slot of UNITROL rack
- Secure backplane connectors properly and verify cabinet protective grounding before power energization
- After power-up, check front panel LED status and execute built-in self-test routine
- Download excitation control parameters; synchronize redundant controller data if deployed in redundant pair
- Hot swap is only allowed for fully synchronized redundant setup; lock generator trip interlocks before replacement. Non-redundant installation requires full rack power shutdown
- Perform static excitation loop test and no-load generator commissioning after replacement
- Inspect connectors regularly in high-vibration turbine cabinet environments
FAQ
Q: What system is 3BHE023784R1032 used in? A: ABB UNITROL generator static excitation system, based on AC800PEC control platform.
Q: What is the alternate part name? A: PPD113 B01-10-151000.
Q: What is the primary function of this module? A: Main high-speed processor performing generator voltage regulation, reactive power control and PSS calculation.
Q: Does it support redundant configuration? A: Yes, dual hot standby redundant configuration is supported.
Q: Which board cooperates with this controller? A: RH926KE excitation pulse amplifier board.
