Description
Product Overview

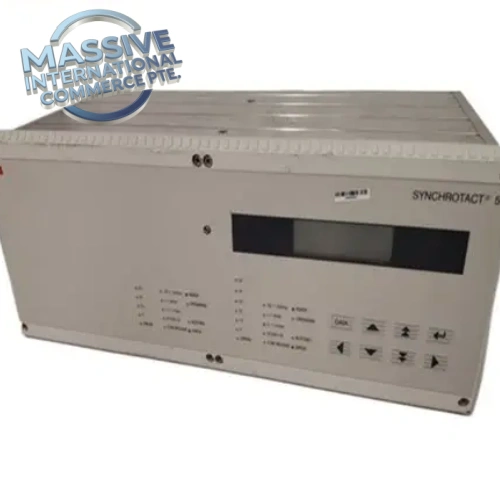

ABB 3BHB006716R0217 (SYN5302A-Z V217) is a dual-channel digital synchronizer belonging to ABB SYNCHROTACT 5 generator synchronisation family. It performs high-precision automatic paralleling control for generators, matching voltage magnitude, frequency and phase angle between generator and grid before closing the circuit breaker. It integrates with ABB UNITROL excitation systems, AC800PEC controllers and substation automation platforms. Widely deployed in thermal, hydro and gas turbine power plants, it is a critical spare for generator grid connection retrofit and maintenance.
Technical Specifications
| Parameter | Details |
|---|---|
| Part Number | 3BHB006716R0217 |
| Alternate Model | SYN5302A-Z V217 |
| Brand | ABB |
| Type | Dual-Channel Digital Synchronizer |
| Series | SYNCHROTACT 5 |
| Frequency Range | 50Hz / 60Hz |
| Voltage Input | 100–240V AC or 24V DC auxiliary supply |
| Measurement Accuracy | Phase difference ±0.2°, voltage matching ±0.5% FS |
| Architecture | Dual redundant independent microprocessor channels |
| Communication | LON network, supporting remote monitoring & parameter setting |
| Parameter Groups | Up to 7 configurable parameter sets for different generator units |
| Response Time | Synchronisation calculation ≤20ms |
| Standards | IEC 60255, ANSI/IEEE C37.90 |
| Operating Temperature | -20°C ~ +60°C |
| Storage Temperature | -40°C ~ +70°C |
| Humidity | 5~95% RH, non-condensing |
| Mounting | Cabinet rack mount |
| Net Weight | ~0.68 kg |
| Certifications | CE |
| Product Status | OEM discontinued, aftermarket legacy spare |
Key Features
- Dual redundant processor design for high reliability generator synchronisation, prevents false breaker closing
- Real-time measurement and automatic tracking of voltage, frequency and phase difference between generator and grid
- 7 groups of stored parameters to quickly switch configuration for multiple generator sets
- LON communication interface for remote status viewing, alarm upload and parameter download
- Built-in protection logic to block breaker closing if out-of-tolerance condition detected
- Front panel LCD and keypad for local configuration, status display and event log review
- Seamless integration with UNITROL excitation and AC800PEC control systems
Installation & Testing Notes
- Mount 3BHB006716R0217 into generator control cabinet rack
- Connect PT voltage signals, breaker control wiring and LON communication cable strictly per single line diagram
- Verify auxiliary power and protective grounding before energizing voltage input circuits
- After power-up, configure generator parameters via front keypad or remote engineering tool
- Perform static synchronisation simulation test to validate phase/voltage/frequency measurement
- This module does NOT support hot swap. Isolate control power and PT secondary circuits before removal
- Complete full on-load synchronisation commissioning after replacement
- Periodically inspect voltage wiring terminals in high vibration power plant cabinets
FAQ
Q: What is 3BHB006716R0217 also named? A: SYN5302A-Z V217, part of ABB SYNCHROTACT 5 synchroniser series.
Q: What is its core function? A: Automatic synchronisation and paralleling of generator to utility grid, supervising voltage, frequency and phase angle before breaker closure.
Q: Does it adopt redundant architecture? A: Yes, dual independent microprocessor channels for high safety and reliability.
Q: Is 3BHB006716R0217 hot swappable? A: No, auxiliary supply and PT secondary wiring must be de-energized before module replacement.
Q: What communication interface does it use? A: LON network for remote monitoring and parameter management.
