Description
Product Overview

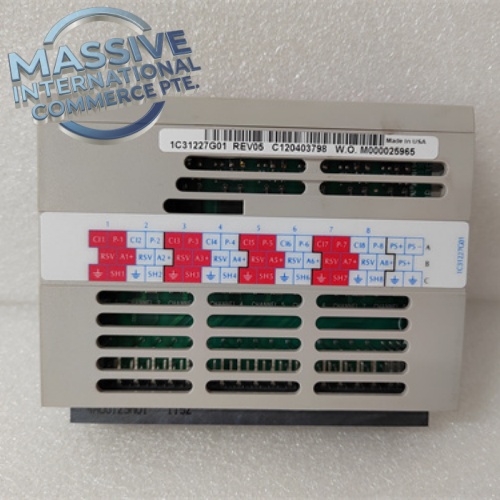

The Emerson 1C31227G01A is revision A of the 8-channel analog input personality module for the Ovation distributed control system. It pairs with compatible Ovation I/O base electronics to convert 4–20mA field transmitter signals into digital values for the Ovation controller. This personality card supports HART pass-through for remote transmitter configuration and diagnostics. OEM production has ended; available stock consists of surplus or refurbished tested replacement units for power generation, boiler controls, pulp and paper, and water treatment DCS racks.
Technical Specifications
| Item | Parameter |
|---|---|
| Part Number | 1C31227G01A |
| Manufacturer | Emerson (Westinghouse Ovation) |
| Module Type | Analog Input Personality Module |
| Channel Count | 8 channels |
| Input Signal | 4–20mA current loop, HART pass-through |
| Resolution | 14-bit |
| Accuracy | ±0.1% full scale at 25°C |
| Input Impedance | 250Ω |
| Isolation | Channel-to-backplane galvanic isolation |
| Backplane Supply | 24VDC |
| Power Draw | 5W max |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Humidity | 5%–95% non-condensing |
| Mounting | Ovation standard rack personality slot |
| Weight | 280g |
Engineer Notes
- This personality module cannot operate independently. Install it onto the matching Ovation I/O base board. Confirm base board part number before ordering.
- Front panel LEDs show module health and individual channel faults. The module detects open loop, short circuit and out-of-range 4–20mA conditions. Open transmitter wiring is the most common field fault.
- HART pass-through allows HART communicator access to connected smart transmitters. Verify HART communication wiring and loop resistance before commissioning.
- Use shielded twisted pair cable for all analog input field wiring. Separate sensor cables from high-current power lines to reduce electrical noise and signal drift.
- Revision A hardware is a variant of 1C31227G01. Cross-check Ovation controller firmware and point database configuration during replacement. Minor register mapping differences may require point scaling adjustment.
- Apply ESD controls during removal and installation. De-energize rack power before inserting or extracting the module. Re-calibrate all channels after swap.
Pre-Shipment Test Protocol
- Visual inspection: Check PCB traces, edge connector, front panel and LED windows for corrosion, bent pins or component damage.
- Continuity and isolation test: Verify isolation between each analog input channel and backplane logic circuit.
- Functional bench test: Connect precision current source to each channel, inject 4mA, 12mA and 20mA reference signals, confirm module readings match source values.
- Fault simulation: Simulate open loop and shorted input on every channel, confirm module triggers diagnostic alarms.
- Power cycling: Cycle backplane power 10 times, confirm readings remain stable after each restart.
- Save test logs and photos for QA records.
Buyer FAQ
Q: Can I replace standard 1C31227G01 directly with 1C31227G01A? A: Form factor is identical and fits the same base board. Confirm Ovation firmware revision and point database configuration before cutover. Some sites require point scaling validation after swap.
Q: Does this module supply loop power to 4-20mA transmitters? A: No. It is a current-sinking personality card. Field transmitters require external loop power supply.
Q: Is this new original Emerson factory stock? A: OEM production has stopped. Available units are surplus or fully refurbished tested stock. We offer a 12-month warranty on tested units.
Q: Are terminal blocks included with the personality module? A: Terminal blocks belong to the I/O base assembly and are not included unless stated on your quote. Confirm terminal availability separately.
