Description
Unboxing & Physical Snapshot

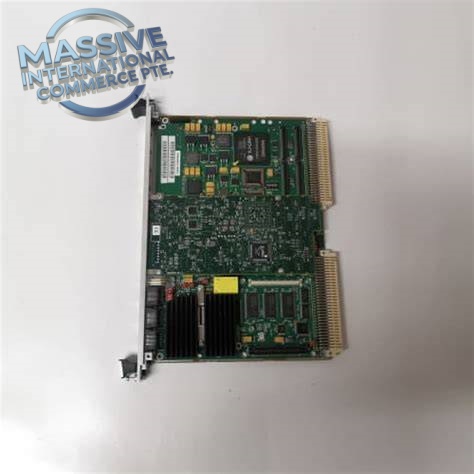

- Brand & Model: Motorola MVME51005E-0163 (Artesyn / Emerson MVME5100 series), 6U VME64x single board computer (SBC)
- Physical Dimensions: 9.2 in H × 6.3 in W × 1.2 in D
- Estimated Shipping Weight: 2.3 lb (packaged with anti-static foam and rigid export carton)
- What’s in the Box: VME single board computer, front panel extraction/injection handles, status LEDs, factory serial test certificate; PMC mezzanine cards, VME rack chassis and cabling sold separately.
Product Introduction (Structure A: Environmental hook)
This Motorola MVME51005E-0163 is the rugged extended-temperature 5E variant of the MVME5100 PowerPlus II VME SBC, built for VMEbus rack systems in power plant control, semiconductor manufacturing and rugged defense automation environments, where continuous vibration, wide temperature swings and heavy electromagnetic interference degrade standard commercial embedded computing hardware. It uses the MPC750 PowerPC processor to run real-time operating systems such as VxWorks or Linux, executing high-speed control, data acquisition and communication tasks over the VME64x backplane.
Integrated hardware watchdog timer, ECC memory and NVRAM battery backup preserve critical configuration data through power interruptions and automatically trigger fail-safe reset upon CPU fault. (Memory integrity and watchdog fail-safe function are core review points during industrial safety and equipment third-party audits.) The conformal-coated PCB and conduction cooling-ready layout protect onboard circuits from dust, humidity and shock in non-airflow constrained cabinets.
Core Technical Specifications
| Parameter | Value |
|---|---|
| Form Factor | 6U VME64x, IEEE1101.10 |
| Processor | Motorola MPC750 PowerPC @450MHz, 1MB L2 Cache |
| Memory | 512MB ECC SDRAM onboard, expandable up to 1.5GB |
| Flash Storage | 17MB onboard flash |
| Non-Volatile Memory | 32KB NVRAM with battery backup |
| Expansion | Dual PMC mezzanine slots for custom I/O expansion |
| Communication | Dual 10/100 Ethernet, dual RS232 serial ports |
| VME Bridge | Tundra Universe-II, VME64x 64-bit burst transfer |
| Operating Ambient Temp | -40 °C to +85 °C (extended temp 5E version) |
| Storage Temperature | -40 °C to +85 °C |
| Relative Humidity (operating) | 5% to 95%, non-condensing |
| Construction | FR4 conformal-coated PCB, aluminum front panel with extraction handles |
Global Compliance & Industry Certifications
- CE Mark
- UL/cUL Listed
- RoHS compliant for qualified production batches
- Designed to meet rugged industrial / MIL environmental shock & vibration criteria
- VME64x ANSI/VITA 1-1994 compliant
The UL/cUL listing verifies component insulation and thermal ratings for continuous long-duration operation in industrial control racks. Verify specific lot certifications with OEM.
Long-Term Storage & Asset Preservation Guide
Store the SBC sealed inside its original ESD shielding bag and shipping carton in a dry, temperature-stable warehouse. Electrostatic discharge can damage the PowerPC CPU, memory controller and VME bridge chip, leading to boot failures or intermittent backplane communication after rack insertion. Inspect spare modules every 24 months. For units stored longer than three years, replace the onboard NVRAM backup battery and perform powered burn-in before installation; aged batteries may lose configuration retention capability. Do not stack heavy rack hardware on the board front panel. Mechanical shock can crack PCB traces or damage VME edge connectors, triggering unstable bus communication.
Physical Installation Prerequisites
Maintain adequate airflow or conduction cooling for the populated VME rack; high operating temperature accelerates CPU and memory component aging. Insert the 6U board fully into the assigned VME slot and engage front panel extraction handles to fully seat the VME edge connector. Secure front panel screws. Use shielded Ethernet and serial cables for external communications, and bond the VME rack chassis to local protective earth to suppress EMI noise.
Buyer’s FAQ
Q: What HS tariff code applies to Motorola MVME51005E-0163 for cross-border shipments? A: Primary HS classification falls under 847150 for embedded single-board computers. Confirm classification with your customs broker before export filings, as rulings depend on supporting technical documentation.
Q: What country of origin is marked on Motorola MVME51005E-0163? A: Country of Origin is United States. This marking appears on the board nameplate and must be reproduced on commercial invoices for cross-border compliance audits.
Q: Does MVME51005E-0163 ship preloaded with operating system? A: No pre-installed OS. Board firmware is factory resident; VxWorks/Linux real-time OS and application control software must be flashed and configured after physical installation.
Q: Should I purchase all-risk shipping insurance for this spare VME SBC? A: Yes. Transit shock can create hidden PCB microcracks or damage edge connectors and memory chips. Intermittent boot or VME bus faults may only manifest once energized in the target rack. All-risk insurance covers full replacement value for transit handling defects.
