Description
Product Overview

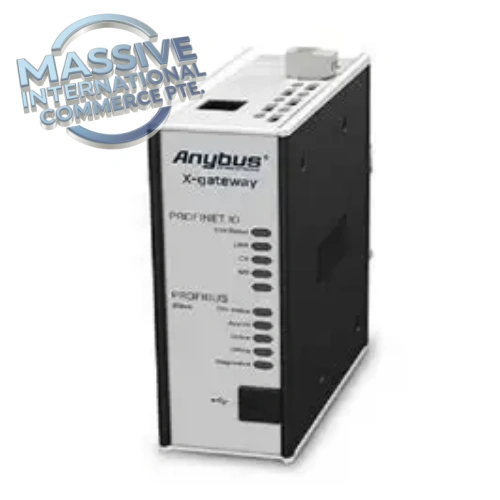

The HMS Anybus AB7652-F belongs to the Anybus X-gateway family. It acts as a bi-directional protocol translator between PROFINET IO Slave network and PROFIBUS DP-V0 Slave network, enabling seamless cyclic I/O data exchange between two different industrial PLC control systems. The gateway transparently copies process data between the two fieldbuses without occupying PLC processing resources. It supports up to 512 bytes of I/O data in each direction, with typical cycle time of 10–15ms. Featuring DIN rail slim housing and galvanic isolation, it is widely used in factory automation, power plant auxiliary control, packaging machinery and process industries to integrate legacy PROFIBUS devices into modern PROFINET systems. This unit is commonly stocked as critical communication spare for industrial control network retrofit and maintenance.
Technical Specifications
| Parameter | Details |
|---|---|
| Part Number | AB7652-F |
| Manufacturer | HMS Networks (Anybus) |
| Product Category | X-gateway Industrial Protocol Gateway |
| Network Interface 1 | PROFINET IO Slave |
| Network Interface 2 | PROFIBUS DP-V0 Slave |
| Max I/O Data Size | 512 bytes input / 512 bytes output per direction |
| Power Supply | 24 VDC, max 400mA |
| Configuration Port | USB (Anybus Configuration Manager software) |
| Enclosure Rating | IP20, DIN rail mount |
| Dimensions | 44 × 114 × 127 mm |
| Galvanic Isolation | Yes, between networks and power |
| Status Indicators | LED indicators for power, link, network, fault and diagnostic status |
| Operating Temperature | -25°C ~ +65°C |
| Storage Temperature | -40°C ~ +85°C |
| Relative Humidity | 5% ~95% non-condensing |
| Approximate Weight | 0.64 kg |
Compliance & Certifications
- CE mark for EMC and Low Voltage Directive
- UL / cULus approved
- ATEX hazardous location certification available
- RoHS compliant
- Factory full network communication test, I/O data transfer and diagnostic verification before shipment
Storage & Installation Guidelines
Storage Requirements
- Store in dry temperature-controlled warehouse; recommended ambient 10°C ~30°C, RH <70% non-condensing
- Remain sealed inside original packaging before installation
- Protect from mechanical shock, continuous vibration, dust and corrosive vapors
- ESD wristband required when unpacking and handling
Installation Instructions
- Perform lock-out/tag-out of industrial control network and 24VDC power supply before installation
- Wear ESD protective gear to avoid electrostatic circuit damage
- Snap the gateway onto standard DIN rail inside control cabinet
- Wire 24VDC power to the power terminal
- Connect PROFINET Ethernet cable and PROFIBUS bus cable to respective ports
- Use Anybus Configuration Manager (ACM) software via USB to configure I/O mapping and network parameters
- Restore power, verify LED status indicators
- Test cyclic I/O data exchange between PROFINET and PROFIBUS networks; commissioning must be completed by certified industrial network technicians
FAQ
Q: What is AB7652-F used for? A: It is an Anybus X-gateway that bridges PROFINET IO Slave and PROFIBUS DP-V0 Slave networks for cyclic I/O data exchange between PLC systems.
Q: What software configures this gateway? A: Anybus Configuration Manager (ACM), connected via USB port for I/O mapping, network settings and firmware update.
Q: What is the maximum I/O data capacity? A: Up to 512 bytes input and 512 bytes output on each network side.
Q: Is galvanic isolation built in? A: Yes, galvanic isolation separates the two fieldbus networks and power circuit to reduce ground loop interference.
Q: What warranty is available? A: Standard 3-year manufacturer warranty, and standard 12-month warranty applies for fully tested units operated under rated normal operating service conditions.
