Description
Product Overview

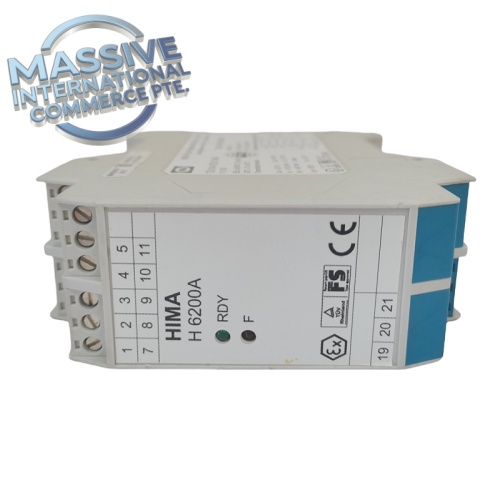

The HIMA H6200A is a high precision analog signal isolation and conversion module for HIMA safety instrumented systems (SIS). It receives analog process signals from field transmitters such as pressure, temperature and flow instruments, provides galvanic isolation, signal conditioning and conversion, then sends standardized 4-20mA signals to safety logic solver. The module is designed for hazardous industrial environments, used for Emergency Shutdown (ESD), Fire & Gas (F&G) and burner management systems in oil & gas, petrochemical and power plants. It serves as a direct drop-in replacement spare for legacy HIMA safety racks.
Technical Specifications
| Parameter | Details |
|---|---|
| Part Number | H6200A |
| Manufacturer | HIMA Paul Hildebrandt GmbH (Germany) |
| Product Type | Analog Signal Isolator / Transmitter Module |
| Input Signal | 4–20mA analog current loop |
| Output Signal | Isolated 4–20mA |
| Power Supply | 24 VDC (19.2 ~ 30 VDC operating range) |
| Operating Temperature | -20°C ~ +60°C |
| Storage Temperature | -40°C ~ +85°C |
| Relative Humidity | 5% ~ 95% non-condensing |
| Safety Level | SIL 2 / SIL 3 capable, TÜV certified |
| Isolation | Galvanic isolation between field side and system side |
| Mounting | DIN rail mounting inside safety cabinet |
| Weight | Approx. 0.3 kg |
Compliance & Certifications
- TÜV certification for functional safety IEC 61508 / IEC 61511
- ATEX / IECEx certification for hazardous area applications
- CE mark for EMC and machinery safety
- Factory full functional testing and calibration before shipment
Storage & Installation Guidelines
Storage Requirements
- Store in dry, temperature-controlled warehouse, ambient temperature 10°C ~ 30°C, RH less than 70% non-condensing
- Keep sealed in original anti-static packaging prior to installation
- Protect from mechanical shock, vibration, dust and corrosive vapors
- ESD protection required during unpacking and handling
Installation Instructions
- Cut off the power of the safety cabinet before module replacement
- Wear ESD wristband to prevent electrostatic damage to circuit components
- Mount the module on standard DIN rail inside the control enclosure
- Wire field instrument loop and system side wiring strictly following HIMA official wiring diagram
- Verify loop resistance and signal integrity after wiring completion
- Restore power, perform loop calibration and system diagnostic test
- Installation and commissioning must be completed by certified SIS safety technicians
FAQ
Q: What system does HIMA H6200A belong to? A: It is used with HIMA SIS safety instrumented systems for process safety signal isolation and conversion.
Q: Can it be used in explosive hazardous zones? A: Yes, it carries ATEX / IECEx certification for deployment in classified hazardous locations.
Q: What is the main function of this module? A: It provides galvanic isolation for 4-20mA field signals to block interference and transient surges, protecting the safety controller.
Q: Is hot swap available? A: Hot swap is not recommended. De-energize the rack before removing or inserting the module.
Q: What warranty is provided? A: Standard 12-month warranty applies for fully tested modules under normal operating service conditions.
