Description
Product Overview

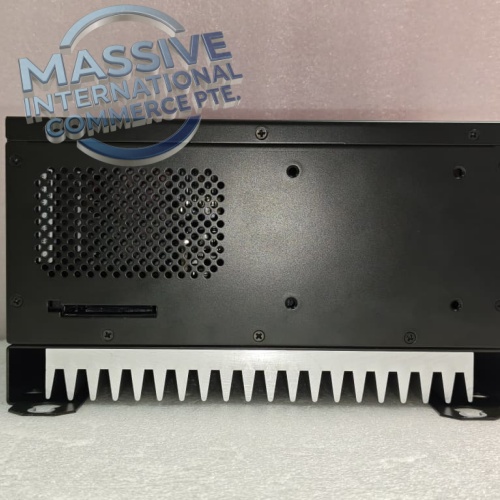

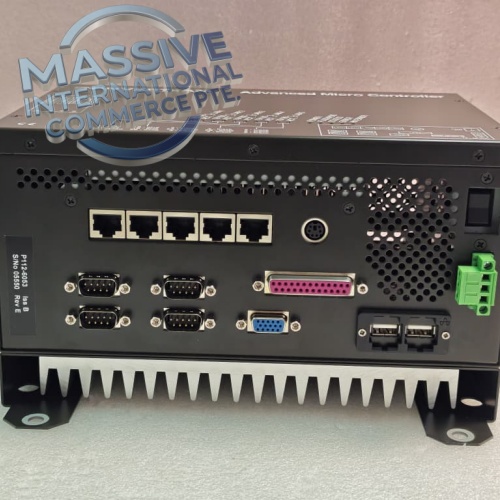

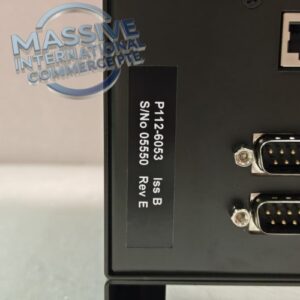

Manufacturer: General Electric (GE) Part Number: P112-6053 This is a high-performance VME bus microcontroller CPU board, designed for GE Mark VI and Mark VIe gas / steam turbine control systems used in power generation. It executes real-time control logic, high-speed data acquisition, fault monitoring and system communication functions for turbine protection and governor control. It is a legacy critical spare part for power plant turbine control cabinet maintenance.
Technical Specifications
| Item | Parameter |
|---|---|
| Processor | Z180 16-bit microcontroller, 16–18 MHz |
| RAM | 512KB SRAM |
| Flash Memory | 1MB flash for firmware storage |
| Bus Interface | VME bus compliant |
| Serial Ports | 2 × RS232 |
| Parallel I/O | 1 parallel port |
| Expansion | Daughterboard expansion header |
| Power Supply | +5VDC, ±12VDC |
| Mounting | VME rack slot mounted |
| Operating Temperature | 0°C ~ +60°C |
| Humidity | 5%–95% non-condensing |
| Revision Versions | ISS A, REV F common hardware revisions |
| Compliance | Power generation control standard, CE, UL |
Key Features
- Real-time high-speed processing for turbine governor and protection logic
- VME bus architecture for seamless integration within Mark VI control racks
- Onboard large flash and SRAM for control firmware and runtime data buffer
- Dual RS232 serial ports for local debug, HMI and diagnostic access
- Hardware watchdog timer to trigger safe shutdown upon CPU failure
- Built-in self-test (BIST) for power-up diagnostic and continuous health monitoring
- Rugged PCB construction with EMC filtering for high EMI turbine cabinet environments
- Hot swap not supported; must power down rack before card replacement
Application Scenarios
- GE Mark VI / Mark VIe gas turbine control racks
- Steam turbine generator control and protection systems
- Combined cycle power plant DCS turbine controllers
- Power plant legacy control system spare replacement and retrofit
- Compressor and mechanical drive turbine control panels
Installation & Maintenance Notes
- Ensure full rack lockout/tagout and power discharge before inserting or removing the P112-6053 board.
- Use proper ESD wrist strap during handling; static discharge can damage onboard memory and processor.
- Verify hardware revision and firmware compatibility with existing Mark VI rack configuration prior to installation.
- Inspect VME edge connector for corrosion, dust or bent pins before installation.
- After replacement, perform power-up BIST and full control logic checkout before returning turbine to service.
- Keep spare modules stored in ESD protective packaging within temperature-controlled warehouse.
FAQ
Q: Which GE turbine control systems use P112-6053? A: It is primarily used in GE Mark VI and Mark VIe gas and steam turbine control racks for power generation.
Q: Can the board be hot-swapped while the VME rack remains powered? A: No. Power must be shut down and capacitors fully discharged before removal or installation.
