Description
Product Overview

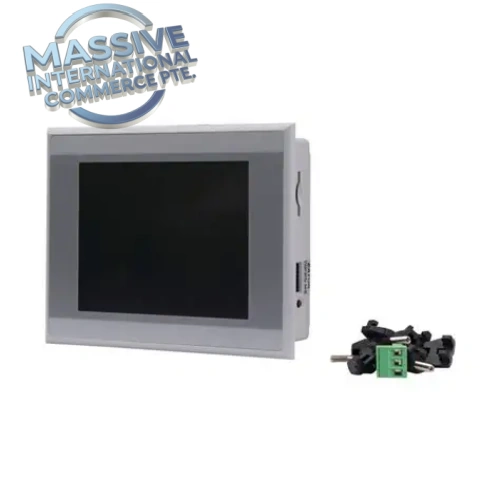

The Eaton XV-102-D0-57TVR-10 (SKU 142530) is a 5.7-inch color resistive touchscreen operator interface from Eaton XV100 second generation family. It combines HMI visualization and integrated PLC logic control in one compact panel-mount unit, running Windows CE 5.0 Core OS. Designed for machine automation, packaging, material handling and general factory control, it offers Ethernet and RS232 serial connectivity for linking to PLCs, drives and field instruments. This model is end-of-life, commonly stocked as spare replacement for existing machine retrofit and maintenance projects.
Technical Specifications
| Item | Parameter |
|---|---|
| Manufacturer | Eaton |
| Part Number | XV-102-D0-57TVR-10, SKU:142530 |
| Product Type | Touchscreen HMI with integrated PLC (HMI-PLC) |
| Series | XV100 / XV-102 |
| Display | 5.7” TFT Color LCD, 640 × 480 resolution, resistive touch |
| Power Supply | 24 VDC (19.2–28.8 VDC range) |
| Processor | 400 MHz RISC CPU |
| Memory | 64 MB flash, 64 MB RAM, SD card slot for expansion |
| Communication Ports | 1 × 10/100 Ethernet; 1 × RS232 serial |
| Front Panel Rating | IP65 when properly panel installed |
| Mounting | Panel cutout mount |
| Cutout Dimensions | 157 mm × 117 mm |
| Unit Depth | 39 mm |
| Weight | 0.52 kg |
| Operating Temperature | 0°C ~ +50°C |
| Certifications | cULus, CE, DNV GL marine approval |
| Software | Galileo HMI configuration software |
Key Features
- All-in-one HMI + PLC design; capable of running simple control logic without separate external PLC hardware.
- 5.7-inch high-brightness color resistive touchscreen, robust against common factory contaminants.
- Dual communication: Ethernet for network PLC connection and RS232 serial for legacy serial devices.
- SD card slot for project backup, recipe storage and firmware upgrade.
- Fanless passive cooling architecture, low maintenance and high reliability for continuous machine operation.
- Supports alarm management, trend curves, recipe handling, user access security and real-time tag visualization.
- EOL legacy panel; available as new surplus or refurbished spare for OEM machine fleet maintenance.
Installation & Testing Notes
- Install with the original rubber gasket to preserve IP65 front panel rating; avoid over-tightening mounting clips.
- Verify 24VDC power polarity before power-up; reverse polarity can permanently damage the unit.
- HMI application project is programmed and downloaded using Eaton Galileo software.
- After installation, confirm Ethernet/RS232 communication, tag reading, touch responsiveness and alarm display.
- Back up the complete project file to SD card for fast on-site recovery before deployment as spare.
- Inspect touchscreen surface, front bezel, terminal connector and SD slot for scratches, corrosion or pin damage.
FAQ
Q: Is this the same as Foxboro XV serial module? A: No. Eaton XV-102-D0-57TVR-10 is a touchscreen HMI panel. Foxboro XV series are DCS serial interface cards; they share similar naming but completely different hardware.
Q: Does XV-102-D0-57TVR-10 include PLC functionality? A: Yes, it is an integrated HMI-PLC variant that can execute local control logic.
Q: What software programs this HMI? A: Eaton Galileo HMI design software for screen editing, tag configuration and project download.
