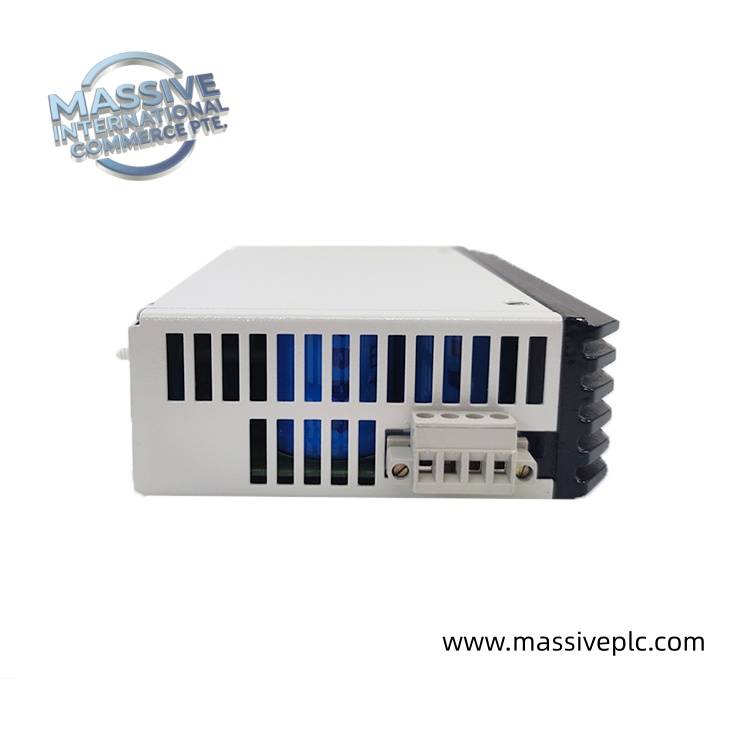

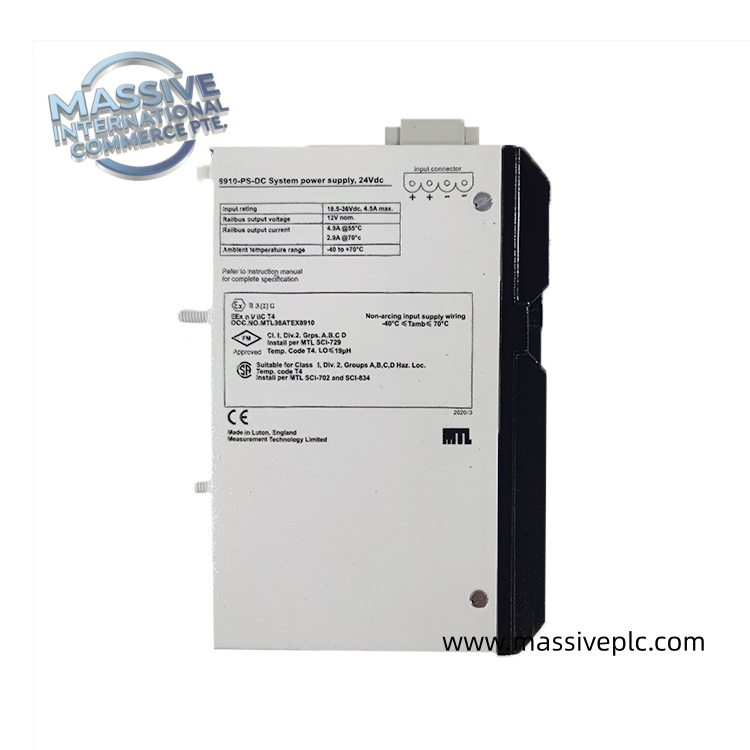

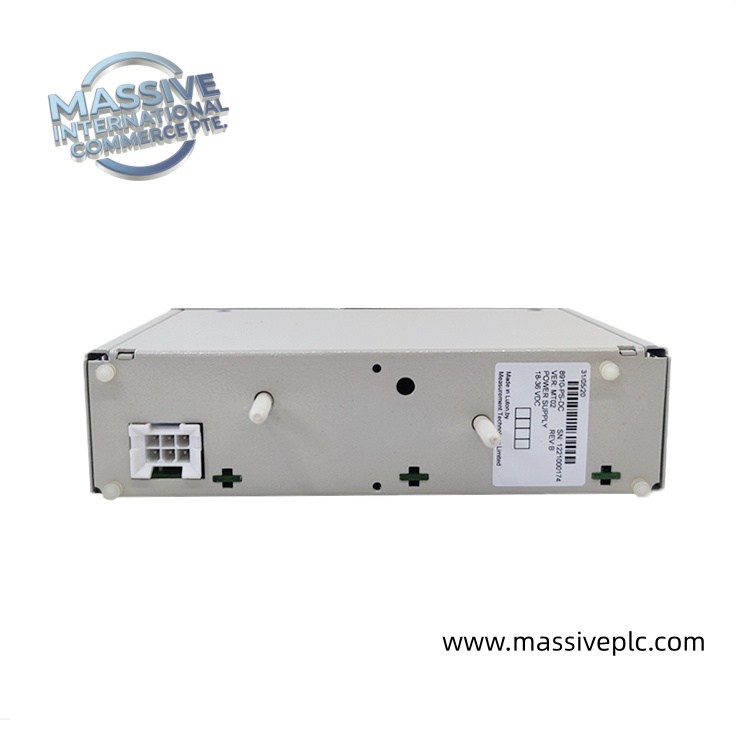

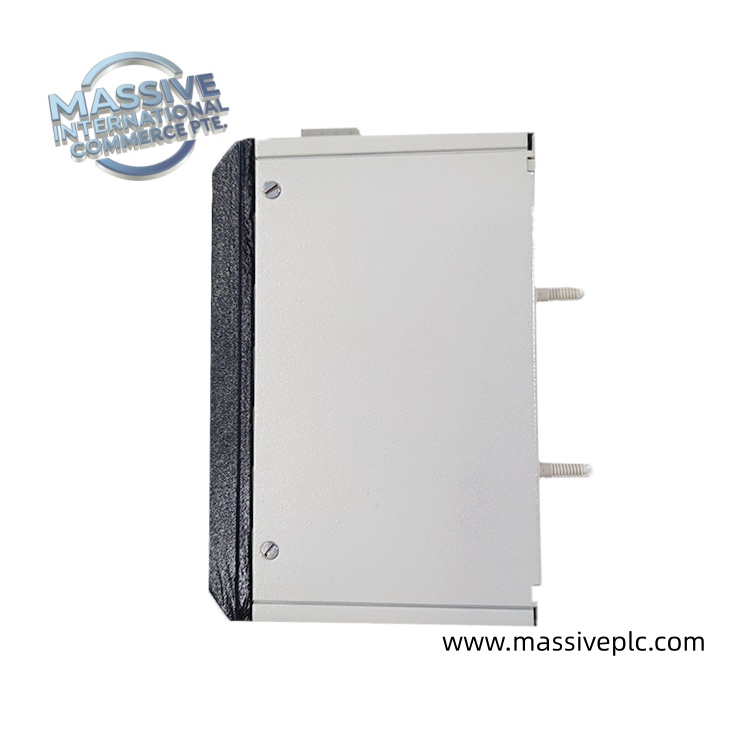

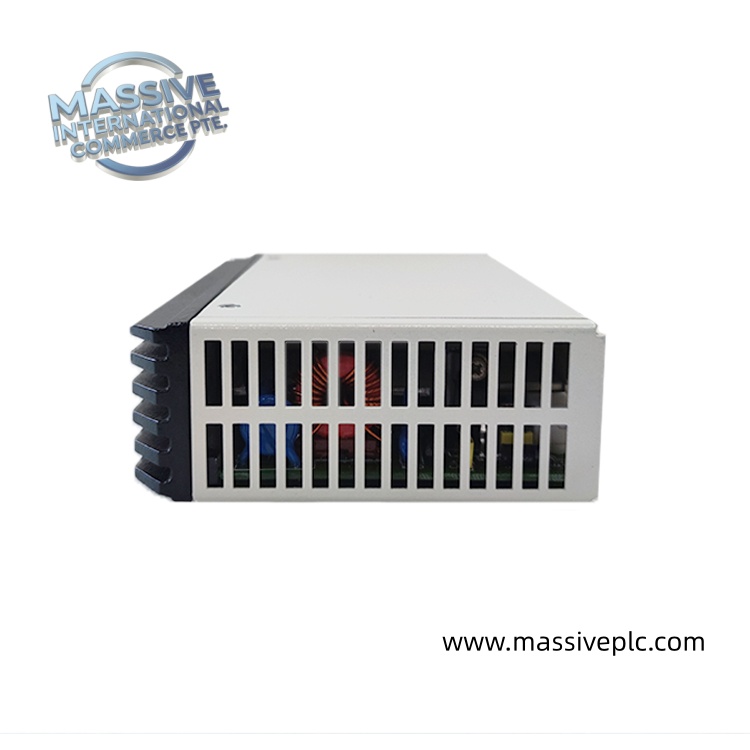

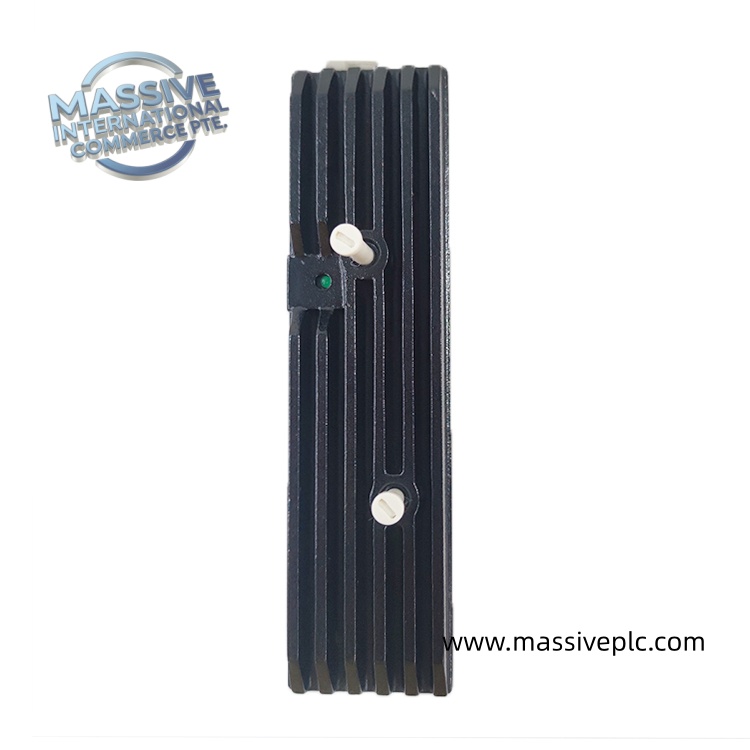

EATON MTL 8910-PS-DC24V12VMTL- | DC Power Supply Module, 12VDC Output, Industrial Automation Spare Part, In Stock

Description

EATON MTL 8910-PS-DC24V12VMTL- | DC Power Supply Module, 12VDC Output, Industrial Automation Spare Part, In Stock

Model: 8910-PS-DC24V12VMTL-
Brand: MTL Instruments
Product Type: DC System Power Supply Module
Series: MTL 8000 / PAC8000
Input Voltage: 18.5–36 VDC
Output Voltage: 12 VDC
Output Current: 4.9 A
Efficiency: 80% at 24 V input
Hold-up Time: 7 ms
Input-Output Isolation: 50 V AC RMS / 720 V DC
Operating Temperature: -40°C to +70°C, depending on load conditions
Protection Rating: IP20
Mounting: Carrier mounting
Product Net Width: 42 mm
Product Net Height: 110 mm
Product Net Depth / Length: 160 mm
Product Net Weight: 0.775 kg
Application: Industrial automation, PAC8000 remote I/O systems, process control, and redundant DC power supply installations

The MTL 8910-PS-DC is a system power supply module designed to provide regulated 12 VDC power for compatible PAC8000 remote I/O nodes. It accepts an 18.5–36 VDC input and delivers up to 4.9 A output current. The module supports redundant power supply configurations and provides a 7 ms hold-up time during brief input power interruptions.
