Description
Product Overview

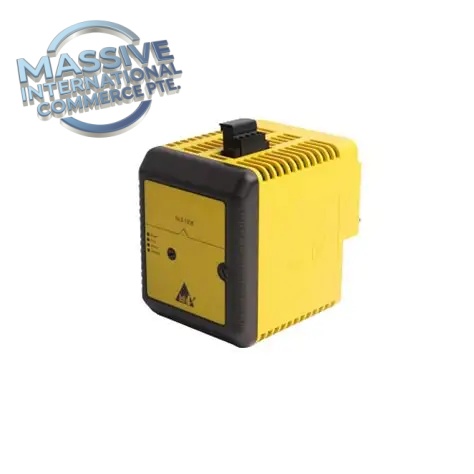

The Emerson KJ2221X1‑BA1 (VS6002, alternate part number 12P3232X132) is a SISNet safety network repeater module for Emerson DeltaV SIS safety instrumented system. It regenerates, isolates and extends the SISNet safety bus communication signals between DeltaV SLS logic solvers and distributed SIS I/O nodes. The repeater boosts signal integrity over long cable runs, isolates network segments to limit fault propagation and expands the maximum distance and node quantity of the SIS safety network. Equipped with LED diagnostic indicators and continuous internal health monitoring, it maintains deterministic safety communication required for ESD, fire & gas and burner management safety loops. This unit has ISA G3 conformal coating for corrosive plant environments and is widely stocked as critical spare in refineries, petrochemical, chemical and power plants.
Technical Specifications
| Parameter | Details |
|---|---|
| Part Number | KJ2221X1‑BA1 (VS6002 / 12P3232X132) |
| Manufacturer | Emerson |
| Product Category | SISNet Safety Network Repeater Module |
| Platform | DeltaV SIS S-series |
| Power Supply | 24 VDC ±20%, max 300mA |
| Network Interface | SISNet safety bus, dual port signal regeneration and isolation |
| Status Indicators | LED for power, network activity, fault alarm |
| Enclosure | IP20, rack mount for control cabinet |
| Environmental Rating | ISA G3 conformal coated PCB |
| Diagnostics | Continuous module self-test, link fault detection, network segment monitoring |
| Operating Temperature | -20°C ~ +55°C |
| Storage Temperature | -40°C ~ +85°C |
| Relative Humidity | 5% ~ 95% non-condensing |
| Approximate Weight | 0.5 kg |
Compliance & Certifications
- TÜV certified for IEC 61508 SIL3 capable in approved DeltaV SIS architecture
- FM, CSA, ATEX / IECEx Class I Div 2 hazardous location approvals
- CE mark for EMC and Low Voltage Directive
- RoHS compliant
- Factory full network communication and diagnostic functional test before shipment
Storage & Installation Guidelines
Storage Requirements
- Store in dry temperature-controlled warehouse; recommended ambient 10°C ~30°C, RH <70% non-condensing
- Remain sealed inside original anti-static packaging before installation
- Protect from mechanical shock, continuous vibration, dust and corrosive vapors
- ESD wristband required when unpacking and handling PCB assemblies
Installation Instructions
- Perform lock-out/tag-out for SIS safety network and control power before module replacement
- Wear ESD protective gear to avoid electrostatic circuit damage
- Insert module into designated DeltaV SIS rack slot and lock securely to backplane
- Terminate SISNet safety bus cables to repeater ports; separate safety communication wiring from high-power cables
- Connect 24VDC auxiliary power to the module terminal
- Restore rack power, verify LED power and link status indicators
- Validate SISNet communication between logic solver and remote SIS I/O nodes, check segment isolation
- Commissioning must be completed by certified Emerson SIS safety technicians
FAQ
Q: What system is KJ2221X1‑BA1 used for? A: It is the SISNet repeater for Emerson DeltaV SIS safety instrumented system, dedicated to safety bus signal regeneration and network extension.
Q: What is the main function of this repeater? A: It regenerates SISNet communication signals, extends network transmission distance and isolates network segments to prevent fault spreading across safety bus.
Q: Can this module support SIL3 safety application? A: TÜV certified SIL3 capable when deployed within the official approved DeltaV SIS system configuration.
Q: Does KJ2221X1‑BA1 provide diagnostic functions? A: Yes, built-in continuous diagnostics and LED status indicators monitor module health, link status and network faults.
Q: What warranty is available? A: Standard 12-month warranty applies for fully tested modules operated under rated normal operating service conditions.
