Description
At-A-Glance Executive Brief

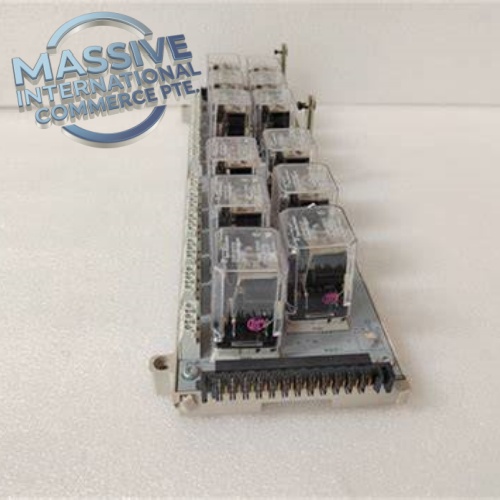

- Model: 1C31222G01
- Brand: Emerson Ovation
- Part Type: 8-channel Relay Output Personality Base
- Lifecycle status: Obsolete OEM, stocked new surplus and refurbished
- System compatibility: Ovation standard I/O rack, mates with 1C31219G01 E-Module
- Core hardware: Built-in electromechanical relays, field terminals and circuit fuses
Technical Introduction
Plant interlock circuits often require galvanic isolation between low-voltage DCS logic and high voltage field loads. This relay personality base works with the 1C31219G01 relay electronics module to provide 8 channels of isolated relay contact outputs. The personality base contains the physical relay components, field wiring terminals and per-channel fuses. When the paired E-module receives logic commands from the Ovation controller, it energizes the coils on this base, switching the relay contacts to actuate external loads. It provides electrical isolation between the Ovation backplane logic and field side power circuits for trip logic, alarm annunciation and auxiliary equipment interlocks.
Engineer’s Takeaway This is an 8-channel personality base, different from the 16-channel 1C31223G01. It must be paired with the 1C31219G01 relay E-module. Installing it with other E-modules will not activate relay channels or fuse diagnostics.
Core Technical Specifications
| Parameter | Value |
|---|---|
| Model | 1C31222G01 |
| Module Type | 8-Channel Relay Output Personality Base |
| Compatible E-Module | 1C31219G01 Relay Output Electronics Module |
| Relay Contact Type | 1 Form C electromechanical relay |
| Mounting | Ovation I/O rack base, installed before E-module |
| Field Circuit | Per-channel fuse protection |
| Function | Relay switching, field terminal interface, blown fuse sensing |
Field Engineer’s Tech Notes
- Electromechanical relay contacts degrade with high cycle counts. Do not use these channels for fast pulse applications; reserve for steady-state interlock, alarm and trip duty.
- Verify fuse rating matches field load before applying power. A blown fuse will trigger diagnostic alarm to Ovation only if fuse detection is enabled in the point configuration.
Adaptive QA & Testing Protocol
Each unit undergoes bench testing paired with 1C31219G01 electronics module. We send discrete on/off commands and verify actuation of all 8 relay channels. Blown fuse detection is validated by simulating fuse failure condition. Continuity and insulation resistance testing are performed on relay contact terminals. Backplane handshake confirms the E-module correctly identifies the personality base. Pin inspection checks for bent or corroded edge connectors. Test reports and short validation videos are available upon request.
Buyer’s FAQ
Q: Can Emerson 1C31222G01 replace 1C31223G01 personality base? A: They are not interchangeable. 1C31222G01 is 8-channel while 1C31223G01 is 16-channel. Channel count, relay layout and terminal pinout differ.
Q: What warranty applies to new surplus or refurbished Emerson 1C31222G01? A: All units carry a 12-month hardware warranty. Warranty excludes contact burnout from overload, shorted field wiring, or pairing with incompatible E-modules.
Q: Are relays pre-installed on 1C31222G01? A: Yes, the electromechanical relays and field fuses are mounted directly on this personality base assembly.
Q: What lead time applies to this obsolete Ovation relay personality base? A: Stocked units ship within 1–3 working days. If inventory is depleted, sourcing lead time may extend to 4–8 weeks based on surplus availability.
