Description
Product Overview

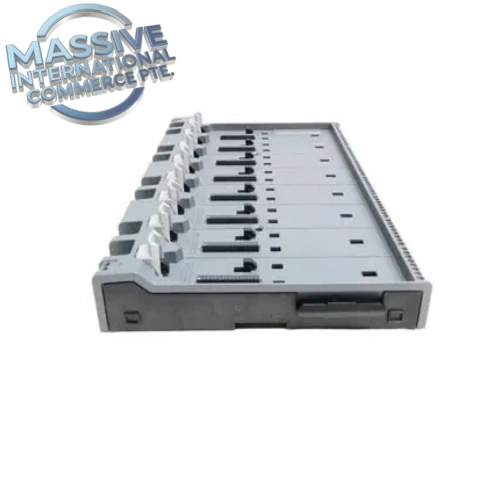

The Emerson SE4050E0C0 (alternate part number KJ4005X1-BE1) is an 8-wide I/O interface carrier for DeltaV S-series distributed control system. It acts as the passive I/O rack chassis that hosts up to 8 DeltaV S-series I/O modules, providing backplane bus routing, integrated power distribution and shielding bar for noise suppression. This version comes pre-equipped with 8 power buss plugs and a carrier shield bar, supporting both simplex and redundant I/O cards. Widely deployed in chemical, petrochemical, oil & gas, power and pulp & paper plants for DeltaV DCS process control cabinets.
Technical Specifications
| Item | Parameter |
|---|---|
| Part Number | SE4050E0C0 (KJ4005X1-BE1) |
| Manufacturer | Emerson DeltaV |
| Series | DeltaV S-series DCS |
| Product Type | 8-wide I/O Interface Carrier / Chassis |
| Slot Count | 8 I/O module slots |
| Power Interface | 8 integrated power buss plugs |
| Accessories | Built-in carrier shield bar for EMC noise shielding |
| Mounting | DIN rail mount |
| Bus Type | DeltaV S-series I/O backplane bus |
| Dimensions | 348 × 229 mm |
| Weight | ~0.5 kg |
| Enclosure Rating | IP20 (cabinet installation only) |
| Operating Temp | 0°C ~ +60°C |
| Storage Temp | -40°C ~ +85°C |
| Humidity | 5–95% non-condensing |
| Compatibility | All DeltaV S-series I/O modules |
| Hot Swap Support | Supports hot swap of individual I/O modules installed on carrier; carrier itself requires power down for replacement |
Key Features
- 8-slot S-series I/O carrier chassis, accommodates up to 8 DeltaV I/O modules, mixing analog input, analog output, digital I/O and specialty cards in the same rack.
- Integrated power distribution with 8 power buss plugs, delivers stable backplane power to each I/O slot and simplifies cabinet wiring layout.
- Equipped with dedicated carrier shield bar, optimizes EMC performance, suppresses EMI interference and reduces ground loop noise for low-level process signals.
- DIN rail snap-on modular design, supports online expansion to add extra I/O carriers via extender cable for large DCS I/O cabinets.
- Passive backplane carrier without active electronic logic, high reliability and low failure rate for continuous process control applications.
- Supports simplex or redundant I/O module configurations, suitable for both standard and SIL-rated safety related DCS control loops.
- Works seamlessly with DeltaV controller hardware and DeltaV Explorer configuration software for system commissioning and diagnostics.
- Standard spare replacement chassis for legacy and new DeltaV S-series DCS installations.
Installation Notes
- Mount SE4050E0C0 carrier securely on DIN rail inside control cabinet, lock DIN rail clips to prevent sliding under vibration.
- Install I/O modules sequentially into carrier slots, ensure each module latches fully and makes solid backplane contact.
- Use shield bar to properly bond cable shields; separate low-level I/O signal wiring from high voltage AC power cables to minimize EMI.
- Confirm 24VDC rack power polarity before energizing the carrier and I/O modules.
- Follow lockout/tagout procedures before removing the carrier chassis; full rack power shutdown is mandatory for carrier replacement.
- Backup DeltaV project database before chassis maintenance or I/O module replacement.
- After installation, perform hardware recognition scan in DeltaV Explorer and execute full I/O loop test before returning DCS online.
Testing Procedure
- Visual inspection: Inspect carrier housing, backplane connector traces, DIN rail clips, shield bar and power plugs for cracks, burnt marks or corrosion.
- Mount carrier on DIN rail, insert compatible DeltaV S-series I/O modules into slots and lock module latches.
- Connect 24VDC rack power supply, apply power and observe module LED status indicators.
- Launch DeltaV Explorer to scan hardware, verify all installed I/O modules are detected correctly by DCS controller.
- Run channel loop tests on analog and digital I/O modules, validate data communication between I/O cards and controller.
- Check system diagnostic alarms to confirm no backplane bus or power distribution faults.
- Save DeltaV project backup, record hardware commissioning test data and tag spare carrier for inventory.
FAQ
Q: What is Emerson SE4050E0C0 used for? A: It is an 8-wide I/O carrier chassis for DeltaV S-series DCS, hosting up to 8 S-series I/O modules and providing backplane bus, power distribution and shielding.
Q: What is the alternate part number for SE4050E0C0? A: KJ4005X1-BE1.
Q: Can the SE4050E0C0 carrier itself be hot swapped? A: No. The carrier chassis must be powered down for replacement; individual I/O modules on the carrier support hot swap.
Q: What differentiates SE4050E0C0 from SE4050E1C0? A: SE4050E0C0 is base 8-wide carrier with shield bar only; SE4050E1C0 includes an additional 1.1m carrier extender cable.
