Description
Product Overview

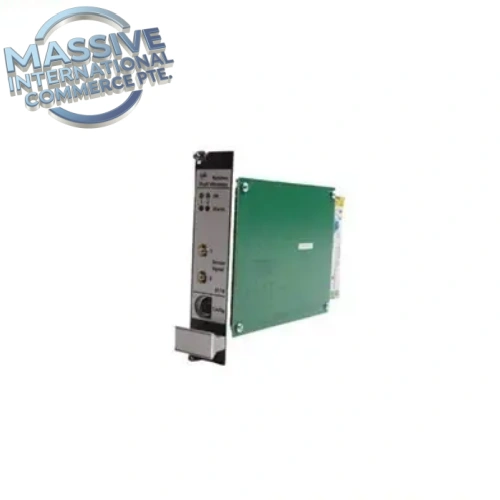

The Emerson A6140 (EPRO) is a 3U single-slot plug-in TSI protection module for AMS 6500 / CSI 6500 Machinery Health Monitor rack system. This dual-channel accelerometer monitor measures absolute bearing housing vibration from piezoelectric accelerometers. It integrates signal conditioning and integration to output vibration velocity for turbomachinery protection. Deployed on steam turbines, gas turbines, centrifugal compressors and large pumps across power generation, oil & gas and petrochemical industries. Fully compliant with API 670 for critical machinery protection, it provides configurable alarm and trip relay outputs for safety interlock.
Technical Specifications
| Item | Parameter |
|---|---|
| Part Number | A6140 |
| Manufacturer | Emerson Automation Solutions (EPRO) |
| Series | AMS 6500 / CSI 6500 |
| Product Type | Dual Channel Accelerometer Vibration Monitor |
| Channels | 2 independent galvanically isolated input channels |
| Supported Sensors | EPRO PR9270, PR9271, PR9272 piezoelectric accelerometers |
| Measurement Parameter | Vibration velocity (mm/s RMS or in/s RMS, integrated from acceleration) |
| Frequency Band | 1 Hz ~ 10 kHz, adjustable high/low pass filters |
| Sensor Excitation | 24 VDC constant current excitation for IEPE accelerometers |
| Accuracy | ±1% of full scale |
| Galvanic Isolation | Channel-to-backplane galvanic isolation |
| Power Supply | 24 VDC ±10%, max 6W |
| Form Factor | 3U Eurocard single slot, DIN41494 |
| Dimensions | 30(W) ×128.4(H) ×160(D) mm |
| Weight | ~300g |
| Analog Output | 0/4–20mA or 0–10V buffered proportional output, front and rear terminals |
| Front Panel | SMB buffered raw signal, LED health / alarm / trip indicators |
| Operating Temp | 0°C ~ +60°C |
| Storage Temp | -40°C ~ +85°C |
| Humidity | 5–95% non-condensing |
| Certifications | CE, UL, API 670 compliant |
| Hot Swap | Yes |
Key Features
- Dual independent input channels for absolute bearing housing vibration monitoring, designed for IEPE piezoelectric accelerometers. The module internally integrates acceleration signal into velocity for machinery protection.
- Built-in constant current excitation for IEPE accelerometers, eliminating external signal conditioning hardware.
- Continuous onboard diagnostics for transducer open circuit, short circuit, cable faults and module hardware failure.
- Configurable Alert and Danger trip thresholds with adjustable time delay and hysteresis, reducing nuisance trips during machine startup and load transients.
- Buffered analog outputs (4–20mA / 0–10V) on both front and rear connectors, transmitting real-time vibration values to DCS/SCADA systems.
- Front-panel SMB test port for raw accelerometer signal capture with oscilloscopes without disturbing field wiring.
- Hot-swappable 3U Eurocard design, allowing online replacement under controlled maintenance procedures without rack shutdown.
- Configuration, calibration and diagnostics via AMS 6500 configuration software, password protected to prevent unauthorized modification of protection setpoints.
Installation Notes
- Install only in Emerson AMS6500 19-inch rack, verify firmware compatibility with existing rack processor.
- Pair with EPRO PR9270 / PR9271 / PR9272 piezoelectric IEPE accelerometers and matched sensor cables.
- Separate low-level accelerometer signal wiring from high-power AC cables to minimize EMI interference.
- Wear ESD wrist strap during handling to avoid static damage to PCB electronics.
- Follow plant lockout/tagout procedures even for hot-swap maintenance work.
- After module replacement, perform sensor calibration, loop test and vibration protection proof test before returning rotating equipment online.
- Set alarm and trip parameters strictly following machine OEM protection specifications.
Testing Procedure
- Visual inspection: Inspect front panel LEDs, PCB and edge connector for scratches, bent pins or corrosion.
- Insert A6140 module into AMS6500 rack, apply 24VDC rack power and confirm power-up self-test passes.
- Connect accelerometer signal simulator to both input channels.
- Simulate different acceleration/vibration velocity values, verify readings inside AMS6500 software and analog output terminals.
- Simulate transducer open/short faults to validate module diagnostic alarms trigger correctly.
- Test alert and danger trip relay functions, verify threshold hysteresis and time delay settings.
- Save configuration backup, record calibration data and tag module for spare inventory.
FAQ
Q: What is Emerson A6140 used for? A: It is dual-channel TSI monitor for absolute bearing housing vibration, using piezoelectric accelerometers; it integrates acceleration to velocity for turbomachinery protection.
Q: What sensors work with A6140? A: EPRO PR9270, PR9271, PR9272 IEPE piezoelectric accelerometers.
Q: Is A6140 hot swappable? A: Yes, hot swap is supported on AMS6500 racks under approved site maintenance procedures.
Q: What is the difference between A6140 and A6120? A: A6140 uses piezoelectric accelerometers; A6120 is for electro-dynamic velocity sensors, both measure absolute casing vibration.
