Emerson 3A99266G01 | Ovation LIOTP Local I/O Transition Panel

Description

At-A-Glance Executive Brief

• Model: 3A99266G01
• Brand: Emerson Ovation (Westinghouse)
• Part Type: LIOTP Local Input Output Transition Panel（本地 I/O 转接面板）
• Lifecycle status: Obsolete OEM, stocked new surplus and refurbished
• System compatibility: Ovation DCS local I/O rack
• Core function: Signal transition interface board, acts as the bridge between Ovation I/O backplane and field instrument wiring. It uses D-Sub connectors to connect to I/O rack internal bus, and terminal blocks for field analog/digital signal termination, separates cabinet internal short backplane wiring and long field cables, simplifies wiring, maintenance and signal isolation.

Technical Introduction

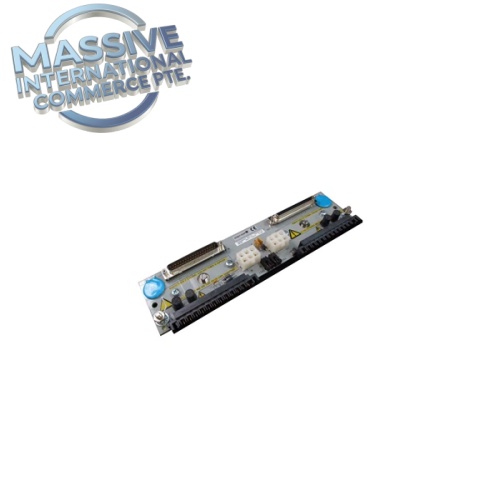

The 3A99266G01 LIOTP Local I/O Transition Panel is a signal termination and transition board for Ovation DCS local I/O cabinet. It provides D-sub high-density connectors for internal connection to Ovation I/O modules, and screw terminal blocks for field wiring termination. It supports analog signals (4-20mA, voltage) and discrete DI/DO signals. It separates the fragile rack backplane connector from field wiring, protecting I/O electronics module from field wiring damage, and makes field cable inspection, loop testing and maintenance easier. Widely used in power plant boiler, turbine and BOP local I/O cabinets.

Engineer’s Takeaway This is transition wiring panel, not signal processing EMOD/PMOD card, it has no signal acquisition or calculation function. It only routes and terminates signals. Need to match the I/O rack and module wiring definition. When replacing, you need to transfer all related I/O points to manual mode to avoid unexpected actuator/valve action.

Core Technical Specifications

Please refer to the OEM datasheet for complete environmental tolerances.

Field Engineer’s Tech Notes

• Before replacement, transfer all associated control loops to manual and implement lock-out/tag-out to prevent unexpected equipment action.
• Label all field terminals before disassembly to avoid miswiring during reinstallation.
• Inspect D-sub connector pins and terminal block for burn marks, corrosion or loose terminals.
• After installation, verify continuity of each signal circuit, check all I/O point status on Ovation HMI.
• Keep analog signal cables as shielded twisted pair and separate from high-power AC cables to reduce noise interference.

Adaptive QA & Testing Protocol

Each unit undergoes continuity and insulation testing for all signal paths. D-sub connector and terminal block wiring routing are verified. Visual inspection checks PCB, connector integrity and component condition. Test reports and short validation videos are available upon request.

Buyer’s FAQ

Q: What is 3A99266G01? A: It is Ovation LIOTP Local I/O Transition Panel, a wiring transition terminal board, used to connect I/O rack internal bus and field instrument cables. It does not process signals.

Q: What warranty applies to new surplus or refurbished Emerson 3A99266G01? A: All units carry a 12-month hardware warranty. Warranty excludes damage from overvoltage, field surge, miswiring and corrosion.

Q: Does this panel have signal acquisition function? A: No, it is only wiring transition and termination board. Signal processing is completed by EMOD+PMOD I/O modules.

Q: What lead time applies to this obsolete Ovation LIOTP transition panel? A: Stocked units ship within 1–3 working days. If out of stock, sourcing lead time can extend to 4–8 weeks subject to inventory availability.
