Description
At-A-Glance Executive Brief

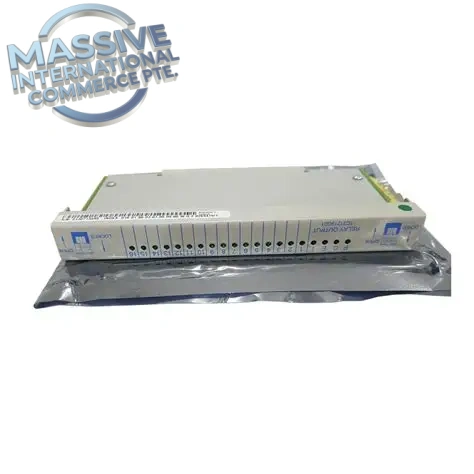

- Model: 1C31219G01
- Brand: Emerson Ovation
- Part Type: 16-channel Relay Output Electronics Module
- Lifecycle status: Obsolete OEM, stocked new surplus and refurbished
- System compatibility: Ovation standard I/O rack platform
- Required accessory: Matching relay personality base (1C31223G01)
- Function: Electromechanical relay drive, configurable blown fuse detection
Technical Introduction
Solid-state discrete outputs cannot always meet high-current or high-voltage isolation requirements for plant interlock circuits. This relay output electronics module receives on/off logic commands over the Ovation backplane and drives electromechanical relays located on the paired personality base. It supports 16 independent relay channels and includes configurable blown fuse detection to identify failed field circuit protection. The relay contacts provide galvanic isolation between DCS low-voltage control logic and high-power field loads, ideal for motor starters, circuit breakers, alarm horns and interlock trip circuits.
Engineer’s Takeaway This E-module does not contain the physical relay contacts. All relay hardware, fuses and field terminals reside on the personality base. Mismatched base hardware disables fuse diagnostics and may limit usable channel count even if the E-module powers up.
Core Technical Specifications
| Parameter | Value |
|---|---|
| Model | 1C31219G01 |
| Module Type | Relay Output Electronics Module |
| Channel Count | 16 (with compatible G2R personality base) |
| Backplane Aux Supply | 18VDC to 25.5VDC |
| Main Power Consumption | 1.88W typical, max 2.5W |
| Auxiliary Power Consumption | 0.3W typical, max 0.35W |
| Diagnostics | Configurable blown fuse detection |
| Mounting | Ovation I/O rack, paired with 1C31223G01 relay personality base |
| Operating Temperature | 0°C to 60°C |
Field Engineer’s Tech Notes
- Electromechanical relays have limited cycle life. Frequent high-speed cycling will wear contact surfaces, leading to pitting, contact resistance rise and intermittent trip failures. Reserve this module for steady-state interlock and alarm duties, not fast pulse switching.
- The personality base contains field fuses. When fuse detection is enabled, a blown fuse will trigger a diagnostic alarm to the Ovation controller. Confirm fuse ratings match field load current before energizing circuits.
Adaptive QA & Testing Protocol
Each unit undergoes bench testing paired with compatible 1C31223G01 personality base. We send discrete on/off commands and verify relay actuation for all 16 channels. Blown fuse detection is validated by simulating blown fuse conditions. Backplane communication handshake confirms rack registration and diagnostic alarm reporting. Edge connector pin continuity checks identify bent or corroded contacts. Test reports and short validation videos are available upon request.
Buyer’s FAQ
Q: Can Emerson 1C31219G01 replace solid-state DO modules like 1C31122G01? A: It fits the same Ovation rack slot, but it drives mechanical relays and has different personality base requirements. Confirm base compatibility and update I/O point configuration; relay contact ratings must match your field load.
Q: What warranty applies to new surplus or refurbished Emerson 1C31219G01? A: All units carry a 12-month hardware warranty. Warranty excludes damage from overloads, overcurrent on relay contacts, or pairing with incompatible personality bases.
Q: Are the relay contacts built into the 1C31219G01 E-module? A: No. Relays, fuses and field wiring terminals are mounted on the personality base 1C31223G01.
Q: What lead time applies to this obsolete Ovation relay output module? A: Stocked units ship within 1–3 working days. If inventory is depleted, sourcing lead time may extend to 4–8 weeks based on surplus availability.
