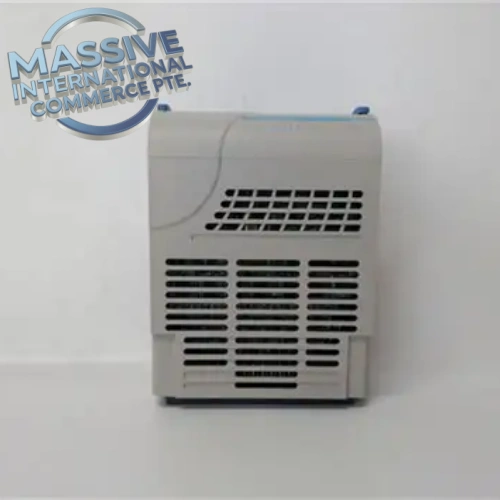

Emerson 1C31194G02 | Legacy Ovation 8 Channel Analog Output Valve Positioner Electronic Module

Description

At-A-Glance Executive Brief

• Model: 1C31194G02
• Brand: Emerson Ovation (Westinghouse)
• Part Type: Valve Positioner Electronics Module (EMOD)
• Lifecycle status: Obsolete OEM, stocked new surplus and refurbished
• System compatibility: Ovation split I/O architecture, pairs with 1C31197G05 HART AO PMOD
• Channel: 8-channel 4–20mA analog output with HART communication capability
• Core function: Electronic processing module (EMOD), receives control commands from Ovation DPU, performs digital signal conversion, drives the PMOD to output 4-20mA control signal for smart HART valve positioners, handles HART digital communication and loop fault diagnostics for modulating control valves.

Technical Introduction

The 1C31194G02 is the Valve Positioner Electronics Module (EMOD) for Ovation split I/O system. It is the signal processing card that works together with personality module 1C31197G05 to form a complete HART analog output channel. This EMOD communicates with the DPU over the Ovation backplane bus, converts digital setpoint values to analog control signals, and manages HART bidirectional digital communication. It reads HART device diagnostics, valve travel, alarms and instrument tag information from field smart positioners. It supports loop fault detection such as open circuit or short circuit. Widely used for boiler feedwater, steam and process modulating valves in thermal power and chemical plants.

Engineer’s Takeaway This is EMOD (electronics module), not PMOD. It must pair with 1C31197G05 personality module. Different revisions (G02/G03) have firmware and hardware differences, they are not fully interchangeable without point database review. It supports HART, so loop resistance calculation is required for each valve loop.

Core Technical Specifications

Please refer to the OEM datasheet for complete environmental tolerances.

Field Engineer’s Tech Notes

• Before replacement, switch the control valve to manual and implement lock-out/tag-out to prevent unexpected valve movement.
• Verify EMOD revision and confirm paired PMOD is 1C31197G05; mismatched PMOD/EMOD will cause HART communication failure.
• Use shielded twisted pair for 4-20mA/HART wiring. Keep analog cables separated from high voltage AC power cables.
• After installation, download I/O configuration, perform 4-20mA calibration and HART polling test for all 8 channels.
• Inspect backplane connector for bent pins or oxidation. Check loop resistance to meet HART requirement.

Adaptive QA & Testing Protocol

Each unit undergoes bench testing paired with 1C31197G05 PMOD. Backplane bus communication test verifies DPU command reception. 4-20mA output accuracy is validated across full range. HART communication test simulates smart valve positioner for reading device tags and diagnostic alarms. Module self-test and loop fault detection function are verified. Edge connector visual inspection checks for pin damage and conformal coating integrity. Test reports and short validation videos are available upon request.

Buyer’s FAQ

Q: What PMOD pairs with 1C31194G02? A: It must be matched with 1C31197G05 HART AO personality module.

Q: What warranty applies to new surplus or refurbished Emerson 1C31194G02? A: All units carry a 12-month hardware warranty. Warranty excludes damage caused by field overvoltage, short circuit, mismatched PMOD and surge damage.

Q: What is difference between 1C31194G02 and 1C31194G03? A: They are different revision EMODs for valve positioner. Hardware/firmware differs, cannot directly swap without system configuration review.

Q: What lead time applies to this obsolete Ovation valve positioner EMOD? A: Stocked units ship within 1–3 working days. If out of stock, sourcing lead time can extend to 4–8 weeks subject to inventory availability.
