Product Overview

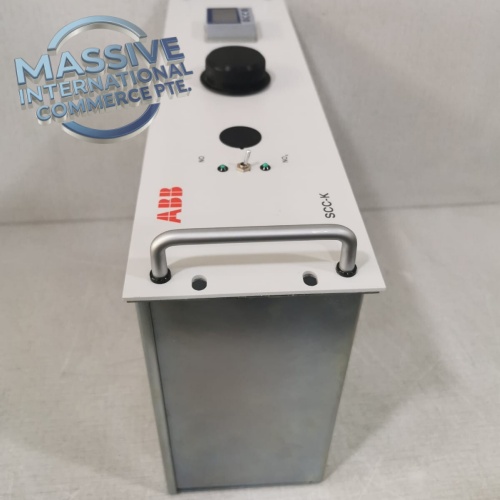

The ABB SCC-K 23093-4-3KXG801000U0100 is a thermal converter for sample gas conditioning systems, equipped with quartz-glass reaction tube, 240 VAC power supply. It belongs to ABB Measurement & Analytics gas analysis product portfolio, mainly used for thermal conversion of sample gas in continuous emission monitoring systems (CEMS). It converts target gas components for measurement by gas analyzers, widely applied in power plant flue gas monitoring, waste incineration, petrochemical and industrial emission measurement applications. This unit is critical sample pretreatment component for ABB gas analytical racks.
Technical Specifications
| Item | Parameter |
|---|---|
| Part Number | SCC-K 23093-4-3KXG801000U0100 |
| Manufacturer | ABB Measurement & Analytics |
| Product Type | Thermal Converter (Quartz-glass reaction tube) |
| Supply Voltage | 240 VAC, 48~62 Hz |
| Gas Wetted Material | Quartz glass, PTFE, PVDF, PFA |
| Nominal Sample Gas Flow | 60 L/h, Max 120 L/h |
| Response Time T90 | ≤10 sec @60 L/h |
| Gas Port Connection | 6 mm tube, Swagelok clamping ring fitting |
| Mounting | Panel / cabinet mount |
| Operating Temp | Ambient: 0 ~ +50°C |
| Storage Temp | -40°C ~ +85°C |
| Humidity | 5–95% non-condensing |
| Application | CEMS, flue gas sample pretreatment, thermal gas conversion |
| Related Series | SCC-K converter family |
| Hot Swap | Not applicable (gas pretreatment assembly) |
Key Features
- Thermal converter design with quartz glass reaction tube, high temperature resistance and excellent corrosion resistance for flue gas sample conversion.
- 240VAC heating control for stable thermal reaction of sample gas, ensures consistent conversion efficiency for analytical measurement.
- Wetted parts adopt high-performance inert materials (quartz, PTFE, PFA), suitable for corrosive flue gas environment.
- Fast response time (T90 ≤10s) under standard flow rate, guarantees real-time gas analysis.
- Compact structure for installation inside gas analysis cabinet; standard 6mm Swagelok gas fittings for simple pipeline connection.
- Used as core pretreatment component matching ABB gas analyzers in continuous emission monitoring systems.
- Strictly tested for industrial continuous emission monitoring, long service life under 24/7 continuous operation.
- Standard ABB original spare part for maintenance replacement of existing SCC-K sample conditioning racks.
Installation Notes
- Mount SCC-K converter inside analytical cabinet, reserve sufficient ventilation space for heat dissipation.
- Connect sample gas pipeline with 6mm tube, tighten Swagelok fittings properly and perform leak test after installation.
- Separate sample gas tubing from high voltage power wiring to avoid interference and heat impact.
- Confirm power supply is 240VAC before power on, do not apply wrong voltage.
- Follow lockout/tagout procedure before opening cabinet or replacing converter.
- After installation, complete gas tightness test, flow setting and gas conversion performance verification.
- Use only filtered and conditioned sample gas to prevent dust contamination of quartz reaction tube.
Testing Procedure
- Visual inspection: Check housing, gas fittings, wiring terminals for damage, cracks and corrosion.
- Mechanical installation and tubing connection, perform pressure leak test on gas circuit.
- Apply 240VAC power supply, warm up converter to working temperature.
- Set sample gas flow to rated 60 L/h, verify stable flow and temperature.
- Feed calibration gas to test conversion efficiency, validate analyzer output consistency.
- Check response time T90 by switching gas samples.
- Record leak test, flow and conversion performance data, tag unit for spare inventory.
FAQ
Q: What is ABB SCC-K 23093-4-3KXG801000U0100 used for? A: It is an ABB thermal converter with quartz glass reaction tube, used in CEMS sample gas conditioning rack for thermal conversion of flue gas before gas analyzer measurement.
Q: What voltage is this model? A: 240 VAC. The counterpart 23093-4-3KXG801001U0100 is 120VAC version.
Q: What is the difference between quartz glass version and PVDF cock version SCC-K? A: This quartz tube version is thermal converter; PVDF cock version is NO2/NO converter for nitrogen dioxide reduction.
Q: What sample gas flow range does it support? A: Nominal flow 60 L/h, maximum flow 120 L/h.
