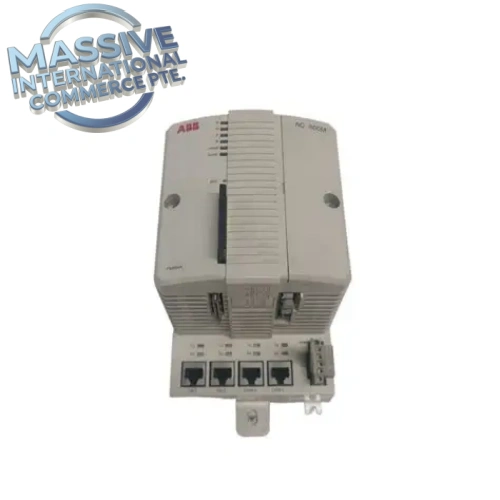

ABB PM862K02 | Dual CPU Redundant AC800M Controller Kit for Process Automation

Description

At-A-Glance Executive Brief

• Model: PM862K02, part number 3BSE081636R1
• Brand: ABB
• Part Type: Duplex redundant processor unit (complete redundant CPU kit) for AC800M / System800xA
• Lifecycle status: Legacy DCS redundant controller; stocked for brownfield ABB 800xA retrofits
• System compatibility: ABB System800xA 6.0+, AC800M, S800 I/O, ModuleBus, CEX-bus; executes PID, sequence logic, communicates process data and alarms to DCS HMI
• Weight: ~2.4 kg (complete kit)

Technical Introduction

Failure of PM862K02 will stop process control for its assigned control domain. The duplex kit supports bumpless automatic switchover (max 10ms) to standby CPU upon primary side fault. If both CPUs fail, continuous regulation, sequence and interlock logic stop; DCS triggers critical controller fault alarms and tags go bad quality, potentially leading to process shutdown. The ABB PM862K02 is a full redundant processor kit for AC800M controller under ABB System800xA platform. This kit includes two PM862 CPU modules, two TP830 baseplates, TB807 terminators, CEX-bus and RCU-Link cables plus backup batteries for redundancy interconnection. Powered by MPC866 67MHz processor with 32MB total RAM (23.52MB application available memory) and on-board flash firmware storage. Each baseplate carries dual RJ45 Ethernet control network ports, RS232 and isolated serial COM ports for engineering tool connection. It communicates with S800 remote I/O via ModuleBus, supports hot redundancy with bumpless switchover, runs IEC61131-3 control applications including PID, batch sequences and interlocks. Onboard real-time clock and backup battery preserve application data during power loss. Process values, event logs and hardware diagnostics are transmitted to 800xA operator HMI and asset monitoring systems. Widely deployed in power, pulp & paper, chemical and oil & gas plants. Plant reliability teams stock PM862K02 redundant kits for planned outage controller replacement.

• Best Suited For
  • ABB System800xA / AC800M DCS control racks
  • High availability redundant process control, PID regulation, interlock and sequence control with S800 I/O
  • Direct drop-in replacement for existing ABB PM862K02 duplex processor kit hardware

Core Technical Specifications

Field Engineer’s Tech Notes

• Confirm System800xA version, Compact Control Builder revision and S800 I/O compatibility before replacement; PM862K02 only supports 800xA 6.0 and above.
• This is a critical process controller. Implement control bypass and manual handover before replacement to avoid process upset.
• Inspect CEX-bus and RCU-Link interconnection cables; poor cable connections are a common cause of redundancy switchover faults.
• After replacement, download the control project, verify primary/standby synchronization, execute redundancy switchover test, validate all control loops and alarm timestamps, then clear fault alarms before removing bypasses.
• ESD protection required while handling CPU, baseplate and connectors.
• Test backup battery regularly; depleted battery will lose application retention during power outage.

Adaptive QA & Testing Protocol

Each PM862K02 redundant kit is bench tested on ABB 800xA / AC800M test rack. We verify dual 24VDC power operation, Ethernet and serial communication, ModuleBus I/O connectivity. Bumpless redundancy switchover between primary and standby CPU is validated. Application download/execution, battery data retention and full self-diagnostic functions are tested. Front panel LED indicators, watchdog and fault reporting are checked. CPUs, baseplates, cables and connectors are visually inspected. Full test reports or bench test video clips are available upon request.

Buyer’s FAQ

Q: What is ABB PM862K02 used for? A: It is a complete duplex redundant processor kit for ABB AC800M / System800xA DCS, used to run PID, sequence and interlock control with S800 remote I/O and bumpless redundancy switchover.

Q: What warranty applies for refurbished and NSFP PM862K02? A: Refurbished and NSFP units carry a 12-month hardware warranty. Coverage excludes ESD damage, corrupted control application, improper redundancy wiring, network surge and expired backup battery.

Q: What lead time should I expect? A: Stocked units ship 3–7 business days. If inventory is depleted, lead time increases while we source surplus ABB PM862K02 kits.

Q: What is the difference between PM862K01 and PM862K02? A: PM862K01 is simplex single CPU set; PM862K02 is full redundant kit containing two CPUs, baseplates and all required interconnection cables for duplex configuration.
