ABB IDM-96 | Multivariable Digital Indicator

Description

ABB IDM-96 | Multivariable Digital Indicator

Many products are not listed online, please contact us for more available items.

We have 16 shared warehouses worldwide, so kindly note that it may take several hours for us to give you an accurate reply. We will address your inquiries as soon as we can.

Click here to get more.

Product Specs:

Product Model: IDM-96

Product Name: Multivariable Digital Indicator

Display: 3 LED Displays, 3 Digits Each

Measurement Parameters: Voltage, Current, Active Power, Reactive Power, Apparent Power, Power Factor, Frequency, Active Energy and Power Demand

Input Voltage: 0–500 VAC (Line Voltage)

Input Current: 1 A / 5 A

Auxiliary Power Supply: 85–265 VAC / 90–300 VDC

Communication Interface: RS-485 (Optional)

Communication Protocol: Modbus RTU

Accuracy Class: 0.5% (Optional: 0.25% error limit)

Protection Rating: IP50 (Housing), IP10 (Terminals)

Operating Temperature: -20°C to +60°C

Functional Temperature: -25°C to +70°C

Storage Temperature: -40°C to +80°C

Power Consumption: Approx. 7 VA

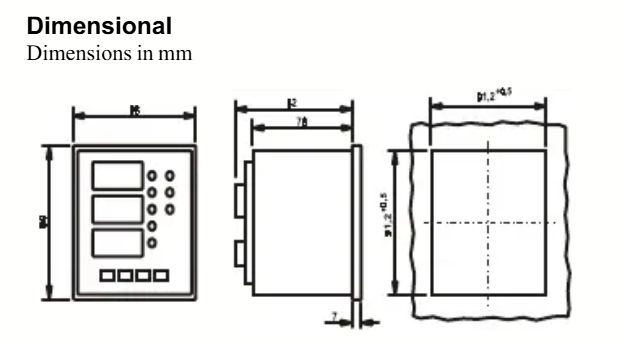

Mounting: Panel Mounting with Clamping Brackets

Housing Material: Flame-Retardant Noril Plastic, UL94 V-0

Electrical Test Voltage: 2.5 kV / 1 min at 60 Hz

Weight: Approx. 0.75 kg

Product Description:

The IDM-96 Multivariable Digital Indicator is a configurable measuring instrument designed for electrical monitoring and industrial power measurement applications. It measures up to 25 electrical variables, including voltage, current, active power, reactive power, apparent power, frequency, power factor, and energy consumption. Featuring three LED displays and front-panel keyboard configuration, the instrument supports flexible monitoring of single-phase and three-phase electrical networks. An optional RS-485 interface with Modbus RTU communication enables integration with industrial automation and supervisory control systems. Its universal AC/DC auxiliary power supply and compact panel-mount design make it suitable for a wide range of electrical measurement applications.
