Description
Unboxing & Physical Snapshot

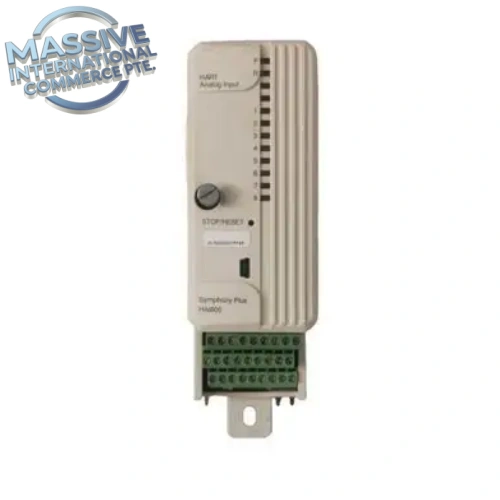

- Brand & Model: ABB HAI805, Symphony Plus SD Series 8-channel HART analog input module
- Physical Dimensions: 9.6 in H × 2.9 in W × 6.7 in D
- Estimated Shipping Weight: 2.16 lb (packaged with anti-static foam and rigid export carton)
- What’s in the Box: HAI805 module assembly, front panel channel status LEDs, factory serial test certificate; ITU805 terminal base, field wiring and cable glands sold separately.
Product Introduction (Structure A: Environmental hook)
This ABB HAI805 belongs to the Symphony Plus SD I/O family, engineered for process control cabinets in power generation, chemical, pulp & paper facilities, where long field wiring runs, electrical surges and cabinet temperature cycling degrade standard analog input cards. It acquires 4–20mA analog signals from HART smart transmitters, converting process measurements for the Symphony Plus DCS controller. Each channel has an independent HART modem to read primary, secondary, tertiary and quaternary variables plus instrument diagnostic data from field devices.
Continuous channel diagnostics monitor loop current, wire break, short circuit and signal overrange, alerting operators before loss of critical process measurements. (Field instrument diagnostic capability is a key requirement during plant safety and metrology audits.) Galvanic isolation and conformal coated PCB protect measurement circuits from common-mode noise and cabinet contaminants.
Core Technical Specifications
| Parameter | Value |
|---|---|
| Platform Compatibility | ABB Symphony Plus DCS, SD Series I/O |
| Module Type | 8-channel HART analog input |
| Input Signal | 4–20mA, loop powered transmitters |
| HART Function | Dedicated HART modem per channel, HART 7 compliant |
| Isolation | Galvanic isolation per channel and between module & backplane |
| Feature | Hot-swap capable, no system shutdown for replacement |
| Required Terminal Unit | ITU805 terminal base (mandatory pairing) |
| Power Supply | 24 VDC from I/O backplane |
| Operating Ambient Temp | 0 °C to +60 °C |
| Storage Temperature | -40 °C to +85 °C |
| Relative Humidity (operating) | 5% to 95%, non-condensing |
| Construction | FR4 conformal-coated PCB, plastic housing with metal locking latch |
Global Compliance & Industry Certifications
- CE Mark
- UL/cUL Listed
- IEC 61131-3 compliant
- NAMUR NE107 compliant diagnostic behavior
- RoHS compliant for qualified production batches
The UL/cUL listing verifies insulation and thermal ratings for continuous operation inside process control cubicles. Verify specific lot certifications with OEM.
Long-Term Storage & Asset Preservation Guide
Store the module sealed inside its original ESD shielding bag and shipping carton in a temperature-stable warehouse. Electrostatic discharge can damage analog ADC circuits and HART modem chips, resulting in noisy readings or lost HART communication after rack insertion.
Inspect spare modules every 24 months. For units stored longer than three years, perform powered pre-test with ITU805 base before installation; aging capacitors may introduce measurement offset errors.
Do not stack heavy rack hardware on the module housing. Mechanical shock can crack PCB traces or damage edge connectors, triggering intermittent channel dropouts.
Physical Installation Prerequisites
Maintain a minimum of 40 mm clearance above and below the populated I/O rack for convection cooling. Elevated cabinet temperature increases analog drift and shortens component service life. Insert the module fully into the ITU805 terminal base and lock the front retaining latch to engage backplane connectors. Use shielded twisted pair wiring for all 4–20mA HART field loops, and bond the cabinet chassis to local protective earth to suppress electrical noise.
Buyer’s FAQ
Q: What HS tariff code applies to ABB HAI805 for cross-border shipments? A: Primary HS classification falls under 853710 for DCS control I/O assemblies. Confirm classification with your customs broker before export filings, as rulings depend on supporting technical documentation.
Q: What country of origin is marked on ABB HAI805? A: Country of Origin is United States. This marking appears on the module nameplate and must be reproduced on commercial invoices for cross-border compliance audits.
Q: Does HAI805 ship preloaded with firmware? A: Base firmware is factory pre-installed. Channel configuration, signal ranges and HART device tags must be configured via Symphony Plus engineering software after physical installation. The module cannot work standalone and must be paired with ITU805 terminal base.
Q: Should I purchase all-risk shipping insurance for this spare ABB HART AI module? A: Yes. Transit shock can create hidden PCB microcracks or damage sensitive analog front-end circuits. Intermittent channel or HART communication faults may only manifest once field transmitters are connected. All-risk insurance covers full replacement value for transit handling defects.
