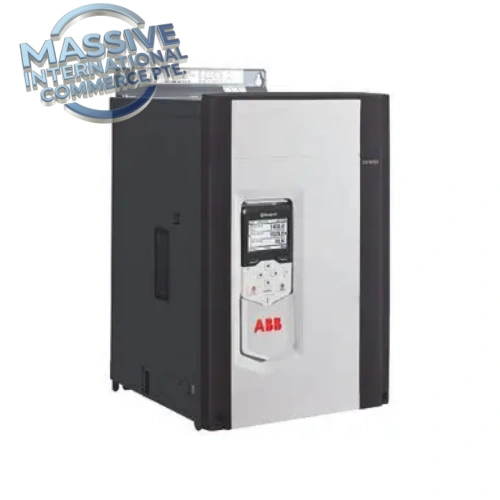

ABB DCS880-S02-0100-05X0 | DCS880-S Four Quadrant DC Drive Module, 100A In Stock

Description

At-A-Glance Executive Brief

• Model: DCS880-S02-0100-05X0
• Brand: ABB
• Part Type: Four-quadrant regenerative thyristor DC drive module (DCS880-S series)
• Lifecycle status: Modern high-performance DC drive; stocked for brownfield retrofits and spare backup for metal processing, paper, mining machinery
• System compatibility: DC shunt-wound motors, ABB control panel, fieldbus options, analog setpoint, status & fault feedback to PLC/DCS/SCADA
• Weight: ~22 kg

Technical Introduction

Failure of DCS880-S02-0100-05X0 stops DC motor speed and torque regulation. The machine load coasts to stop or triggers emergency shutdown; drive fault codes are sent to the host PLC and DCS HMI, halting rolling mills, extruders, winders and heavy processing equipment. The ABB DCS880-S02-0100-05X0 is a four-quadrant regenerative thyristor DC converter built on ABB’s all-compatible drive platform. This S02 variant is 4-Q (regenerative) rated at 100A armature current. It uses fully controlled anti-parallel thyristor bridges to enable both motoring and regenerative braking, returning energy back to the AC supply for high dynamic loads requiring fast torque reversal. It includes built-in field excitation for DC shunt motors and comes with certified Safe Torque Off (STO SIL3/PL e) safety function as standard. The control supports IEC 61131 programming for custom logic, analog speed/torque setpoint and major industrial fieldbus communication. It continuously monitors armature current, field current, temperature, thyristor health and fault diagnostics. Real-time motor speed, torque, alarm events and drive health status are transmitted to DCS/PLC for trending, interlock handling and asset monitoring. Widely deployed on metal rolling lines, paper winders, extruders, test stands and heavy-duty DC machinery. Maintenance teams stock DCS880-S02-0100-05X0 to restore production quickly during downtime.

• Best Suited For
  • Heavy-duty DC shunt motor control for rolling mills, winders, extruders and test benches
  • Four-quadrant regenerative speed/torque regulation with fast torque reversal
  • Direct drop-in replacement for existing ABB DCS880-S02-0100-05X0 DC drive module hardware

Core Technical Specifications

Field Engineer’s Tech Notes

• Confirm drive type code, motor armature & field rating, parameter backup and fieldbus option compatibility before replacement; S01 (2Q) and S02 (4Q) are not interchangeable.
• This is high-power regenerative converter. Lockout/tagout and full DC bus discharge required before opening module covers.
• Verify AC line reactor, fuses, motor insulation and field wiring; ground faults can destroy thyristor power stacks.
• After replacement, restore parameter set, perform no-load commissioning, tune speed/current loops, test 4-Q regenerative braking, validate STO safety function and DCS status signals.
• ESD protection required while handling control boards and option slots.
• Clean cooling air filters and check fan operation periodically; overheating and dust contamination are common failure modes for thyristor DC drives.

Adaptive QA & Testing Protocol

Each DCS880-S02-0100-05X0 drive module is bench tested on ABB DCS880 test rig. We verify three-phase thyristor firing, closed-loop speed and current regulation across operating range. Four-quadrant regenerative braking and torque reversal are validated. STO safety circuit, analog I/O and fieldbus communication interfaces are checked. All protective fault functions (overcurrent, overtemperature, field loss) are simulated. Local control panel operation and fan performance are verified. Power stack, control PCB, terminal blocks and connectors are visually inspected. Full test reports or bench test video clips are available upon request.

Buyer’s FAQ

: What is ABB used for? A: It is a four-quadrant regenerative DCS880-S DC drive module with 100A armature rating, for high dynamic DC shunt motor applications like rolling mills and winders with regenerative braking.

Q: What warranty applies for refurbished and NSFP DCS880-S02-0100-05X0? A: Refurbished and NSFP units carry a 12-month hardware warranty. Coverage excludes ESD damage, motor insulation faults, improper parameter setup, surge damage and clogged cooling paths.

Q: What lead time should I expect? A: Stocked units ship 3–7 business days. If inventory is depleted, lead time increases while we source surplus ABB DCS880-S02-0100-05X0 drives.

Q: What is the difference between -S0? A: DCS880-S01 is 2-quadrant (one direction motoring only); DCS880-S02 is 4-quadrant regenerative, supports forward/reverse motoring and regenerative braking.
