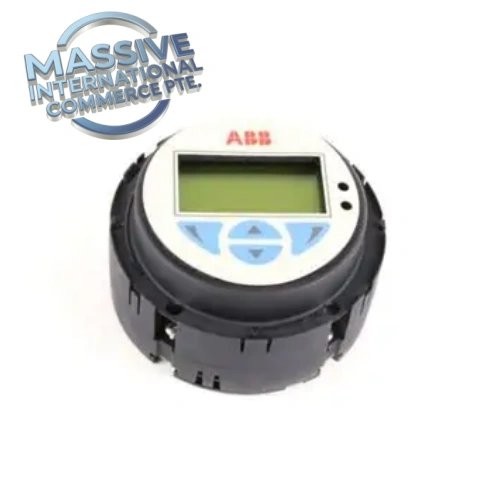

ABB D674A906U01 | Round Insert HART Transmitter Display & Processing Cartridge

Description

At-A-Glance Executive Brief

• Model: D674A906U01
• Brand: ABB
• Part Type: Transmitter electronics cartridge (Cartridge U-high HART / Std. FET 300)
• Lifecycle status: Legacy field transmitter spare cartridge; stocked for brownfield ABB field instrument retrofits
• System compatibility: ABB pressure/flow/level smart transmitters, HART 4–20mA loop to DCS/SCADA
• Weight: 0.25 kg

Technical Introduction

Failure of D674A906U01 causes loss of local display, loss of 4–20mA process signal and HART digital communication, leading to no process variable reading in DCS, inability to calibrate or access transmitter diagnostics. The ABB D674A906U01 is a plug-in round electronics cartridge for ABB smart field transmitters. This integrated cartridge includes LCD local display, push-button interface, HART communication circuitry and FET signal processing electronics. It converts sensor raw measurement into standard 4–20mA analog output with superimposed HART digital data. Operators can perform local configuration, range setting, zero / span calibration and view diagnostic alarms directly from the on-board display. HART digital variables, device tags and health status are transmitted over the same 4–20mA two-wire loop to DCS asset management systems. Widely used in chemical, oil & gas, power, pulp & paper and water treatment plants for pressure, differential pressure and flow measurement applications. Plant teams keep spare D674A906U01 cartridges for fast instrument repair without replacing the entire transmitter housing.

• Best Suited For
  • ABB smart differential pressure / pressure / flow transmitters
  • Field instrument core electronics replacement, local display, 4–20mA analog output and HART communication
  • Direct drop-in replacement for existing ABB D674A906U01 U-high HART Std FET 300 transmitter cartridge hardware

Core Technical Specifications

Field Engineer’s Tech Notes

• Confirm transmitter model compatibility before replacement; this cartridge is dedicated to matching ABB transmitter families.
• Work must follow hazardous area procedures if the transmitter is installed in an Ex classified zone.
• Two-wire loop polarity must be observed; reversed polarity can prevent the cartridge from powering up.
• After replacement, reconfigure PV range, tag, damping and perform zero/span calibration. Verify 4–20mA output and HART communication with DCS / HART communicator.
• ESD protection required during handling of the exposed cartridge PCB.
• Check gasket integrity when re-sealing the transmitter housing to prevent moisture ingress.

Adaptive QA & Testing Protocol

Each D674A906U01 cartridge is bench tested with ABB transmitter test fixture. We verify LCD display and local button operation. 4–20mA output is calibrated across full measurement range. HART digital communication is validated using HART communicator, confirming tag, process variable and diagnostic data readback. Loop power operation is checked. PCB visual inspection, connector continuity test are performed. Full test reports or bench test video clips are available upon request.

Buyer’s FAQ

Q: What is ABB D674A906U01 used for? A: It is a plug-in electronics cartridge for ABB smart transmitters. It provides local display, 4–20mA analog output and HART digital communication for pressure, DP and flow transmitters.

Q: What warranty applies for refurbished and NSFP D674A906U01? A: Refurbished and NSFP units carry a 12-month hardware warranty. Coverage excludes ESD damage, incorrect loop wiring, improper calibration, moisture ingress and incompatible transmitter installation.

Q: What lead time should I expect? A: Stocked units ship 3–7 business days. If inventory is depleted, lead time increases while we source surplus ABB D674A906U01 cartridges.

Q: Can D674A906U01 work without the ABB pressure sensor module? A: The cartridge alone cannot measure process variables. It requires the matched ABB sensor element to receive raw pressure signals.
