Description
At-A-Glance Executive Brief
- Model: D1031SH45TS02
- Brand: ABB
- Part Type: Press-pack disc soft recovery snubber / clamp diode for medium voltage power converters
- Lifecycle status: EOL legacy power semiconductor spare; stocked for brownfield medium voltage drive, static excitation, and power conversion cabinet maintenance
- System compatibility: ABB medium voltage converter systems, IGCT-based power stacks, static excitation units; provides snubber clamping and overvoltage suppression for IGCT devices, absorbs switching voltage spikes and protects power semiconductors from transient overvoltage damage
- Weight: ~1.35 kg
Technical Introduction
Failure of D1031SH45TS02 snubber diode removes transient overvoltage clamping protection for IGCT power stacks. Voltage spikes generated during device switching will not be absorbed, which may cause catastrophic breakdown of IGCTs or adjacent power components. The medium voltage drive or excitation system will trigger a high-voltage fault trip, resulting in forced shutdown of motors, generators or process loads, and unplanned downtime with risk of expensive power stack damage.

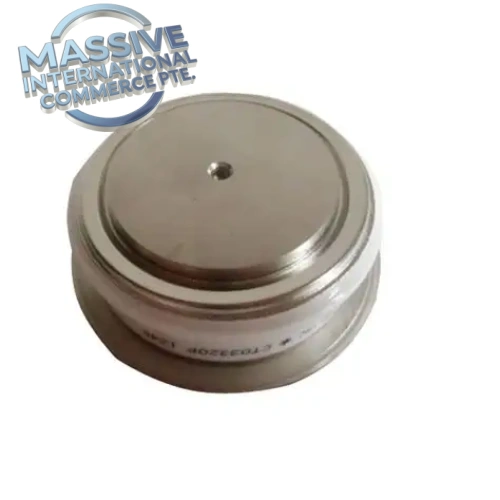

ABB D1031SH45TS02 is a press-pack disc-style soft recovery diode designed for high-power medium voltage converter applications. It acts as a clamp / snubber diode, typically paralleled with IGCT thyristor devices inside power stacks. The soft recovery characteristic minimizes reverse recovery voltage spikes during high-speed switching. The press-pack package enables double-sided thermal cooling, low thermal resistance and high surge current capability. It is widely used in large MV variable speed drives, generator static excitation systems and industrial power conversion equipment for mining, metals, pulp & paper and power generation plants. Power system reliability teams stock D1031SH45TS02 to restore overvoltage protection and safe switching operation for legacy ABB medium voltage power stacks.
- Best Suited For
- ABB medium voltage IGCT converter power stacks, static excitation cabinets
- Transient overvoltage clamping, snubber protection for high power IGCT switching devices
- Direct drop-in replacement for existing ABB D1031SH45TS02 press-pack soft recovery diode hardware
Core Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | D1031SH45TS02 |
| Manufacturer | ABB |
| Product Type | Press-pack Disc Soft Recovery Clamp / Snubber Diode |
| Repetitive Reverse Voltage VRRM | 4500 V |
| Average Rectified Current IFAVM | 1000 A |
| Non-repetitive Surge Current IFSM | 28000 A |
| Forward Voltage VF | 4.3 V @ 2500A |
| Operating Case Temperature TC | Up to 85°C |
| Package Style | Press-pack disc, DO-200AE |
| Mechanical Size | Diameter 120mm, height 26mm |
| Cooling Method | Double-sided contact pressure cooling |
| Mounting | Bolted stack assembly with specified clamping force |
| Weight | ~1.35 kg |
| Environmental Details | Please refer to ABB power semiconductor datasheet for thermal, shock and vibration specifications for medium voltage power stacks. |
Field Engineer’s Tech Notes
- Confirm full part revision, stack clamping torque specification, cooling system integrity and snubber circuit configuration before replacement; improper clamping force or mismatched diode type will cause thermal runaway or premature device failure.
- Perform full lockout-tagout of medium voltage supply and complete discharge of all DC bus capacitors before removing the power stack. Residual high voltage remains after shutdown and poses lethal shock hazard.
- Inspect contact surfaces for oxidation, cooling plates, spring pressure assemblies and snubber circuit capacitors; poor thermal contact and degraded snubber capacitors are common root causes of press-pack diode failure.
- After installation, verify proper stack clamping torque, cooling circuit flow, insulation resistance test, low-power functional test before energizing full medium voltage. Monitor device temperature and switching waveforms during commissioning, clear faults before returning equipment online.
- ESD protection required while handling semiconductor device. Wear proper insulating PPE for all high voltage work.
- Perform contact surface inspection and torque verification during power converter preventative maintenance.
Adaptive QA & Testing Protocol
Each D1031SH45TS02 press-pack diode is bench tested. We verify forward voltage check, reverse leakage test at rated voltage, surge current screening and visual inspection of disc surfaces for cracks, burn marks or corrosion. Full test reports are available upon request.
Buyer’s FAQ
Q: What is ABB D1031SH45TS02 used for? A: It is a 4500V press-pack soft recovery clamp diode used in ABB IGCT medium voltage power stacks to suppress switching transients and protect IGCT devices from overvoltage damage.
Q: What warranty applies for refurbished and NSFP D1031SH45TS02? A: Refurbished and NSFP units carry a 12-month hardware warranty. Coverage excludes ESD damage, improper stack torque, overheating, capacitor circuit faults and failure caused by incomplete high voltage discharge before service.
Q: What lead time should I expect? A: Stocked units ship 3–7 business days. If inventory depleted, we source surplus ABB D1031SH45TS02 press-pack diodes.
Q: Can D1031SH45TS02 be hot swapped? A: Not hot-swappable. Full medium voltage lockout, tagout and capacitor discharge are mandatory before stack disassembly.
Q: Is D1031SH45TS02 still in production? A: No, this press-pack power semiconductor device is end-of-life legacy hardware.
