Description
Product Overview

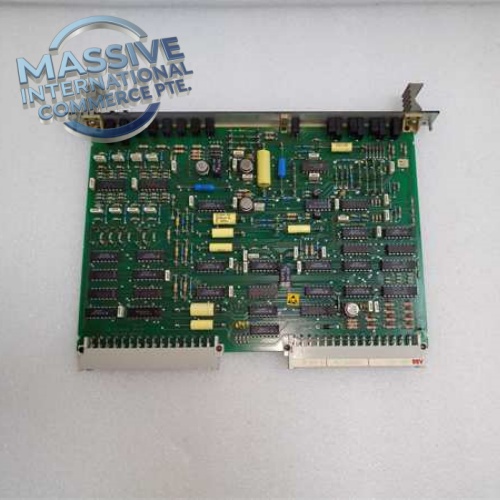

The ABB CSA464AE, with alternate part number HIEE400106R0001, is a rack-mounted hybrid analog/digital I/O interface card built for ABB Advant OCS and Procontrol P14 distributed control systems. It conditions and acquires analog and discrete field signals and transmits processed data to the DCS controller, while sending control outputs to field actuators. This legacy DCS module is widely deployed in power plants, pulp & paper, chemical and petrochemical facilities, used for boiler control, turbine auxiliary monitoring and continuous process control.
Technical Specifications
| Item | Parameter |
|---|---|
| Part Number | CSA464AE (HIEE400106R0001) |
| Manufacturer | ABB |
| Series | Advant OCS / Procontrol P14 DCS |
| Product Type | Hybrid Analog & Digital I/O Interface Module |
| Analog Input | 4 channels, configurable 4–20mA / 0–10VDC |
| Analog Output | 2 channels, configurable 4–20mA / 0–10VDC |
| Digital Input | 8 channels, 24VDC opto-isolated |
| Digital Output | 4 channels, 24VDC transistor output |
| ADC/DAC Resolution | 16-bit |
| Typical Analog Accuracy | ±0.1% FS |
| Power Supply | 24VDC |
| Isolation | 1500VAC isolation between field side and backplane bus |
| Mounting | Standard ABB subrack rack insertion module |
| Operating Temp | -20°C ~ +60°C |
| Storage Temp | -40°C ~ +85°C |
| Humidity | 5–95% non-condensing |
| Enclosure Rating | IP20 (inside control cabinet only) |
| Configuration Software | ABB Advant Engineer Workplace |
| Hot Swap | Yes |
Key Features
- Hybrid mixed I/O card integrating analog input, analog output, digital input and digital output on a single board, reducing rack slot consumption for small local signal groups.
- Galvanic isolation between field wiring and DCS backplane bus, effectively suppressing ground loop noise and transient surge damage from field devices.
- 16-bit high precision analog conversion, suitable for pressure, flow, level and temperature transmitter signal acquisition and modulating valve control.
- Built-in comprehensive hardware diagnostics, with front panel LED indicators for module health, channel faults, communication and power status for rapid troubleshooting.
- Eurocard rack plug-in design, fits ABB standard DCS subrack, easy removal and installation.
- Hot-swappable module; can be replaced online under approved maintenance procedures without shutting down the whole DCS rack.
- Compatible with Advant OCS and Procontrol P14 controllers, supports real-time data exchange over the DCS backplane bus.
- Widely used spare replacement part for legacy ABB DCS systems in power and process industries.
Installation Notes
- Insert CSA464AE module into the designated slot of ABB DCS subrack, lock the front panel latch to guarantee stable backplane contact.
- Run shielded twisted pair for analog signals; separate low-level analog/digital field cables from high voltage AC power wiring to reduce EMI interference.
- Verify 24VDC supply polarity before energizing the module.
- Follow lockout/tagout procedures before disconnecting field wiring.
- Backup Advant DCS project database before module replacement or firmware update.
- After installation, execute hardware recognition scan and full channel loop test before restoring the control loop online.
- Check shield grounding at single point to avoid ground loops.
Testing Procedure
- Visual inspection: Inspect PCB board, front panel LEDs, edge connector and terminal wiring area for burn marks, corrosion or damaged traces.
- Insert module into DCS rack, connect 24VDC rack power and field signal simulator wiring.
- Apply power and verify module completes power-on self-test; confirm status LEDs indicate healthy operation.
- Inject 4mA,12mA,20mA or voltage reference signals to analog input channels, validate reading accuracy in Advant workstation.
- Set analog output setpoints and measure output current/voltage with multimeter; test digital input and digital output channel switching function.
- Simulate channel open circuit faults to verify built-in diagnostic alarm triggers.
- Save DCS project backup, log all channel calibration results and tag spare module for inventory.
FAQ
Q: What is ABB CSA464AE used for? A: It is a hybrid analog + digital I/O interface board for ABB Advant OCS / Procontrol P14 DCS, collecting field transmitter signals and outputting control signals to actuators.
Q: What is the alternate part number of CSA464AE? A: HIEE400106R0001.
Q: Is CSA464AE hot swappable? A: Yes, hot swap is supported under approved maintenance procedures.
Q: What DCS platform does CSA464AE belong to? A: ABB Advant OCS and Procontrol P14 legacy distributed control system.
