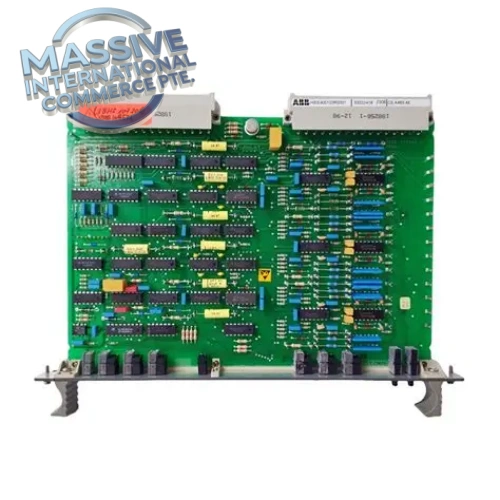

ABB CSA463AE (HIEE400103R0001) Serial Communication Interface Module, ABB Advant OCS / Procontrol P14 DCS Serial Card

Description

Product Overview

The ABB CSA463AE, alternate part number HIEE400103R0001, is a dual-channel serial communication Eurocard module designed for ABB Advant OCS and Procontrol P14 legacy distributed control systems. It serves as serial gateway to exchange data between the DCS controller and external field devices including VFDs, RTUs, smart transmitters and third-party instruments over RS232/RS485 serial links. This legacy communication card is widely deployed in power plants, pulp & paper mills, chemical and petrochemical facilities, used to integrate older serial equipment into the main DCS control architecture.

Technical Specifications

Key Features

1. Dual independent serial communication channels, configurable RS232 or RS485 physical interface for connection to legacy field devices.
2. Galvanic isolation between serial field wiring and DCS backplane, preventing ground loop damage and suppressing electrical transients.
3. Supports Modbus RTU and proprietary ABB serial protocols, enabling interoperability between Advant OCS controller and third-party serial instruments.
4. Front panel LED indicators for power, channel communication activity and fault alarms for fast on-site diagnostics.
5. Standard Eurocard construction, directly inserts into ABB Procontrol P14 / Advant OCS subrack, simple installation and removal.
6. Hot-swappable module; replacement can be performed online under approved maintenance procedures without full rack shutdown.
7. Dedicated backplane bus interface to exchange real-time serial data with Advant OCS controller.
8. Popular spare replacement part for legacy ABB DCS installations that still rely on serial field device communications.

Installation Notes

• Insert CSA463AE module into the assigned slot of ABB DCS subrack and lock front latch for stable backplane contact.
• Use shielded twisted pair cable for RS485 serial wiring; separate serial signal cables from high voltage AC cables to reduce EMI noise.
• Verify backplane power before energizing the module.
• Follow lockout/tagout procedures before disconnecting field serial wiring.
• Backup Advant DCS project database before module replacement or firmware upgrade.
• After installation, perform communication handshake test with serial field devices before restoring control system online.
• Apply single-point shield grounding for serial cables to eliminate ground loops.

Testing Procedure

1. Visual inspection: Inspect PCB, front panel LEDs, edge connector and serial port connector for burn marks, corrosion or damaged pins.
2. Insert module into DCS rack, connect backplane power and serial simulator / field device wiring.
3. Apply rack power, verify module completes power-on self-test and status LEDs are normal.
4. Configure serial port parameters (baud rate, parity, protocol) in Advant workstation.
5. Run communication test between CSA463AE and serial simulator, validate read/write data exchange.
6. Simulate cable disconnection and communication fault to verify diagnostic alarm reporting.
7. Save DCS project backup, log communication test results and tag spare module for inventory.

FAQ

Q: What is ABB CSA463AE used for? A: It is dual-channel serial communication module for ABB Advant OCS / Procontrol P14 DCS, connecting legacy serial field instruments to DCS controller via RS232/RS485.

Q: What is the alternate part number for CSA463AE? A: HIEE400103R0001.

Q: Is CSA463AE hot swappable? A: Yes, hot swap supported under approved maintenance procedures.

Q: What serial interfaces does CSA463AE support? A: Two configurable ports for RS232 or RS485, supports Modbus RTU and ABB proprietary serial protocols.
