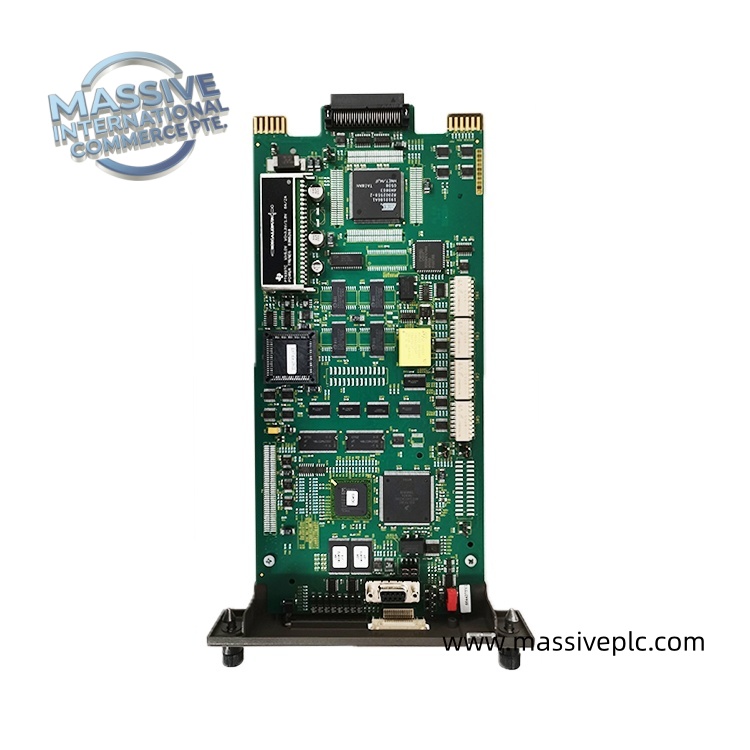

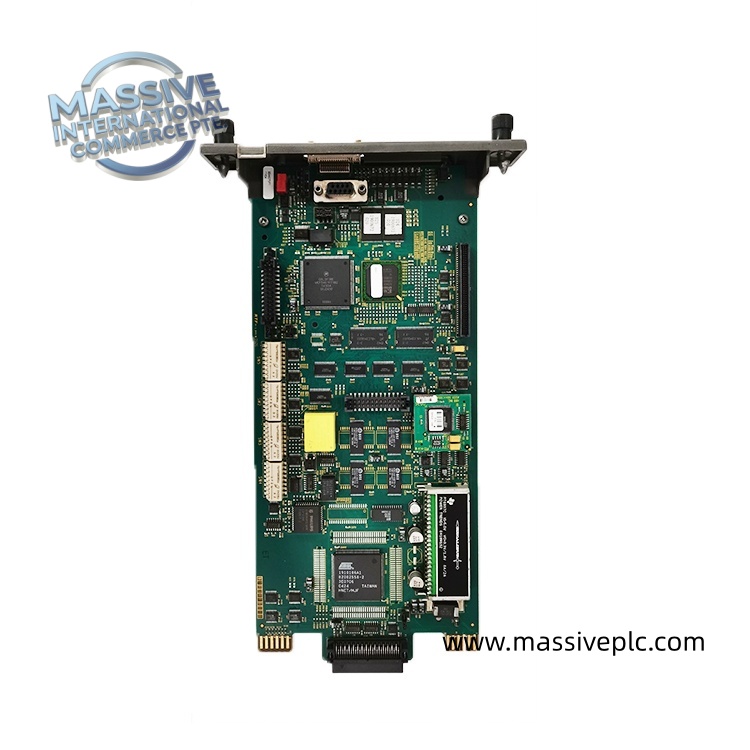

ABB BRC300 | Harmony Bridge Controller, Symphony DCS Process Control Module, ABB Industrial Automation Spare Part, In Stock

Model: BRC300
Brand: ABB
Product Type: Harmony Bridge Controller
Product Series: Symphony Harmony
System Compatibility: ABB Symphony Enterprise Management and Control System, INFI 90 OPEN
Processor: 32-bit Motorola ColdFire 5407
Processor Speed: 160 MHz
SDRAM: 8 MB
NVRAM: 512 KB
Flash ROM: 2 MB
Power Supply: 5 VDC
Current Consumption: 2 A
Typical Power Consumption: 10 W
Communication Ports: 2 RS-232-C, or 1 RS-232-C and 1 RS-485
Redundant Controller Link: 32 Mbit/s
Supported I/O Systems: Harmony Rack I/O, Harmony Block I/O, S800 I/O
Programming Languages: Function Codes, C
Operating Temperature: 0°C to +70°C
Dimensions: 35.56 × 177.80 × 298.45 mm
Application: Distributed control systems, process automation, industrial data acquisition, redundant controller configurations, and power plant control

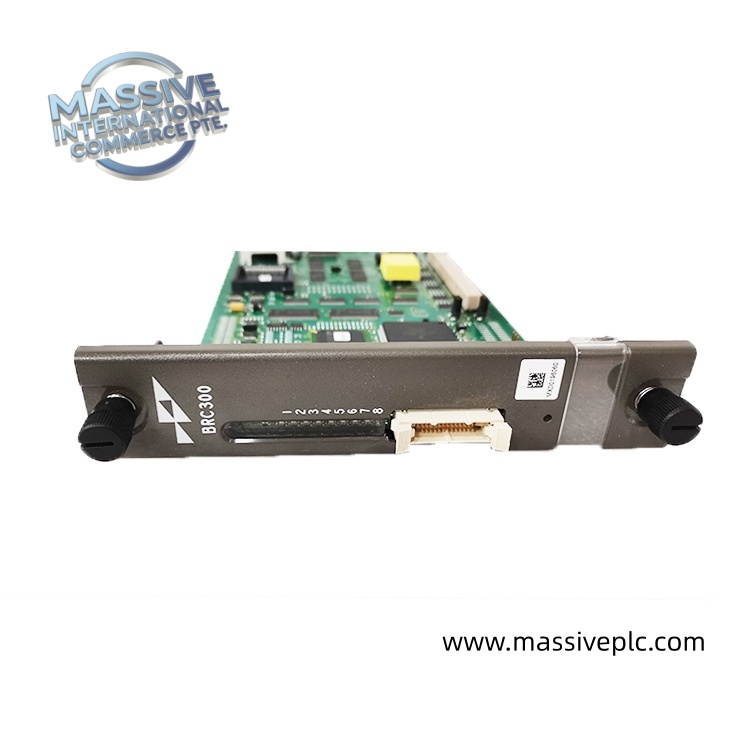

BRC300

Product Overview

The ABB BRC300 is a Harmony Bridge Controller designed for the ABB Symphony Enterprise Management and Control System. It interfaces with Harmony I/O and S800 I/O systems, processes field input and control data, executes control algorithms, and sends control signals to process-level equipment.

Powered by a 32-bit Motorola ColdFire 5407 processor running at 160 MHz, the BRC300 provides memory resources for control logic and process data. It supports function-code and C programming and communicates with other Harmony rack controllers through the Controlway network.

The controller also supports one-for-one redundant configurations to improve system availability. Compatibility with the INFI 90 OPEN system allows it to support applicable legacy process control installations, making it useful for maintenance, replacement, and spare-parts inventory in existing industrial automation systems.

Before ordering, confirm the controller model, system configuration, communication requirements, and installation compatibility against your existing ABB equipment.
