Description

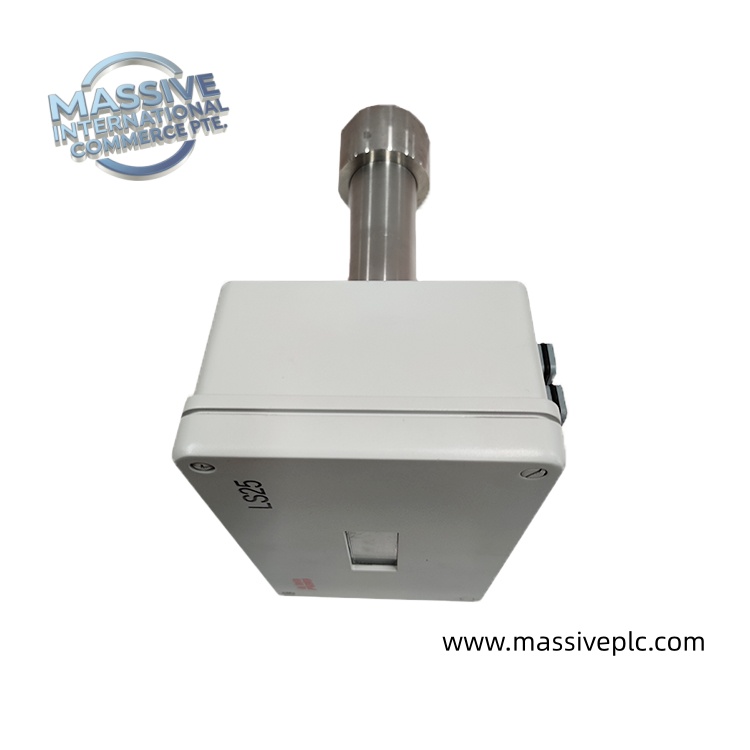

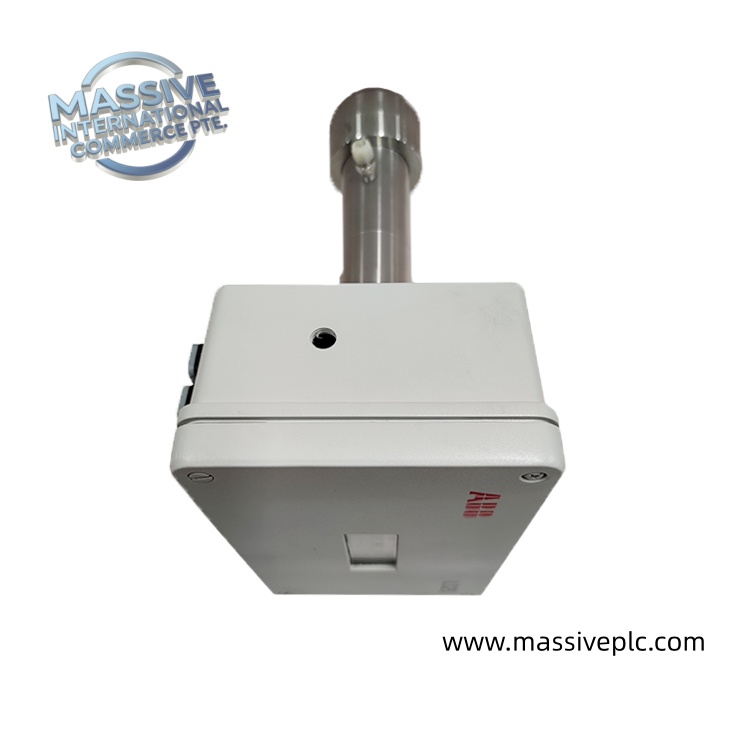

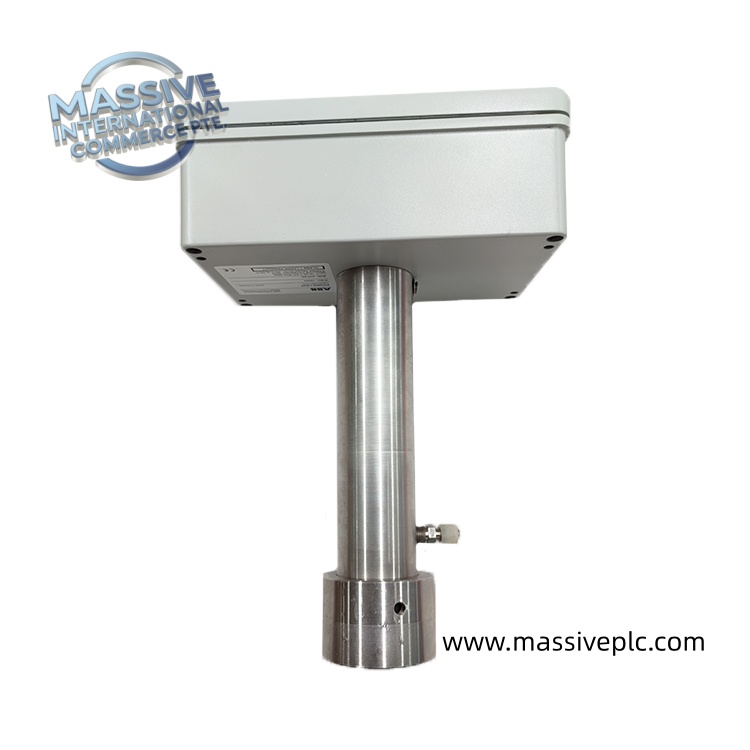

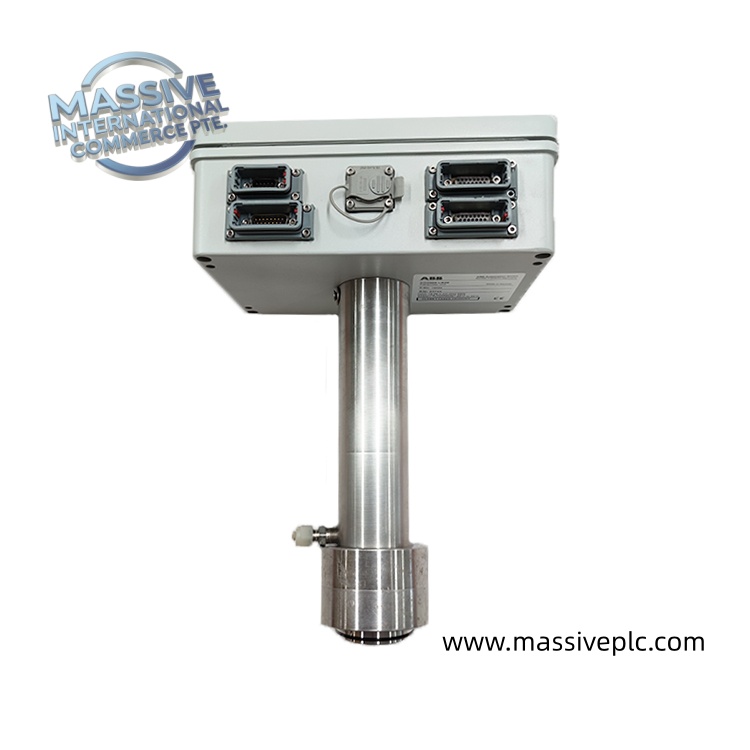

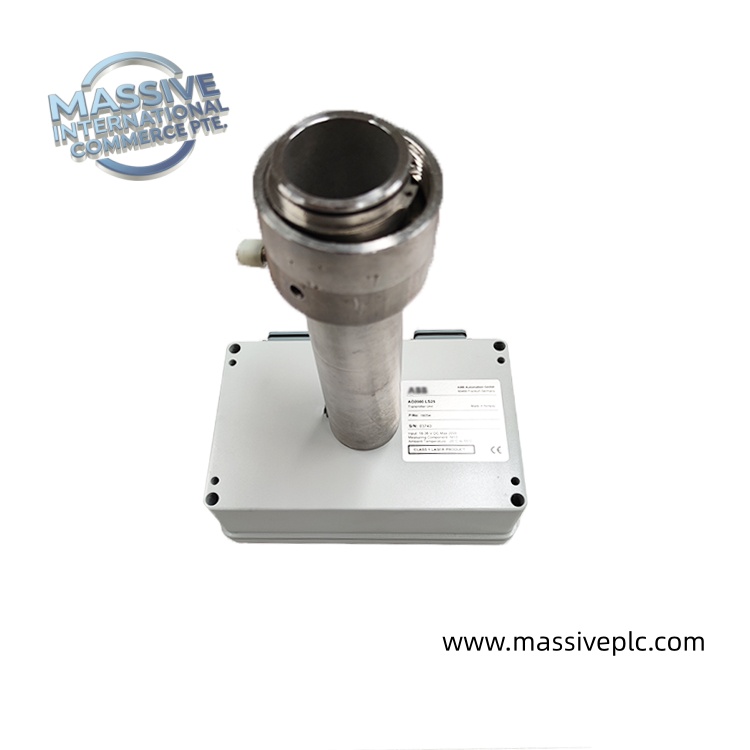

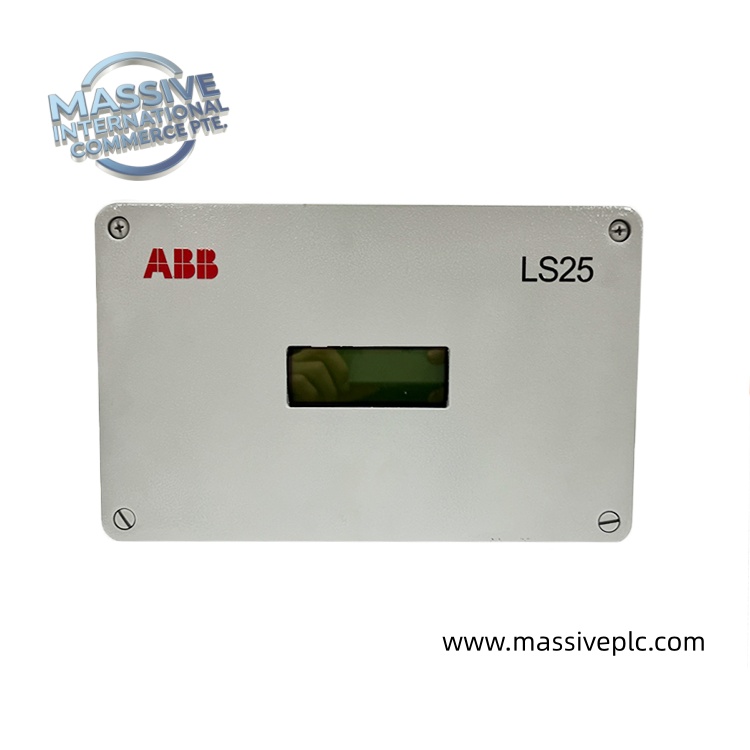

ABB AO2000-LS25 | In-Situ Laser Gas Analyzer, TDLAS Process Gas Monitoring Instrument, In Stock
Product Specifications
Model: AO2000-LS25
Brand: ABB
Product Type: In-Situ Laser Gas Analyzer
Product Series: Advance Optima AO2000
Measurement Technology: Tunable Diode Laser Absorption Spectroscopy (TDLAS)
Measurement Method: Cross-stack, non-contact gas concentration measurement
Measurement Function: Continuous measurement of individual gas components
Installation: Transmitter and receiver mounted opposite each other across the process
Communication Interface: Ethernet 10/100BASE-T, RS-232
Standard Ethernet Cable Length: 15 m, maximum 100 m
Transmitter and Receiver Protection Rating: IP66
Power Supply: 100–240 V AC converted to 24 V DC; direct 24 V DC supply is also possible
Application: Industrial process gas monitoring, stack emissions monitoring, and process control
- AO2000-LS25
Product Overview
The ABB AO2000-LS25 is an in-situ laser gas analyzer in the Advance Optima product family. It uses tunable diode laser absorption spectroscopy (TDLAS) to measure the concentration of selected gas components directly across a process gas stream. A transmitter and receiver are installed opposite each other, allowing continuous, non-contact measurement in stacks, pipes, and process chambers.
