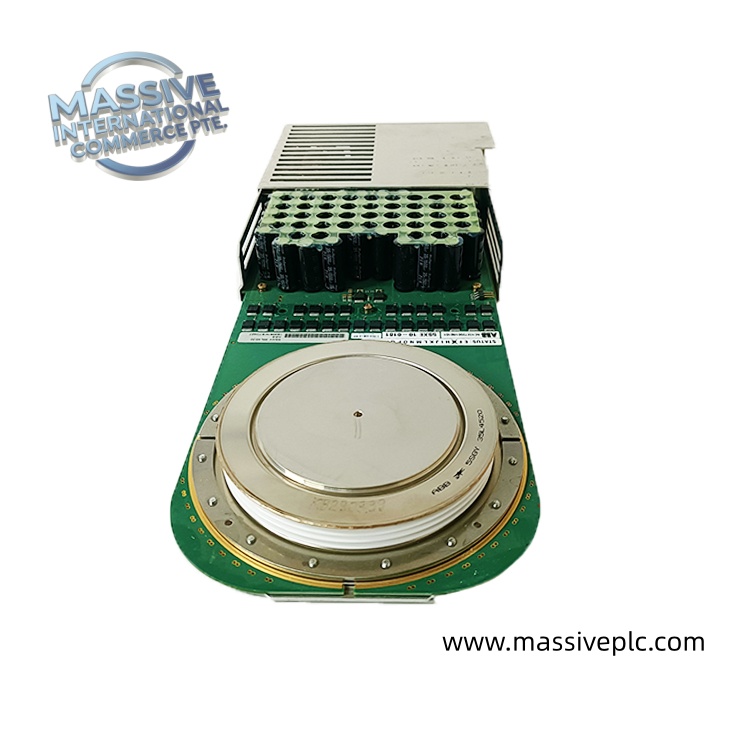

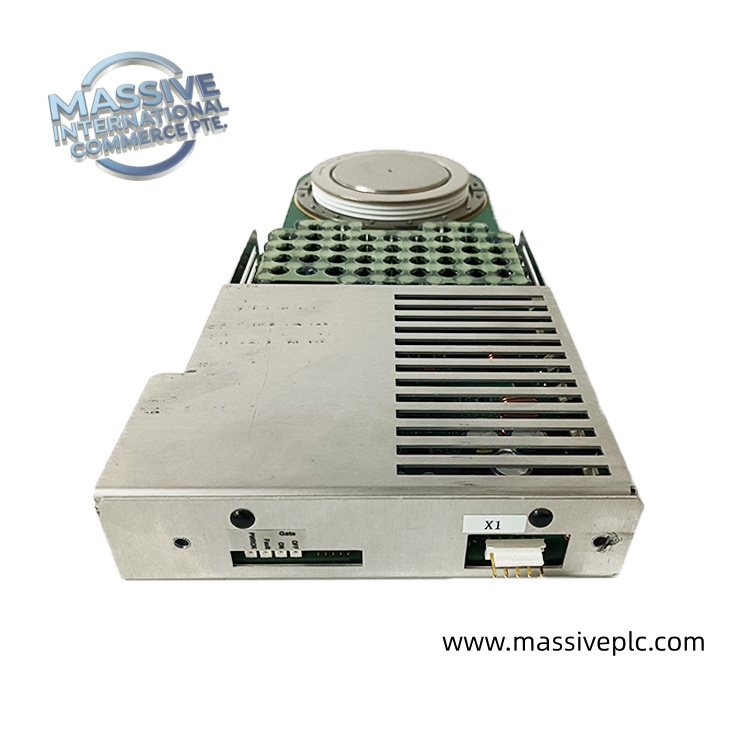

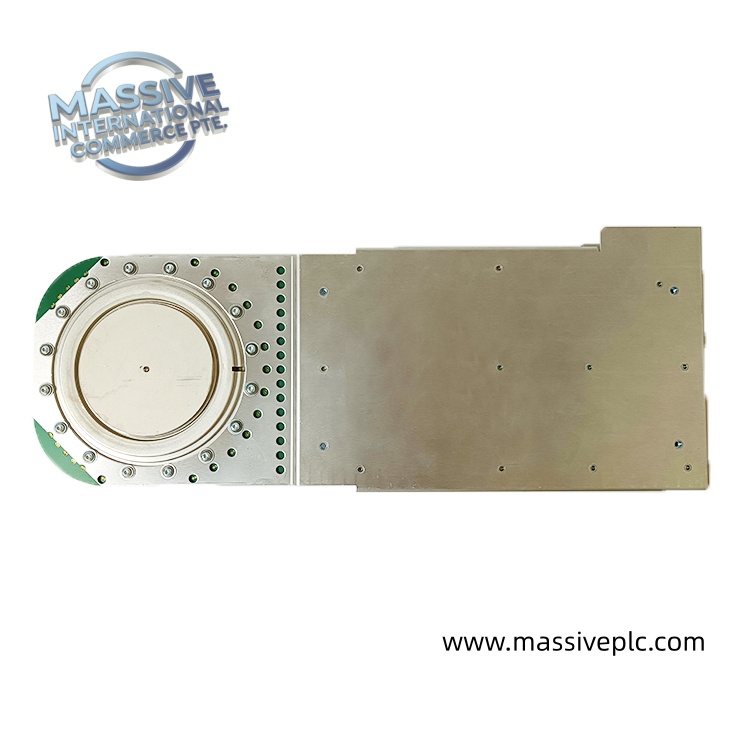

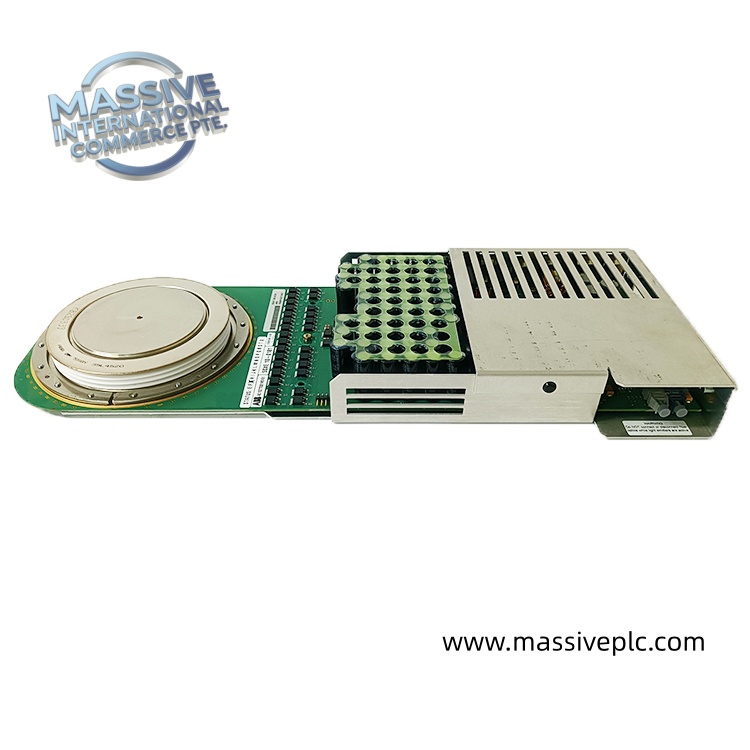

ABB 5SHY35L4520 | Asymmetric IGCT Thyristor, 4500V High-Power Semiconductor Module, In Stock
Model: 5SHY35L4520
Brand: ABB
Alternative Part No.: AC10272001R0101, 5SXE10-0181
Product Type: Asymmetric Integrated Gate-Commutated Thyristor (IGCT)
Semiconductor Type: High-Power Thyristor
Maximum Repetitive Peak Off-State Voltage: 4500 V
Maximum RMS On-State Current: 2670 A
Maximum Average On-State Current: 1700 A
Mounting Type: Press-Pack
Body Dimensions: Ø120.5 / Ø85 mm
HS Code: 8541300000
Application: Medium-voltage drives, industrial inverters, high-power converters, and power electronics systems
Product Overview
The ABB 5SHY35L4520 is an asymmetric Integrated Gate-Commutated Thyristor (IGCT) designed for high-power switching applications. This press-pack semiconductor device is rated for a maximum repetitive peak off-state voltage of 4500 V, with current ratings specified in the product documentation for demanding power-electronics applications.
