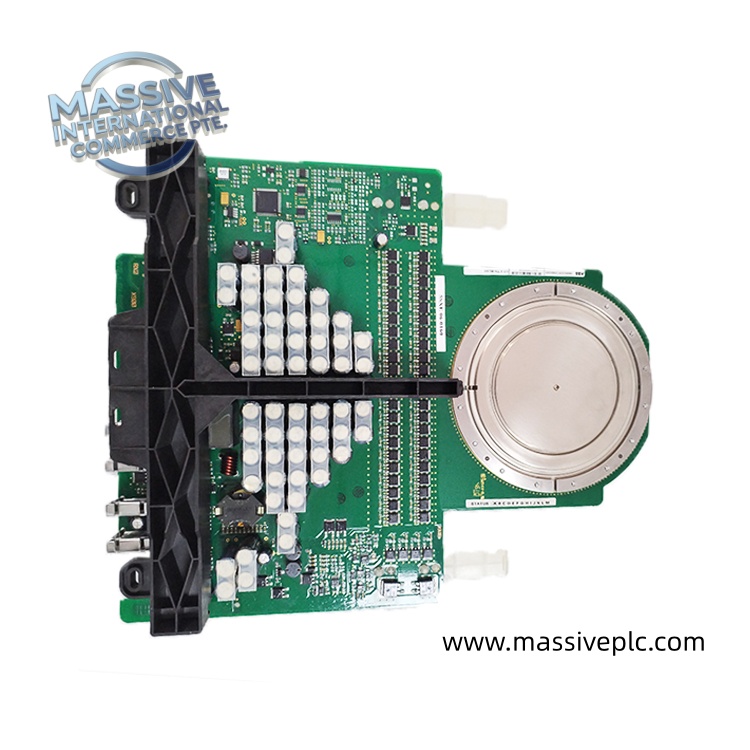

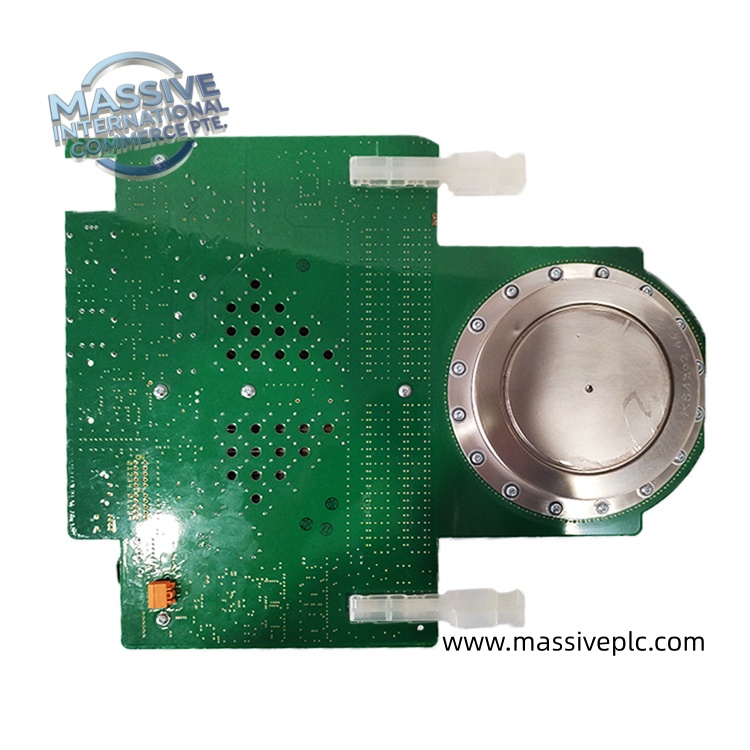

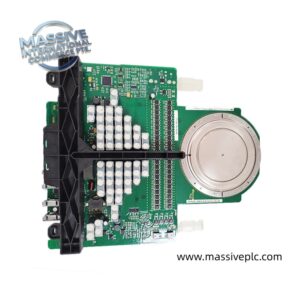

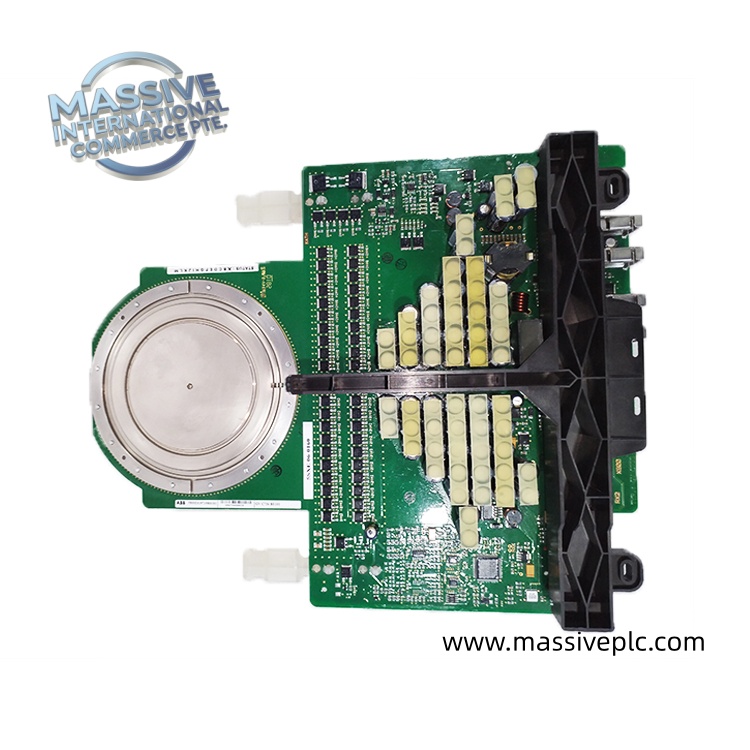

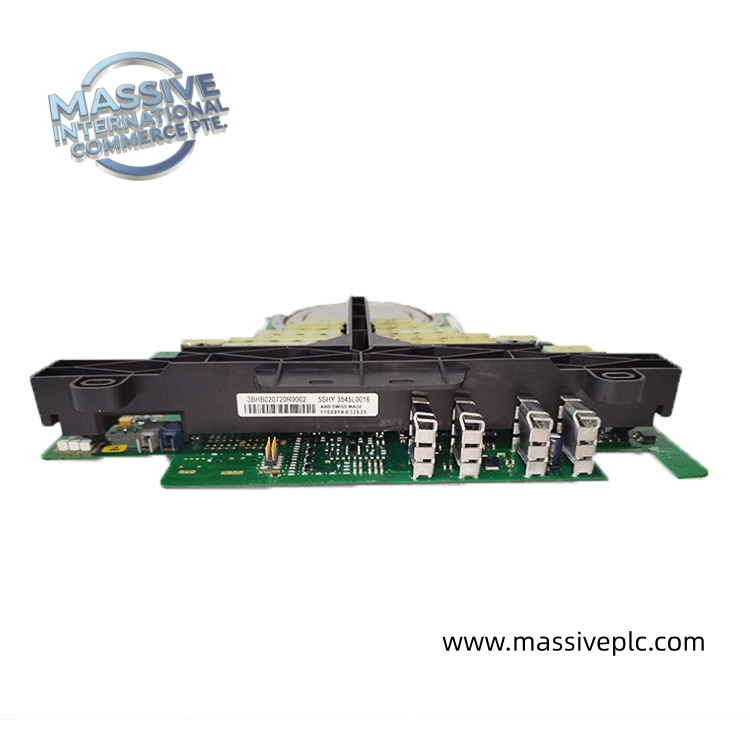

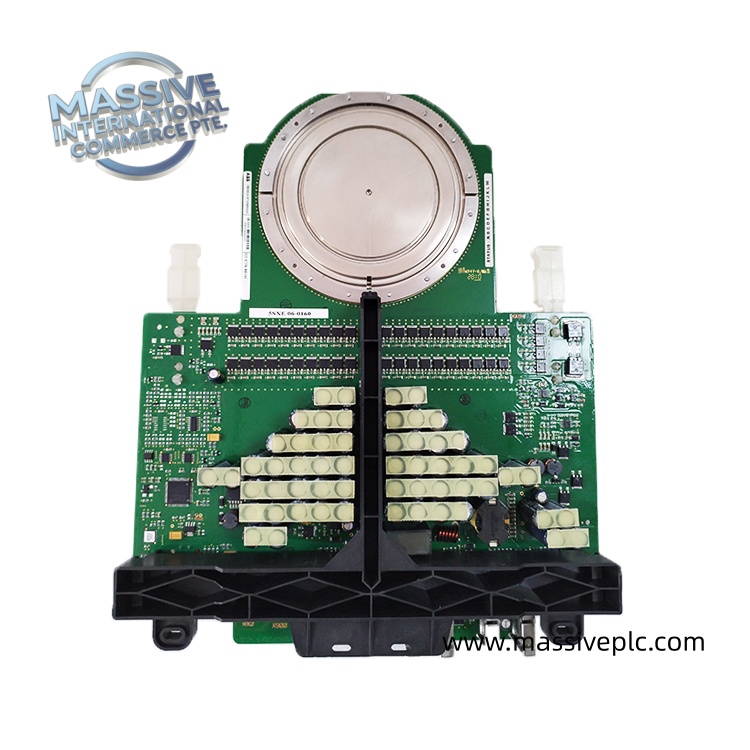

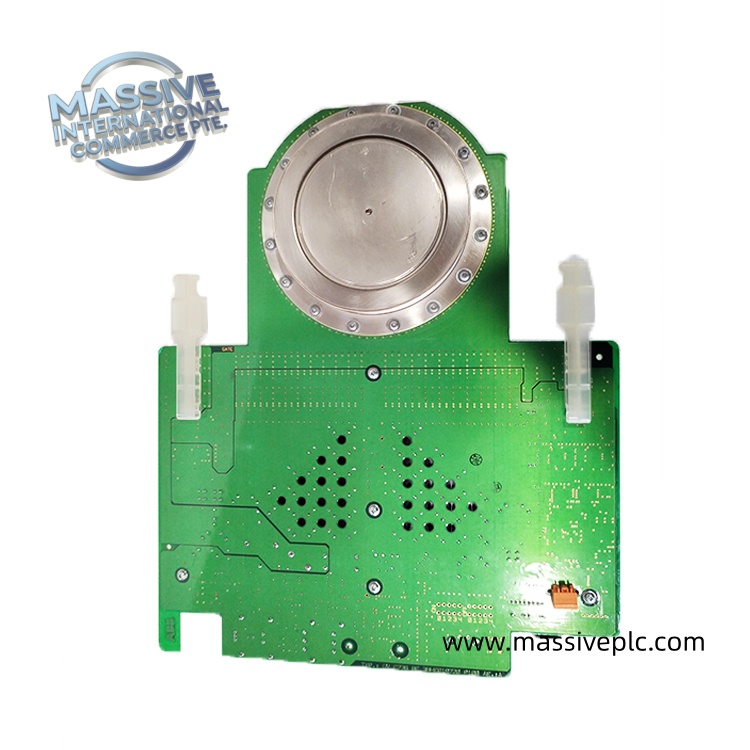

ABB 5SHY3545L0016 3BHB019719R0101 GVC736BE101 5SXE06-0160 | IGCT Power Semiconductor Module, High-Power Drive Spare Part, In Stock

Model: 5SHY3545L0016-3BHB019719R0101-GVC736BE101-5SXE06-0160
Brand: ABB
Product Type: IGCT Power Semiconductor Module
Semiconductor Type: Integrated Gate-Commutated Thyristor (IGCT)
Associated Part Number: 3BHB019719R0101
Additional Reference: GVC736BE101
Additional Reference: 5SXE06-0160
Rated Voltage: 4500 V
Application: Industrial power conversion, medium-voltage drives, inverter systems, and high-power motor control

Model: 5SHY3545L0016
Brand: ABB
Weight: ~2.8 kg
Dimension: approx 280×250×90 mm
HS Code: 85413000
Type: IGCT Power Module
Output: High‑power semiconductor switching component

Model: 3BHB019719R0101
Brand: ABB
Weight: ~1.1 kg
Dimension: approx 260×170×40 mm
HS Code: 85389091
Type: Control Circuit Board
Output: Digital control signal

Model: GVC736BE101
Brand: ABB
Weight: ~1.1 kg
Dimension: approx 260×170×40 mm
HS Code: 85389091
Type: IGCT Gate Control Unit
Output: Gate trigger signal

Model: 5SXE06‑0160
Brand: ABB
Weight: ~0.35 kg
Dimension: approx 120×80×35 mm
HS Code: 85413000
Type: IGCT Gate Unit
Output: Gate drive pulse signal

Product Overview

The ABB 5SHY3545L0016 is a high-power IGCT semiconductor component used in industrial power-electronics equipment. The associated identifiers 3BHB019719R0101, GVC736BE101, and 5SXE06-0160 are listed together by industrial suppliers as part of this product configuration.

5SHY3545L0016–3BHB019719R0101-GVC736BE101-5SXE06-0160
