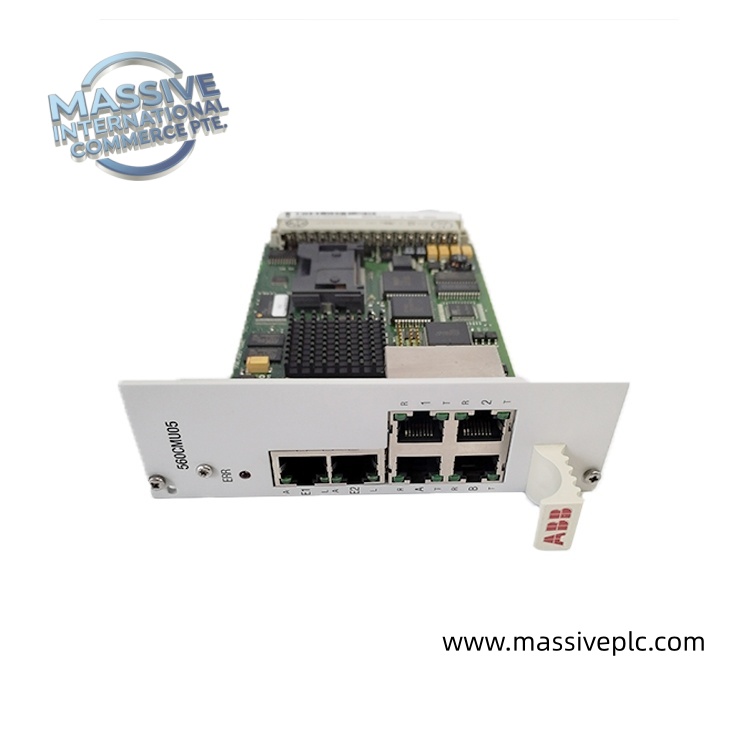

ABB 560CMU05 | Central Communication Unit, RTU560 Substation Automation Module, In Stock - Image 2

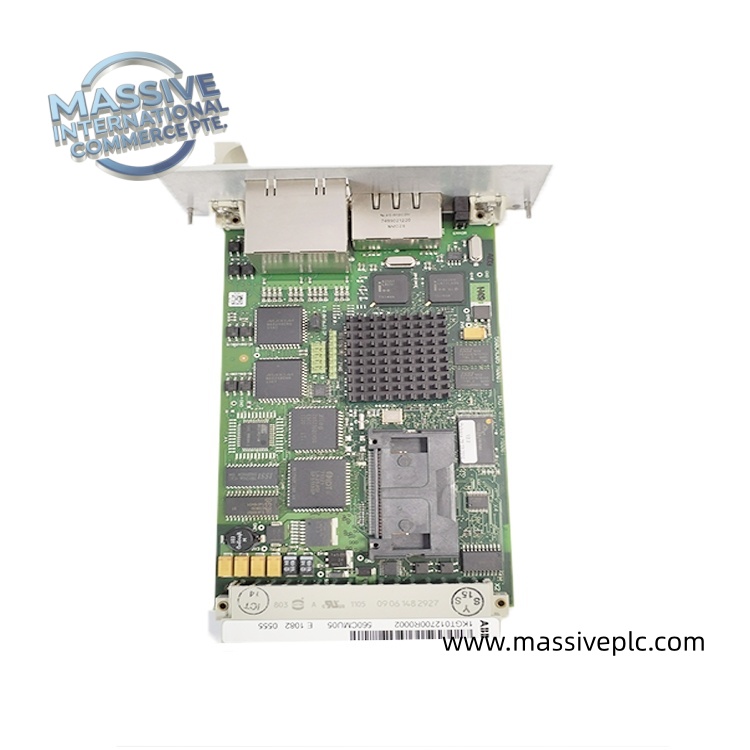

ABB 560CMU05 | Central Communication Unit, RTU560 Substation Automation Module, In Stock - Image 3

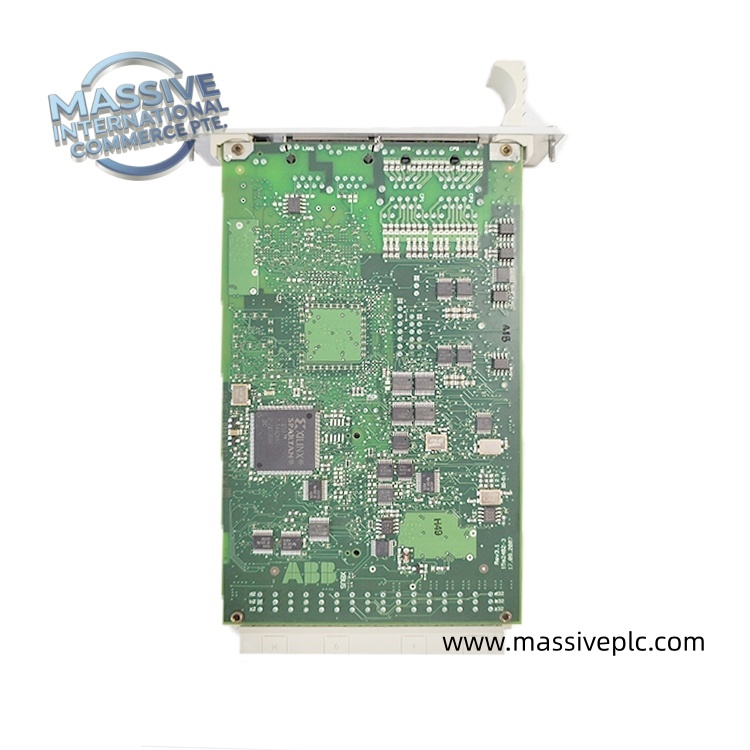

ABB 560CMU05 | Central Communication Unit, RTU560 Substation Automation Module, In Stock - Image 4

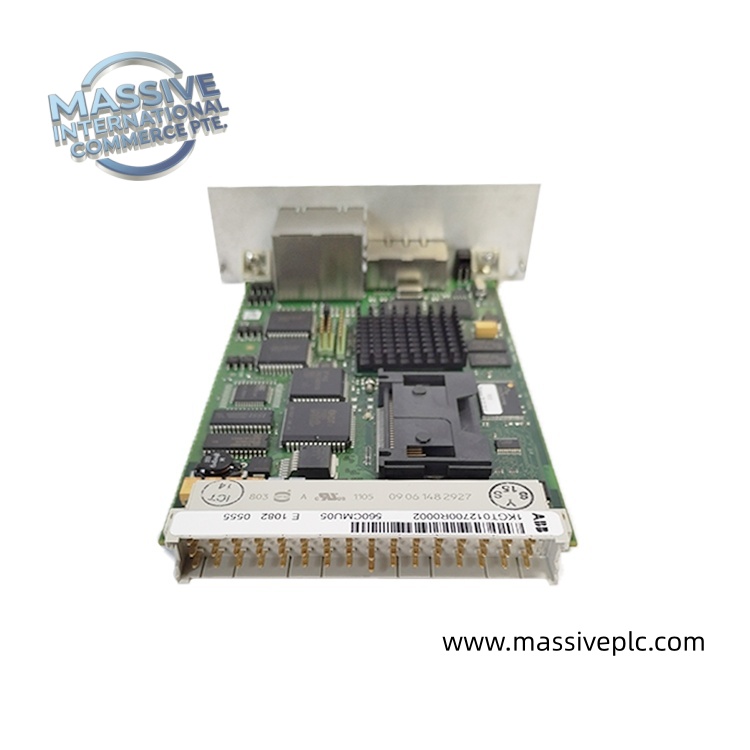

ABB 560CMU05 | Central Communication Unit, RTU560 Substation Automation Module, In Stock

Model: 560CMU05
Brand: ABB
Weight: ~0.45 kg
Dimension: approx 130×85×45 mm
HS Code: 85389091
Type: Communication Unit For RTU560
Output: Serial & Ethernet Communication

Warranty: 1 year
Quality: Original module
Condition: New
Warehouse: In stock
Delivery time: Shipped in 3-5 days after payment

Add to quote
Category: Brand:

Description

ABB 560CMU05 | Central Communication Unit, RTU560 Substation Automation Module, In Stock

Model: 560CMU05

Brand: ABB

Alternative Part No: 1KGT012700R0001, 1KGT012700R0002

Product Type: Central Communication Unit (CMU)

Series: RTU560 Remote Terminal Unit System

Processor: 32‑bit AMD ÉlanSC520 @133MHz

Memory: 128 MB Flash memory, 64 MB RAM

Communication: 2 × RJ45 Ethernet 10/100 Base‑T, 4 serial interfaces RS232C / RS485

Supported Protocol: IEC 60870‑5‑101, IEC 60870‑5‑104, Modbus, DNP3

Function: RTU main processing, I/O bus management, protocol conversion, event recording, web‑based diagnosis

Application: Substation automation, power grid SCADA system, data exchange between field IED and master control station

The ABB 560CMU05 central communication unit is the core main processor module for ABB RTU560 remote terminal unit system. It manages the internal peripheral bus of RTU560, collects data from I/O modules and field intelligent electronic devices, and completes multi‑protocol conversion for two‑way data interaction with upper‑level SCADA master station.
