Description

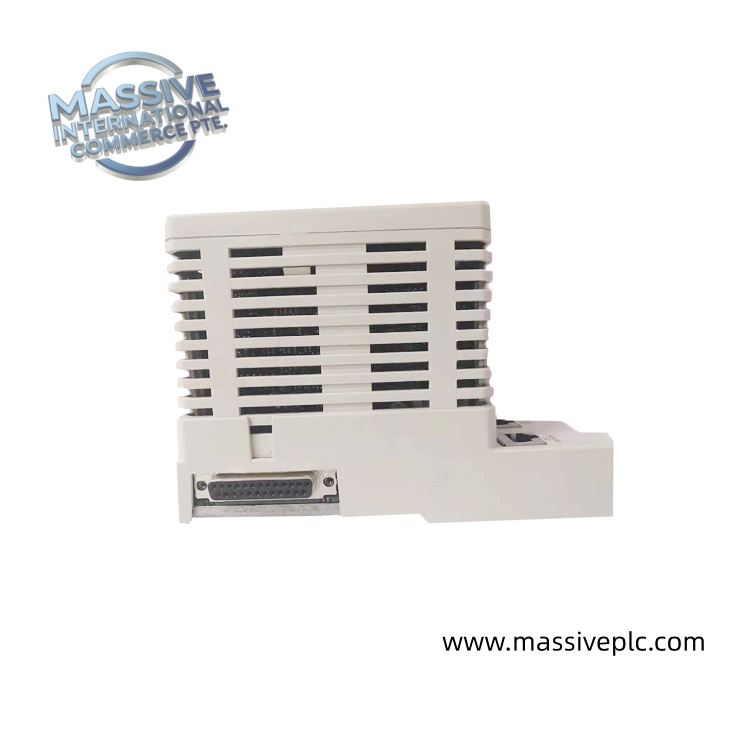

ABB 3BSE043660R1–CI867K01 | Modbus TCP Communication Interface Kit, AC800M DCS Module, In Stock
Model: 3BSE043660R1–CI867K01
Brand: ABB
Alternative Part No: CI867K01
Product Type: Modbus TCP Communication Interface Kit (CI867 module + TP867 baseplate)
Series: System 800xA / AC 800M Controller System
Communication: Modbus TCP/IP, dual RJ45 Ethernet ports
Transmission Speed: Ch1 10/100 Mbps full‑duplex, Ch2 10 Mbps half‑duplex
Operation Mode: Support Modbus TCP Master and Slave
Max Device Quantity: Up to 70 slaves + 8 masters total
Power Supply: 24VDC via CEX‑Bus, typical consumption 160mA
Hot‑Swap: Supported
HS Code: 85176200
Application: ABB AC800M DCS system, industrial automation, process control, data interconnection between DCS and Modbus TCP field devices
Product Net Width: 59 mm
Product Net Height: 186 mm
Product Net Depth / Length: 127.5 mm
Product Net Weight: 0.7 kgABB Group
The ABB 3BSE043660R1‑CI867K01 is a complete Modbus TCP communication interface kit including CI867 communication module and TP867 baseplate, designed for ABB AC 800M controllers under System 800xA platform. It connects to controller CEX‑Bus expansion bus, realizing two‑way data exchange between DCS system and external Modbus‑TCP compatible field instruments.
