Description
At-A-Glance Executive Brief
- Model: A413046
- Brand: Valmet (Formerly Metso Automation)
- Part Type: CPU / Central Processing Unit module for Damatic XDi and Metso DNA DCS
- Lifecycle status: EOL legacy pulp & paper DCS critical spare; stocked for brownfield pulp, paper and fiber line Damatic XDi rack maintenance
- System compatibility: Metso Damatic XDi, early Valmet DNA distributed control system; acts as rack main processor, executes real-time control logic, scans local I/O modules, communicates over the system bus to HMI and other control nodes
- Weight: ~0.54 kg
Technical Introduction
Failure of A413046 CPU module fully disables the entire DCS control rack. All I/O scanning, closed-loop regulation, sequence control, alarm processing and network communications for the associated process section stop. Paper machine speed, digester control, pulp bleaching loops and safety interlocks lose autonomous control, leading to web breaks, process upset and unplanned mill downtime with risk to plant assets.

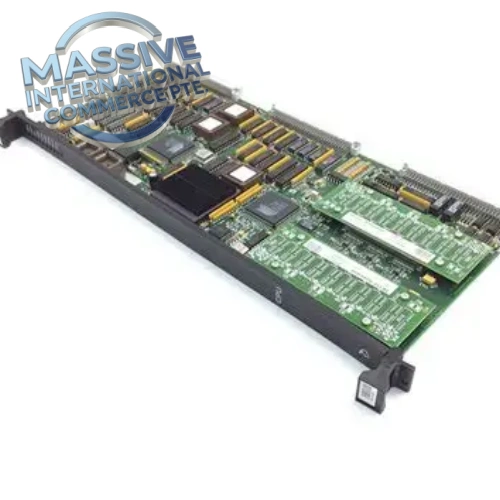

Valmet A413046 is the rack central processor board for Metso Damatic XDi and early DNA DCS, widely deployed in pulp and paper mills. This plug-in CPU board manages all real-time computing tasks for its rack node, executing function block control, batch sequencing, alarm and event logging. It communicates with local I/O cards via the rack backplane and exchanges data with operator stations and other controller nodes over the proprietary system highway. The PCB features conformal coating to resist dust, moisture and condensation typical in paper mill control cabinet environments. It includes battery-backed real-time clock and non-volatile memory for control application retention. Pulp & paper reliability teams stock A413046 to restore full rack process control functionality for Damatic XDi systems.
- Best Suited For
- Metso Damatic XDi / early Valmet DNA DCS racks in pulp, paper and fiber processing plants
- Rack main CPU, real-time regulatory/sequence control, backplane I/O scanning and system bus communication
- Direct drop-in replacement for existing Valmet A413046 DCS CPU processor hardware
Core Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | A413046 |
| Manufacturer | Valmet (Metso Automation) |
| Product Type | CPU / Central Processing Unit Module |
| Compatible Platform | Damatic XDi, Early Valmet DNA DCS |
| Primary Function | Real-time control logic, I/O scanning, alarm/event logging, node communication |
| Backplane Bus | Damatic XDi proprietary rack backplane bus |
| Memory | On-board RAM, battery-backed non-volatile memory, RTC |
| PCB Treatment | Conformal coating for humid mill environments |
| Local Indicators | Front panel LED for RUN, FAULT, COMM diagnostics |
| Control Supply | 24 VDC from rack power supply |
| Mounting | Plug-in slot mount inside Damatic XDi rack |
| Operating Temperature | 0℃ ~ +60℃ |
| Humidity | 5–95% RH non-condensing |
| Weight | ~0.54 kg |
| Environmental Details | Please refer to Valmet Damatic XDi hardware manual for full EMC, shock and vibration specifications for pulp & paper mill environments. |
Field Engineer’s Tech Notes
- Confirm full part revision, Damatic XDi firmware version, node address, backup control application program and I/O rack mapping before replacement; revision mismatch or corrupted application will cause boot failure or loss of process control.
- Implement full process safety bypass for all control loops and safety interlocks before removing the CPU board. Loss of this node will disable all associated regulatory and sequence control.
- Inspect rack backplane connectors, system bus cables, terminators and cabinet air filters; dust buildup, moisture and bus termination errors are common causes of intermittent CPU communication faults.
- After installation, verify 24VDC power-up, CPU boot sequence, backplane I/O module detection, application program loading and system bus registration. Test closed-loop control response, alarm generation and HMI data exchange, clear faults and remove safety bypass before returning the process section online.
- ESD protection required while handling PCB assembly.
- Regularly backup CPU application logic and perform system bus health checks during mill DCS preventative maintenance.
Adaptive QA & Testing Protocol
Each A413046 CPU processor board is bench tested on Damatic XDi test rack. We verify 24VDC power boot, firmware startup, backplane bus handshake, I/O module detection, control application execution and diagnostic LED operation. PCB, edge connector, conformal coating and solder joints are visually inspected for burn marks, corrosion or thermal damage. Full test reports are available upon request.
Buyer’s FAQ
Q: What is Valmet A413046 used for? A: It is the main CPU processor module for Damatic XDi / early Valmet DNA DCS, running real-time process control logic, scanning local I/O and communicating with operator HMI in pulp and paper mill control systems.
Q: What warranty applies for refurbished and NSFP A413046? A: Refurbished and NSFP units carry a 12-month hardware warranty. Coverage excludes ESD damage, moisture corrosion, firmware/application mismatch, bus termination errors and improper safety bypass.
Q: What lead time should I expect? A: Stocked units ship 3–7 business days. If inventory depleted, we source surplus Valmet A413046 CPU boards.
Q: Can A413046 be hot swapped? A: Not hot-swappable. Rack 24V control power must be isolated before removal. All critical control and interlock loops require safety bypass before replacement.
Q: Is A413046 still in production? A: No, Damatic XDi series including A413046 CPU is end-of-life legacy DCS hardware.
