Description
At-A-Glance Executive Brief
- Model: A413003
- Brand: Valmet (Formerly Metso Automation)
- Part Type: CPU / Central Processing Unit module for Damatic XDi DCS
- Lifecycle status: EOL legacy pulp & paper DCS critical spare; stocked for brownfield pulp, paper and fiber line Damatic XDi cabinet maintenance
- System compatibility: Metso Damatic XDi distributed control system; serves as the primary processing engine for the rack, scans local I/O modules, executes PID and sequence control logic, communicates with operator stations and other control nodes over X-bus
- Weight: ~0.55 kg
Technical Introduction
Failure of A413003 CPU module completely disables the Damatic XDi control rack. I/O scanning, closed-loop regulation, interlock logic, alarm handling and X-bus network communication cease for the assigned plant section. Paper machine speed, pulp digester and bleaching process control loops lose autonomous operation, resulting in web breaks, major process upsets, unplanned mill downtime and potential equipment damage.

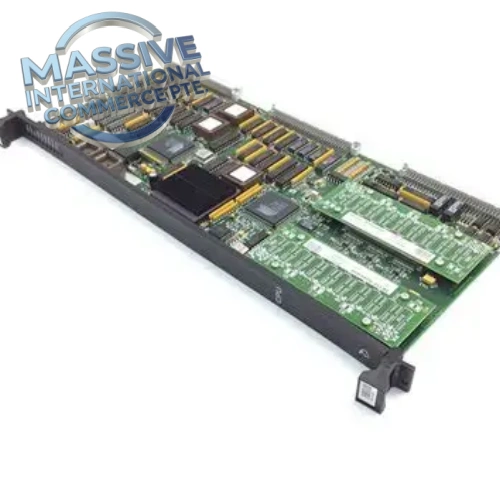

Valmet A413003 is the core CPU processor board for Metso Damatic XDi DCS, widely deployed in pulp and paper mills. This plug-in rack card executes deterministic real-time control functions, including function block regulation, batch sequencing, event logging and fault diagnostics. It interfaces with local I/O cards via the proprietary high-speed rack backplane and exchanges real-time data with HMI and peer controllers over the X-bus process highway. The PCB features conformal coating to resist dust, moisture and condensation common in mill control room environments. It includes battery-backed memory and real-time clock to retain control application and timestamp events during power loss. Pulp & paper reliability teams stock A413003 to restore full rack autonomous process control for Damatic XDi systems.
- Best Suited For
- Metso Damatic XDi DCS racks in pulp, paper and fiber processing plants
- Rack main CPU for real-time control logic, backplane I/O scanning and X-bus network communication
- Direct drop-in replacement for existing Valmet A413003 Damatic XDi CPU hardware
Core Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | A413003 |
| Manufacturer | Valmet (Metso Automation) |
| Product Type | CPU / Central Processing Unit Module |
| Compatible Platform | Damatic XDi DCS |
| Primary Function | Real-time regulatory & sequence control, I/O scanning, alarm/event logging, X-bus communication |
| Backplane Bus | Damatic XDi proprietary rack backplane bus |
| Memory | On-board RAM, battery-backed non-volatile memory, RTC |
| PCB Treatment | Conformal coating for humid mill environments |
| Local Indicators | Front panel LED for RUN, FAULT, COMM diagnostics |
| Control Supply | 24 VDC from rack power supply |
| Mounting | Plug-in slot mount inside Damatic XDi rack |
| Operating Temperature | 0℃ ~ +60℃ |
| Humidity | 5–95% RH non-condensing |
| Weight | ~0.55 kg |
| Environmental Details | Please refer to Valmet Damatic XDi hardware manual for full EMC, shock and vibration specifications for pulp & paper mill environments. |
Field Engineer’s Tech Notes
- Confirm full part revision, Damatic XDi firmware version, node address, backup control application program and I/O rack mapping before replacement; revision mismatch or corrupted application will cause boot failure or loss of process control.
- Implement full process safety bypass for all control loops and safety interlocks before removing the CPU board. Loss of this node will disable all associated regulatory and sequence control.
- Inspect rack backplane connectors, X-bus network cables, terminators and cabinet air filters; dust buildup, moisture and bus termination errors are common causes of intermittent CPU communication faults.
- After installation, verify 24VDC power-up, CPU boot sequence, backplane I/O module detection, application program loading and X-bus network registration. Test closed-loop control response, alarm generation and HMI data exchange, clear faults and remove safety bypass before returning the process section online.
- ESD protection required while handling PCB assembly.
- Regularly backup CPU application logic and perform X-bus network health checks during mill DCS preventative maintenance.
Adaptive QA & Testing Protocol
Each A413003 CPU processor board is bench tested on Damatic XDi test rack. We verify 24VDC power boot, firmware startup, backplane bus handshake, I/O module detection, control application execution and diagnostic LED operation. PCB, edge connector, conformal coating and solder joints are visually inspected for burn marks, corrosion or thermal damage. Full test reports are available upon request.
Buyer’s FAQ
Q: What is Valmet A413003 used for? A: It is the main CPU processor module for Damatic XDi DCS, running real-time pulp & paper process control logic, scanning local I/O and communicating with operator HMI over X-bus.
Q: What warranty applies for refurbished and NSFP A413003? A: Refurbished and NSFP units carry a 12-month hardware warranty. Coverage excludes ESD damage, moisture corrosion, firmware/application mismatch, bus termination errors and improper safety bypass.
Q: What lead time should I expect? A: Stocked units ship 3–7 business days. If inventory depleted, we source surplus Valmet A413003 CPU boards.
Q: Can A413003 be hot swapped? A: Not hot-swappable. Rack 24V control power must be isolated before removal. All critical control and interlock loops require safety bypass before replacement.
Q: Is A413003 still in production? A: No, Damatic XDi series including A413003 CPU is end-of-life legacy DCS hardware.
