Description
Product Overview

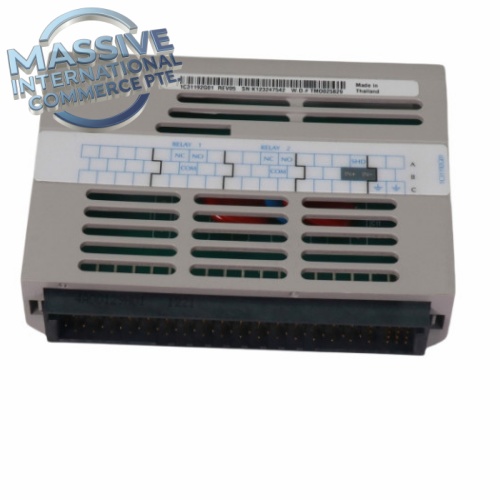

The Emerson 1C31192G01 is a speed detector personality module for the Ovation distributed control system, originally released under Westinghouse branding. It interfaces with magnetic pickup speed sensors and pulse tachometers to measure rotating equipment speed for turbines, fans, pumps and compressors. The module converts raw pulse signals into RPM and frequency data for the Ovation controller. Original manufacturing has ended; units are supplied as surplus or refurbished replacement stock for power generation plant DCS racks.
Technical Specifications
| Item | Parameter |
|---|---|
| Part Number | 1C31192G01 |
| Manufacturer | Emerson (Westinghouse Ovation) |
| Module Type | Speed Detector Personality Module |
| Input Type | Magnetic pickup / pulse tachometer |
| Frequency Range | 0.01 Hz to 3000 Hz |
| Measurement Accuracy | ±0.1% ± 1 count |
| Resolution | 0.001 Hz |
| Backplane Supply | 24VDC |
| Power Consumption | 1.5W |
| Isolation | Channel-to-backplane galvanic isolation |
| Operating Temperature | -20°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Humidity | 5%–95% non-condensing |
| Mounting | Ovation standard rack slot |
| Weight | 250g |
Engineer Notes
- This personality module pairs with a base Ovation I/O board; it cannot function standalone. Confirm matching base hardware before ordering.
- Front panel LEDs show pulse signal presence and fault status for on-site diagnostics. Common faults include sensor cable shorting, low amplitude pickup signals and incorrect tooth count configuration.
- Configure the tooth-count parameter in the Ovation point database to match the rotating machine gear profile. Wrong tooth count leads to incorrect RPM readings.
- Follow ESD controls during service. Remove rack power before inserting or extracting the module.
- Use shielded twisted pair wiring for speed sensor cables. Separate these cables from high-current power wiring to reduce electrical noise interference.
Pre-Shipment Test Protocol
- Visual inspection: Check PCB, edge connector, front panel and LED windows for corrosion, bent pins or component damage.
- Continuity and isolation test: Verify isolation between input circuit and backplane bus.
- Functional bench test: Apply variable frequency pulse signal to module input across the full measurement range, confirm reported frequency and RPM match the reference signal.
- Fault simulation: Inject low-amplitude and open-circuit conditions, verify module triggers diagnostic alarms as expected.
- Power cycling: Cycle backplane power 10 times, confirm measurement readings remain stable after each restart.
- Save test data and photos for QA records.
Buyer FAQ
Q: Can I swap 1C31192G01 with other speed personality modules directly? A: Form factor fits the same Ovation slot, but verify firmware and point database configuration. Different personality codes require database rework.
Q: What sensors work with this module? A: Magnetic pickups and pulse tachometers that produce sine or square wave pulse signals within the module input amplitude range. It does not work with 4-20mA speed transmitters.
Q: Is this new original Emerson production stock? A: OEM production has stopped. Available units are surplus or fully refurbished tested stock. We offer a 12-month warranty on tested units.
Q: Does the module include terminal blocks and sensor cabling? A: Terminal blocks and field cables are not included unless noted on your order quote. Confirm at time of purchase.
