Description
Product Overview

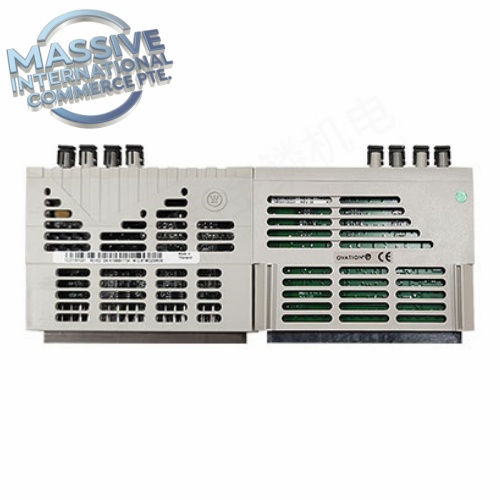

The Emerson 1C31181G01 is an 8-channel analog output module for the Ovation distributed control system. It converts digital setpoint values from the Ovation controller into standard 4–20mA analog signals to position modulating valves, dampers, actuators and variable-speed drive setpoints. OEM production has ended; available stock consists of surplus or refurbished tested replacement units for power generation, boiler control, pulp and paper, and water treatment DCS racks.
Technical Specifications
| Item | Parameter |
|---|---|
| Part Number | 1C31181G01 |
| Manufacturer | Emerson (Westinghouse Ovation) |
| Module Type | Analog Output Module |
| Channel Count | 8 channels |
| Output Signal | 4–20mA current loop |
| Load Resistance | Max 750Ω per channel |
| Resolution | 12-bit |
| Accuracy | ±0.1% of full scale at 25°C |
| Isolation | Channel-to-backplane galvanic isolation |
| Backplane Supply | 24VDC |
| Power Draw | 4W typical |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Humidity | 5%–95% non-condensing |
| Mounting | Ovation standard rack slot |
| Weight | 310g |
Engineer Notes
- Each channel provides current drive for 4–20mA loops. Verify loop resistance before commissioning; excessive cable resistance can reduce signal headroom.
- Front panel LEDs indicate module health and channel fault status. Common field issues include open loop wiring, shorted output channels and overloaded loops.
- Use shielded twisted pair cable for all analog output field wiring. Separate these wires from high-current power cables to limit induced noise and signal drift.
- This card uses rotary keying on the matching terminal block. Confirm key settings match before insertion to prevent miswiring.
- Follow ESD protocols during handling. Remove rack power before removing or installing the module. After replacement, perform loop calibration and update point database scaling.
- Do not hot-swap while field loops remain energized unless your site procedure explicitly permits it.
Pre-Shipment Test Protocol
- Visual inspection: Check PCB, edge connector, front panel and LED windows for bent pins, corrosion or component damage.
- Continuity and isolation test: Verify isolation between output channels and backplane bus.
- Functional bench test: Connect precision resistive loads to each channel, command 4mA, 12mA and 20mA setpoints from test controller and record measured current values.
- Fault simulation: Open and short each channel, confirm module logs diagnostic alarms.
- Power cycling: Cycle backplane power 10 times, confirm output values return to expected setpoints after each restart.
- Save test data and photos for QA records.
Buyer FAQ
Q: Can I swap 1C31181G01 with other Ovation AO modules directly? A: The physical form factor fits the same Ovation rack slot, but check firmware revisions and point scaling in the Ovation database before cutover.
Q: Does this module supply loop power to the 4-20mA field device? A: This is a current-source output module. It supplies the loop current for 4–20mA actuators, subject to the maximum load resistance rating.
Q: Is this new original Emerson factory stock? A: OEM production has stopped. Available units are surplus or fully refurbished tested stock. We offer a 12-month warranty on tested units.
Q: Are terminal blocks included with purchase? A: Terminal blocks are sold separately unless noted on your quote. Confirm terminal assembly availability at order time.
