Description
Product Overview

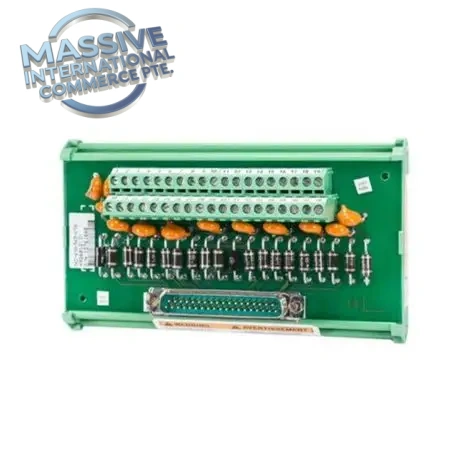

The Woodward 5437-672 is a NetCon series field terminal remote I/O module developed for Woodward turbine and genset control platforms. It serves as a distributed field interface between local field sensors, actuators and the main controller, collecting discrete and analog field signals and transmitting data over deterministic industrial communication links. This remote I/O unit reduces lengthy field wiring by placing signal termination close to process equipment, minimizing EMI noise and cable costs. It supports real-time I/O data acquisition and output drive for gas turbines, steam turbines and reciprocating engine generator control systems. Built-in LED status indicators offer instant visibility of channel and module health, with comprehensive self-diagnostic functions to detect wiring faults and module failures. It is commonly stocked as a drop-in spare for power generation, combined cycle and industrial prime mover control cabinets.
Technical Specifications
| Parameter | Details |
|---|---|
| Part Number | 5437-672 |
| Manufacturer | Woodward |
| Product Type | NetCon Field Terminal Remote I/O Module |
| Power Supply | 24 VDC nominal |
| Communication | Deterministic industrial network for NetCon system |
| Mounting | DIN rail mount |
| Enclosure | Compact metal/plastic housing for cabinet installation |
| Diagnostics | LED status indicators, module self-test, channel fault detection |
| Operating Temperature | -40°C ~ +70°C |
| Storage Temperature | -40°C ~ +85°C |
| Relative Humidity | 5% ~ 95% non-condensing |
| Approximate Weight | 0.25 kg |
Compliance & Certifications
- CE mark for EMC and Low Voltage Directive
- UL recognized for industrial control equipment
- RoHS compliant
- Factory full I/O loop and communication functional testing before shipment
Storage & Installation Guidelines
Storage Requirements
- Store in dry temperature-controlled warehouse; recommended ambient 10°C ~30°C, RH <70% non-condensing
- Remain sealed inside original anti-static packaging before installation
- Protect from mechanical shock, continuous vibration, dust and corrosive vapors
- ESD wristband required when unpacking and handling PCB components
Installation Instructions
- Perform lock-out/tag-out for turbine control power and field equipment circuits before replacement
- Wear ESD protective gear to prevent electrostatic circuit damage
- Snap the module onto standard DIN rail inside control cabinet
- Terminate field analog and discrete wiring to module terminal blocks, separate signal cables from high power wiring
- Connect deterministic network communication cable between this field terminal and main Woodward controller
- Apply 24VDC power, verify LED status indicators
- Download control application configuration, perform I/O point checkout and communication validation
- Commissioning must be completed by certified turbine control technicians
FAQ
Q: What system is Woodward 5437-672 used for? A: It belongs to Woodward NetCon remote I/O system for gas turbine, steam turbine and generator set control.
Q: What is the main function of this field terminal module? A: It acts as distributed remote I/O, acquiring field sensor signals and driving field outputs, communicating with central turbine controller.
Q: What mounting style does it use? A: Standard DIN rail mounting inside electrical control cabinets.
Q: Does it support built-in diagnostics? A: Yes, LED status indicators and internal self-diagnostics for module health and I/O channel faults.
Q: What warranty is available? A: Standard 12-month warranty applies for fully tested modules operated under rated normal operating service conditions.
