Description
Product Overview

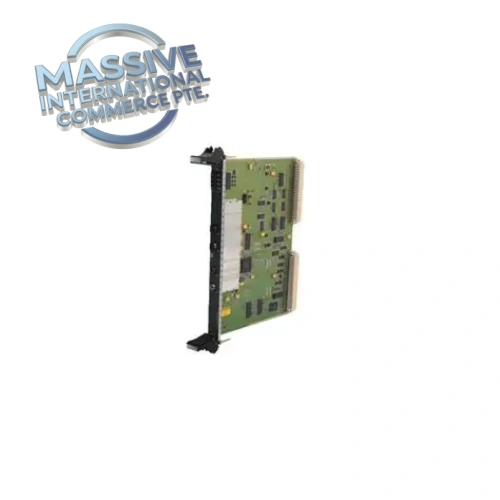

The Siemens 6DD1660-0BB0 is the CP50M0 master coupling communication module designed for SIMATIC TDC and SIMADYN D high-performance drive control systems. It uses fiber-optic links to achieve deterministic, low-latency inter-subrack synchronization and high-speed global data exchange between multiple TDC racks. As the master coupling processor, it coordinates distributed control subracks, maintains precise clock synchronization, and ensures consistent real-time data sharing across the whole multi-rack control system. This is a legacy discontinued spare widely used in heavy-duty synchronous drive and power conversion control.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Siemens |
| Part Number | 6DD1660-0BB0 (CP50M0) |
| Module Type | Master Coupling Communication Processor |
| Compatible System | SIMATIC TDC / SIMADYN D |
| Interface | Multi-mode fiber optic coupling ports |
| Topology | Supports star or linear interconnection of subracks |
| Max Connected Subracks | Up to 4 slave subracks under one master CP50M0 |
| Power Supply | 5 VDC from backplane |
| Front Panel | LED indicators for power, link status, fault diagnosis |
| Operating Temperature | 0°C ~ +60°C |
| Storage Temperature | -40°C ~ +85°C |
| Relative Humidity | 5% ~ 95%, non-condensing |
| Mounting | Eurocard slot inside SIMATIC TDC / SIMADYN D subrack |
| Dimensions | 233 mm × 20 mm × 160 mm |
| Net Weight | 0.95 kg |
Key Features
- Deterministic fiber optic inter-rack coupling for synchronized multi-subrack real-time control
- Galvanic isolation via optical transmission, excellent EMI/RFI noise immunity in power plant environments
- Continuous link monitoring and built-in diagnostics for fiber break, signal attenuation and module failure
- High-speed global data memory exchange for coordinated drive control across racks
- Works with D7-SYS engineering software for configuration, parameter download and fault diagnostics
- Supports precise time synchronization required for multi-motor synchronous control
- Rugged industrial PCB construction for continuous long-term operation in power conversion cabinets
Installation & Test Notes
- Power down the entire subrack and execute lockout/tagout before module replacement.
- Apply ESD protection; do not touch PCB traces or gold-plated backplane connectors.
- Insert CP50M0 fully into designated rack slot and fasten front retaining screw.
- Inspect multi-mode fiber end faces for contamination and scratches before connection; maintain minimum fiber bend radius.
- Restore rack power and check front LEDs; confirm PASS/link indicators are normal after boot-up.
- Use D7-SYS engineering tool to download coupling configuration and verify inter-rack data exchange.
- Perform link fault test by disconnecting fiber to validate fault reporting in system diagnostics.
- Check synchronization quality and data consistency between master and slave racks before returning online.
Application
Mainly applied in large rolling mill drives, paper machine line drives, generator static excitation systems, metallurgical heavy machinery and large compressor synchronous control systems. It is used for high-speed multi-rack coordinated control in power plants, metal processing and heavy industry sites.
FAQ
Q: What system is CP50M0 6DD1660-0BB0 used for? A: It is a master coupling module for Siemens SIMATIC TDC and SIMADYN D high-performance drive control platforms, used to connect multiple control subracks via fiber optics.
Q: What is the difference between CP50M0 and CP50M1? A: CP50M0 (6DD1660-0BB0) focuses on fiber inter-subrack coupling; CP50M1 supports industrial Ethernet communication for host system and HMI connection.
Q: Can it use single-mode fiber? A: No, CP50M0 uses multi-mode fiber only for subrack coupling links.
