Description
At-A-Glance Executive Brief

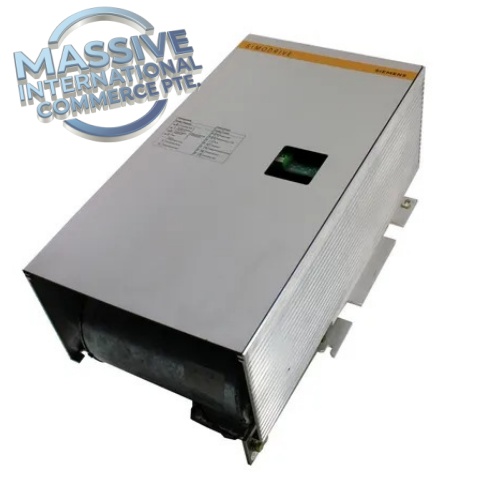

- Model: 6RA2781-6DV57-0AA0
- Brand: Siemens
- Part Type: SIMOREG 6RA27 fully digital four-quadrant thyristor DC converter / DC drive
- Lifecycle status: EOL legacy industrial drive spare; stocked for brownfield metal processing, paper, extruder and rolling mill maintenance
- System compatibility: 3-phase 380/400V AC supply, DC shunt-wound motor; provides closed-loop speed/torque control, field weakening, four-quadrant regenerative operation, local HMI and serial communication for PLC/automation integration
- Weight: ~24 kg
Technical Introduction
Failure of 6RA2781-6DV57-0AA0 will shut down the connected DC motor. Speed and torque regulation are lost; regenerative braking, field weakening and motor protection functions cease. Critical process loads such as extruders, winders, rolling stands and calenders stop, risking product scrap, mechanical damage and unplanned plant downtime.
Siemens 6RA2781-6DV57-0AA0 belongs to the SIMOREG 6RA27 series, a fully digital microprocessor-controlled four-quadrant thyristor DC drive. The suffix V57 denotes the enhanced version with integrated field weakening control, built-in keypad/display and standard serial port for programming device, printer or plain-text display connection. It accepts 3-phase 380/400V AC 50/60Hz input and supplies variable DC armature voltage for shunt DC motors. It executes full closed-loop speed and current regulation, with ramp generator, limit monitoring and comprehensive fault diagnostics. Four-quadrant (4Q) operation enables motoring and regenerative braking for rapid deceleration, ideal for winders, unwinders and rolling applications. It supports analog setpoint input and serial communication for interface to PLC systems. Widely deployed in metal rolling, plastic extrusion, paper machinery, wire drawing and heavy-duty DC drive applications. Plant reliability teams stock 6RA2781-6DV57-0AA0 to restore heavy-duty DC motor control after converter failure.
- Best Suited For
- Heavy-duty shunt DC motor control, four-quadrant regenerative applications
- Rolling mills, extruders, winders, calenders and legacy process machinery
- Direct drop-in replacement for existing Siemens 6RA2781-6DV57-0AA0 SIMOREG DC converter hardware
| Parameter | Value |
|---|---|
| Part Number | 6RA2781-6DV57-0AA0 |
| Manufacturer | Siemens |
| Product Type | SIMOREG 6RA27 Fully Digital Four-Quadrant DC Thyristor Converter |
| AC Input | 3-phase 380/400V, 50/60Hz |
| Operation Mode | Four-quadrant, regenerative braking |
| Control Functions | Speed/current closed-loop regulation, field weakening, ramp function, I²t thermal protection |
| Local Interface | Integrated keypad + digital display |
| Communication | Built-in serial interface for programming / diagnostics |
| Setpoint Input | Analog speed setpoint |
| Cooling | Internal fan forced cooling |
| Mounting | Cabinet chassis mounting |
| Operating Temperature | 0℃ ~ +45℃ |
| Humidity | 5–95% RH non-condensing |
| Weight | ~24 kg |
| Environmental Details | Please refer to the OEM datasheet for complete environmental tolerances and safety certifications. |
Field Engineer’s Tech Notes
- Confirm full ordering code, motor armature/field rating, field weakening parameters, control wiring and serial protocol before replacement; mismatch of motor data will cause unstable speed regulation or overcurrent trips.
- Implement lockout/tagout on 3-phase AC supply and DC motor circuits before drive removal; high voltage remains in DC bus and motor field windings after power removal.
- Inspect thyristor power section, cooling fan, heat sink dust buildup, armature/field cabling and terminal connections; heat sink contamination and fan failure are the most common failure modes for 6RA27 series.
- After installation, verify power-up, perform motor commissioning, set motor nameplate parameters, tune speed/current loops, test field weakening, four-quadrant regenerative braking and fault alarm functions. Validate PLC/serial communication, clear faults and remove lockout before returning load online.
- ESD protection required while handling control boards.
- Schedule periodic heat sink cleaning and fan inspection; dust accumulation accelerates power component ageing in heavy industrial environments.
Adaptive QA & Testing Protocol
Each 6RA2781-6DV57-0AA0 DC converter is bench tested with 3-phase power supply and DC load bank. We verify power section integrity, control board boot, keypad/display operation, analog setpoint response, closed-loop speed regulation and four-quadrant switching. Field weakening, overcurrent, I²t thermal and fault alarm functions are validated. Power thyristors, PCB assemblies, terminal blocks and cooling fan are visually inspected for burn marks, dust contamination or thermal damage. Full test reports are available upon request.
Buyer’s FAQ
Q: What is Siemens 6RA2781-6DV57-0AA0 used for? A: It is a legacy SIMOREG 6RA27 four-quadrant fully digital thyristor DC drive, providing closed-loop speed/torque and field weakening control for heavy-duty shunt DC motors in rolling mills, extruders and winders.
Q: What warranty applies for refurbished and NSFP 6RA2781-6DV57-0AA0? A: Refurbished and NSFP units carry a 12-month hardware warranty. Coverage excludes ESD damage, AC/DC surge damage, incorrect motor parameter setup, heat sink clogging and improper lockout/tagout procedures.
Q: What lead time should I expect? A: Stocked units ship 3–7 business days. If inventory depleted, we source surplus Siemens 6RA27 drives matching ordering code 6RA2781-6DV57-0AA0.
Q: Is the 6RA27 series still manufactured? A: No. SIMOREG 6RA27 is end-of-life legacy DC drive, replaced by later SIMOREG 6RA70 and SINAMICS DCM series.
