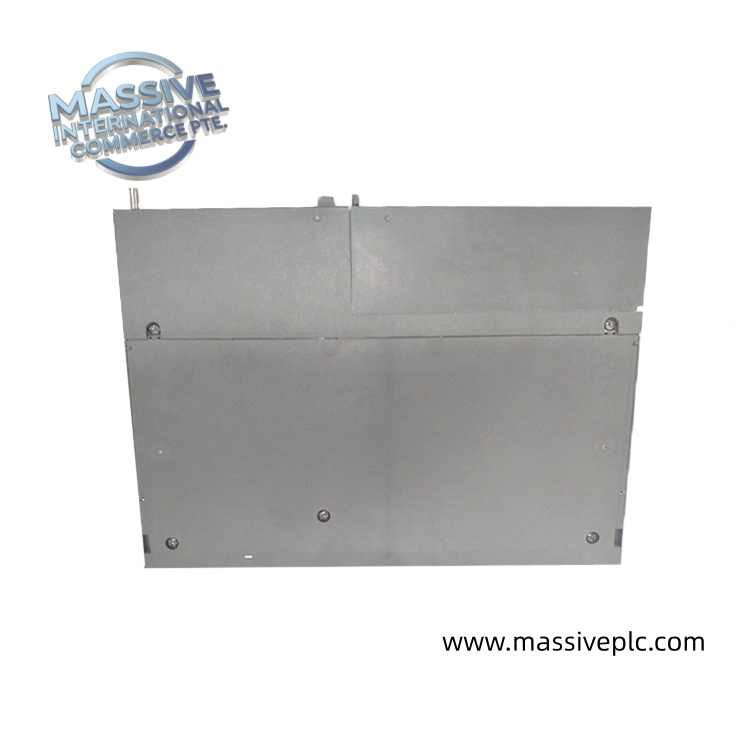

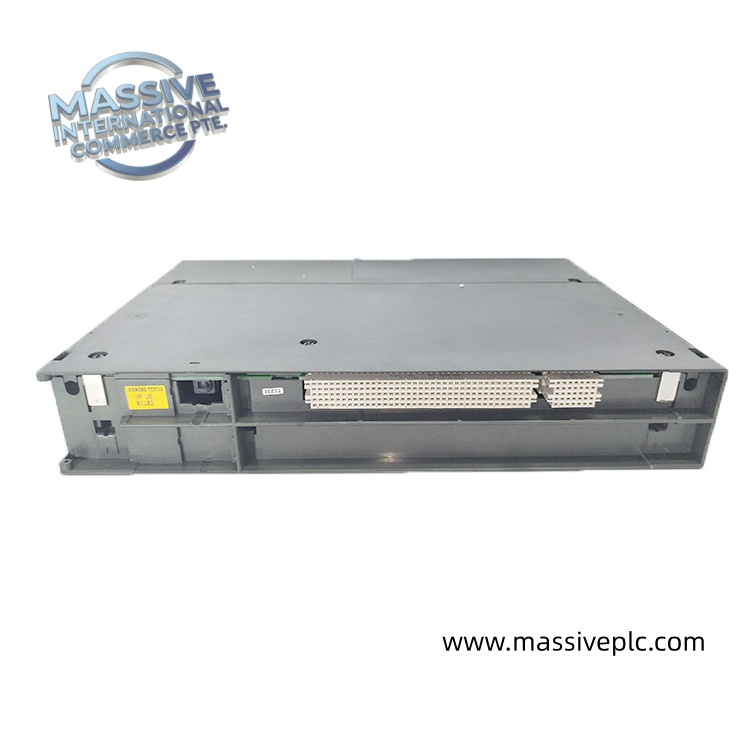

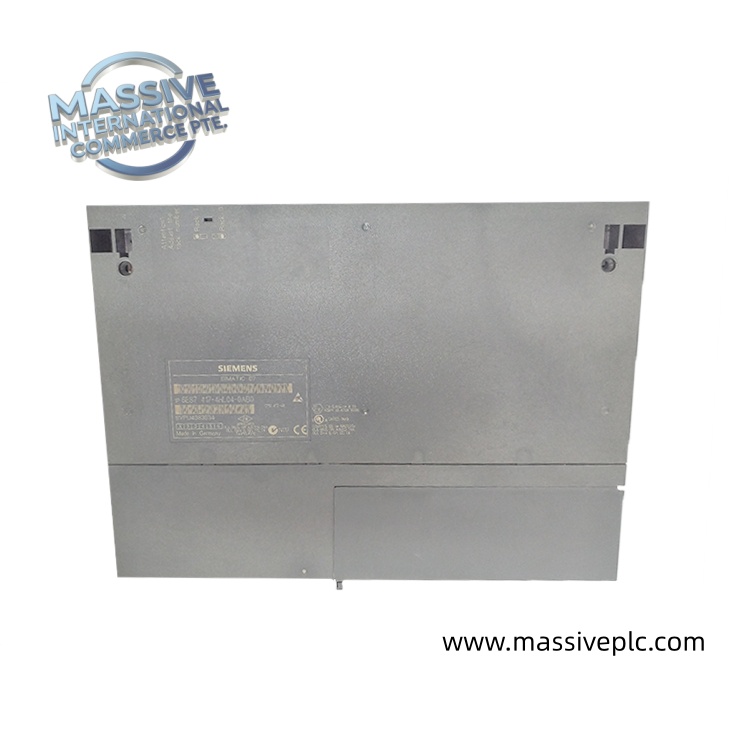

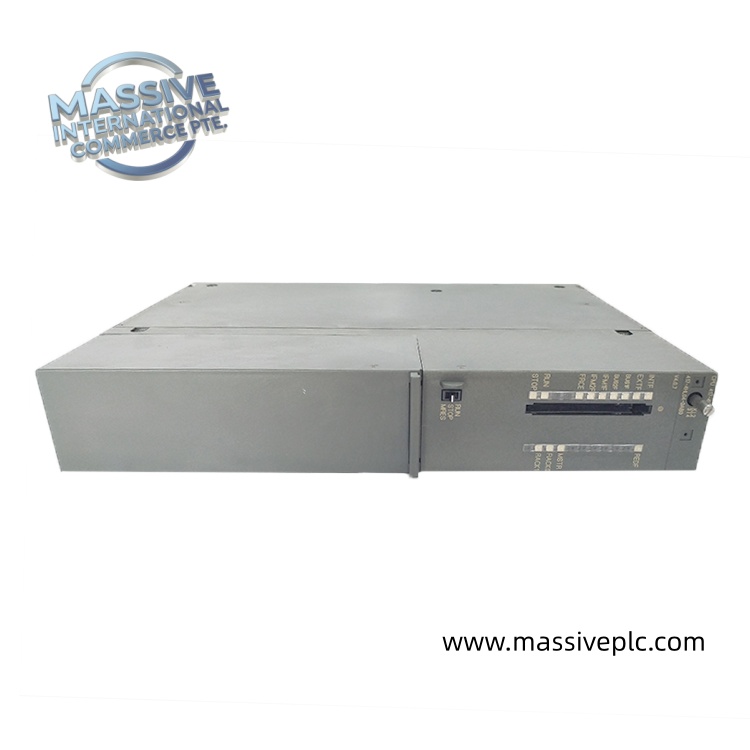

Siemens 6ES7417-4HL04-0AB0 | SIMATIC S7-400H CPU 417H, Redundant PLC Central Processing Unit, Industrial Automation Spare Part, In Stock

Description

Siemens 6ES7417-4HL04-0AB0 | SIMATIC S7-400H CPU 417H, Redundant PLC Central Processing Unit, Industrial Automation Spare Part, In Stock

Model: 6ES7417-4HL04-0AB0
Brand: Siemens
Product Series: SIMATIC S7-400H
Product Type: CPU 417H Central Processing Unit
Work Memory: 20 MB (10 MB program memory, 10 MB data memory)
Communication Interfaces: 1 MPI/DP interface, 1 PROFIBUS DP interface, 2 synchronization module interfaces
Supply Voltage: 24 VDC
Backplane Bus Current: 1.7 A at 5 VDC maximum
Typical Power Loss: 6 W
Maximum Expandable Load Memory: 64 MB with FLASH memory card
Integrated DP Masters: 2
Installation: S7-400H rack, requires 2 slots
Dimensions: 50 × 290 × 219 mm
Weight: Approx. 1.07 kg
Application: Redundant PLC control, process automation, industrial plant control, and high-availability automation systems

Product Overview

The Siemens 6ES7417-4HL04-0AB0 is a SIMATIC S7-400H CPU 417H central processing unit designed for high-availability and redundant automation systems. It provides 20 MB of work memory, divided into 10 MB for program memory and 10 MB for data memory, supporting demanding industrial control applications.

The CPU features one MPI/DP interface, one PROFIBUS DP interface, and two interfaces for synchronization modules used in S7-400H redundant configurations. It supports STEP 7 programming and integration with compatible SIMATIC S7-400H hardware.

This CPU is suitable for maintenance and replacement in existing industrial automation installations. Before ordering, verify the complete order number, hardware compatibility, firmware version, and synchronization configuration against your existing system.
