Description
Product Overview

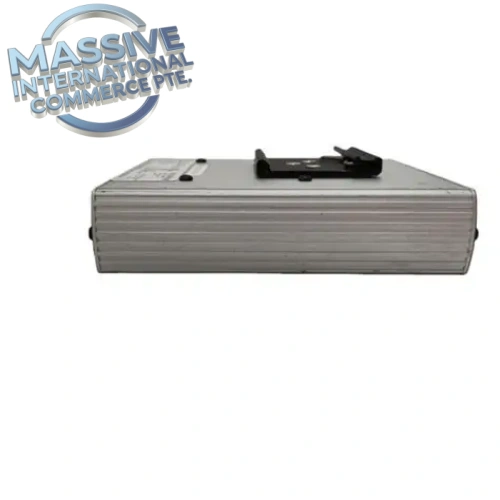

The ProSoft RLX2-IFH24E is a RadioLinx industrial frequency hopping wireless Ethernet radio operating on the license-free 2.4GHz band. Designed for long-distance, high-noise industrial environments, it delivers robust wireless Ethernet and serial communications for PLC, DCS and SCADA systems. It can be configured as master, remote or repeater radio, supporting point-to-point, point-to-multipoint and store-and-forward repeater network topologies. Built-in smart switching, 128-bit AES encryption and advanced ARQ error correction maintain reliable data links even under heavy EMI interference. It is widely deployed in oil & gas, water treatment, mining, pipeline and power generation sites where cable installation is difficult or costly, commonly stocked as spare wireless communication hardware for industrial automation networks.
Technical Specifications
| Parameter | Details |
|---|---|
| Part Number | RLX2-IFH24E |
| Manufacturer | ProSoft Technology (RadioLinx) |
| Product Type | Industrial Frequency Hopping Ethernet Radio Transceiver |
| RF Frequency Band | 2.400 ~ 2.4835 GHz license-free ISM band |
| RF Data Rate | 1.1 Mbps / 345 kbps, software selectable |
| Transmit Power (ETSI E model) | 10 ~ 100 mA programmable |
| Receiver Sensitivity | -97 dBm @1.1Mbps; -104 dBm @345kbps (10⁻⁶ BER) |
| Max Line-of-Sight Range | Up to 15+ miles with directional high-gain antennas |
| Ethernet Ports | Dual 10/100 Mbps copper Ethernet with built-in switch |
| Security | 128-bit AES encryption |
| Error Control | 32-bit CRC, ARQ automatic retransmission |
| Power Supply | 24 VDC nominal |
| Operating Temperature | -40°C ~ +75°C |
| Storage Temperature | -40°C ~ +85°C |
| Relative Humidity | 5% ~ 95% non-condensing |
| Configuration Software | ControlScape; OPC server for network health monitoring |
| Mounting | DIN rail mounting |
| Approximate Weight | 0.35 kg |
Compliance & Certifications
- FCC, ETSI radio approvals
- CE mark for EMC and Low Voltage Directive
- UL listed for industrial control equipment
- RoHS compliant
- Full factory RF and communication functional testing before shipment
Storage & Installation Guidelines
Storage Requirements
- Store in dry temperature-controlled warehouse, recommended ambient 10°C ~30°C, RH <70% non-condensing
- Keep sealed inside original anti-static packaging prior to installation
- Protect from mechanical shock, vibration, dust and corrosive vapors
- ESD wristband required when unpacking and handling the radio unit
Installation Instructions
- Disconnect 24VDC power supply before hardware installation
- Wear ESD protective gear to prevent electrostatic circuit damage
- Mount radio unit onto standard DIN rail inside control cabinet
- Attach compatible antenna to SMA RF port, route antenna cable away from high voltage power cables
- Connect Ethernet cables to PLC / DCS host and local field equipment
- Apply 24VDC power, use ControlScape software to set radio mode (master/repeater/remote), network ID and encryption keys
- Perform RF signal strength test and end-to-end Ethernet communication verification
- Commissioning and RF site survey must be completed by certified industrial network technicians
FAQ
Q: What is the difference between RLX2-IFH24E and RLX-IFH24E? A: RLX2-IFH24E is the upgraded second-generation model and fully backward compatible with legacy RLX-IFH24E radios.
Q: What network topologies does this radio support? A: Point-to-point, point-to-multipoint and repeater store-and-forward topologies. Unit can be set as master, remote or repeater.
Q: Is AES encryption available? A: Yes, 128-bit AES encryption is built-in for secure industrial wireless communication.
Q: What protocols can be transmitted over this wireless link? A: Supports standard Ethernet/IP, Modbus TCP, and all IEEE802.3 based industrial protocols.
Q: What warranty is available? A: Standard 12-month warranty applies for fully tested radios operated under rated normal operating service conditions.
