Description
Product Overview

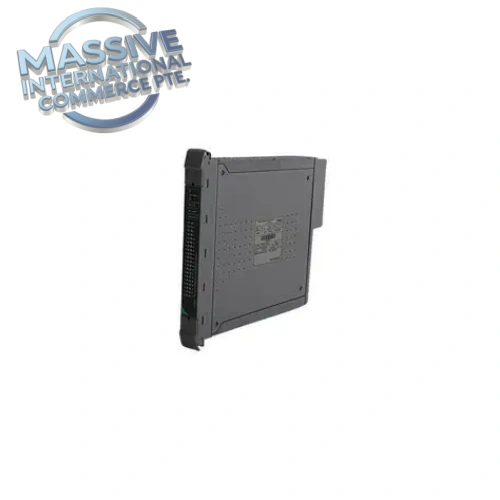

The T8451C is a 40-channel triple modular redundant (TMR) digital output module for the ICS Triplex Trusted safety instrumented system (SIS). It uses 2-out-of-3 (2oo3) hardware voting to drive 24VDC field actuators including solenoid valves, relay coils and alarm indicators. This high integrity module is widely used in ESD emergency shutdown, fire & gas and critical safety interlock applications across oil & gas, chemical and power plants. The C variant represents the latest coating / hardware revision of the base T8451 design.
Technical Specifications
| Item | Parameter |
|---|---|
| Manufacturer | ICS Triplex (Rockwell Automation) |
| Part Number | T8451C |
| Product Type | TMR Digital Output Module |
| Platform | Trusted SIS System |
| Channels | 40 digital outputs, grouped into 8 power groups (5 channels each) |
| Nominal Field Voltage | 24 VDC, operating range 18–32 VDC |
| Per-channel rating | Max 2 A continuous output |
| Per power group | Max total 8 A |
| Architecture | Triple Modular Redundancy, 2oo3 hardware voting |
| Safety Certification | IEC 61508 SIL 3 capable |
| SOE Resolution | 1 ms timestamp |
| Operating Temperature | -20°C ~ +60°C |
| Humidity | 5%–95% non-condensing |
| Mounting | Trusted rack plug-in card |
| Power Consumption | ≤28W typical |
Key Features
- Full TMR triplicated internal circuitry with hardware voting; single slice fault will not cause false trip or loss of safety output.
- Per-channel automatic diagnostics: detects open circuit, short circuit and field load faults on each output point.
- Built-in electronic overcurrent and short-circuit protection per channel, eliminating requirement for external fuses.
- 2500V impulse galvanic isolation between logic side and field outputs for noise immunity in high EMI cabinet environments.
- Hot-swappable design; online replacement in SmartSlot or companion slot configuration without SIS shutdown.
- Front panel individual channel LED status indicators plus module health LEDs for active / standby / fault status.
- Onboard sequence of events logging for post-incident root cause analysis.
Installation & Testing Notes
- Apply ESD protection when handling; static discharge can damage TMR logic circuitry.
- Install only in matching Trusted TMR rack; verify backplane health and rack power before insertion.
- After installation, confirm module “OK” LED, download safety application logic and run comprehensive point checkout.
- Perform loop testing on each output channel to validate switching, short/open fault diagnostics and load drive capability.
- Check rear terminal assembly for pin integrity, corrosion or loose wiring before commissioning or spare deployment.
- Follow SIS management procedures to place module into service and confirm voting health after replacement.
FAQ
Q: What is the difference between T8451 and T8451C? A: T8451C is the updated coated hardware revision of T8451 with enhanced conformal coating for harsh cabinet environments, functionally drop-in compatible.
Q: Is T8451C SIL3 rated? A: Yes, the Trusted T8451C module is certified for use in IEC 61508 SIL3 safety loops.
Q: Can it be hot swapped? A: Yes, when installed in the Trusted rack’s dedicated hot-slot configuration, online replacement is permitted.
