Description
Product Overview

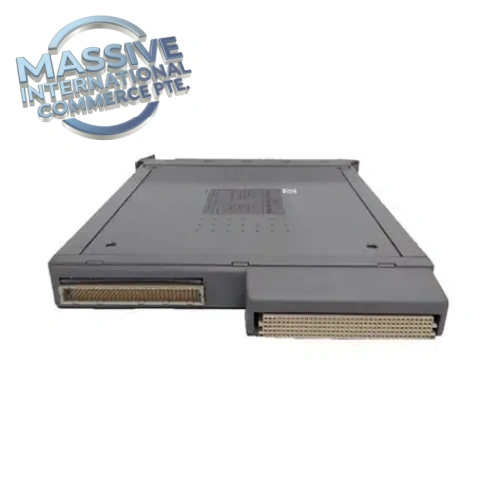

The ICS Triplex T8451 is a high-density triple modular redundant (TMR) digital output module designed for the Trusted safety control system. It delivers 40 channels of 24V DC output for safety instrumented systems (SIS) and critical process control applications. Built on 2oo3 hardware voting architecture, it maintains safe operation upon single-point hardware failure, certified IEC 61508 SIL 3 by TÜV. It supports online hot swap without system shutdown, ideal for continuous petrochemical, power generation, and oil & gas process plants.
Technical Specifications
| Parameter | Details |
|---|---|
| Model | T8451 |
| Brand | ICS Triplex |
| Type | TMR Digital Output Module |
| Channels | 40 output points, grouped into 8 power groups (5 channels each) |
| Nominal Field Voltage | 24V DC (18 ~ 32V DC operating range) |
| Per Channel Rating | 2A continuous output |
| Max per Power Group | 8A total current |
| Minimum on-state load current | 50mA |
| Isolation | Galvanic isolation, 2500V impulse withstand |
| SOE Resolution | 1ms onboard sequence of events logging |
| Operating Temp | -5°C ~ +60°C |
| Storage Temp | -25°C ~ +70°C |
| Humidity | 5~95% RH, non-condensing |
| Safety Certification | TÜV IEC61508 SIL3 |
| Feature | Electronic short-circuit protection, per-channel line fault monitoring |
Key Features
- Triple Modular Redundant (TMR) 2oo3 voting, eliminates single point of failure
- Per-channel automatic line monitoring: detect open circuit, short circuit wiring and load faults
- Front panel LED indicators for channel status and module health (Active / Standby / Fault)
- Built-in SOE function with 1ms timestamp resolution for event tracking
- Hot-replaceable design via companion slot or SmartSlot configuration
- Integrated overcurrent protection; no external fuses required
- Galvanic isolation between backplane logic side and field wiring side
Installation & Testing Notes
- Mount the T8451 in the Trusted system rack, match slot configuration for hot standby function
- Verify field 24VDC power wiring and check load impedance before power-up
- Complete hardware self-test after installation; module will report stuck-on/stuck-off channel faults
- Check front panel LED status, download configuration and perform full loop test with field actuators
- For replacement, follow hot-swap procedure to avoid process trip
FAQ
Q: What system rack does T8451 belong to? A: It belongs to ICS Triplex Trusted TMR safety system.
Q: Is hot swap supported? A: Yes, the T8451 supports online hot replacement with proper companion slot setup, no full system shutdown.
Q: What is the safety level of this module? A: SIL3 certified for safety instrumented system applications.
Q: How many channels per module? A: 40 channels of 24V DC digital output.
