Description
Product Overview

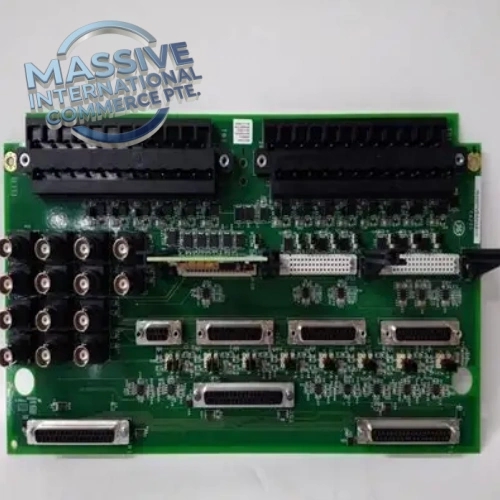

GE IS200EGPAG1ABC (EGPA) is an Exciter Gate Pulse Amplifier board designed for GE Speedtronic Mark VI / Mark VIe turbine control and EX2100 generator excitation systems. It receives gate firing command signals from the ESEL control board, amplifies and distributes SCR trigger pulses to the thyristor rectifier bridge of the excitation cabinet. It also collects heat sink temperature, cooling air flow and SCR conduction feedback signals for excitation bridge monitoring and over-temperature protection. Widely deployed in combined cycle power plants, gas turbine and steam turbine generator excitation cabinets. It is a critical legacy spare for maintenance and retrofit of GE EX2100 excitation systems.
Technical Specifications
| Parameter | Details |
|---|---|
| Part Number | IS200EGPAG1ABC |
| Brand | GE (General Electric) |
| Type | Exciter Gate Pulse Amplifier Board (EGPA) |
| Compatible Platform | GE Speedtronic Mark VI / Mark VIe, EX2100 Excitation System |
| Pulse Output | 6 channels SCR gate firing pulse outputs |
| Temperature Input | Dual thermal switch inputs from SCR heat sinks |
| Power Supply | Powered by EPDM excitation power distribution board |
| Threshold | Alarm at 170°F; Trip at 190°F for SCR over-temperature |
| Onboard Switches | 5 jumper settings for application configuration |
| Front Indicators | Multi-channel LED status for pulse activity, temperature alarm and fault |
| Conformal Coating | Acrylic conformal coating for dusty, humid cabinet environments |
| Operating Temperature | -30°C ~ +65°C |
| Storage Temperature | -40°C ~ +85°C |
| Humidity | 5~95% RH, non-condensing |
| Mounting | Plug-in card inside EX2100 excitation rack |
| Net Weight | ~0.52 kg |
| Certifications | CE |
| Product Status | OEM discontinued, aftermarket spare only |
Key Features
- 6 independent SCR gate pulse amplification channels to drive excitation rectifier thyristors
- Dual thermal switch monitoring for SCR heat sink over-temperature alarm and trip protection
- Captures rectifier airflow and SCR conduction feedback for excitation bridge health diagnostics
- Front panel LED indicators to visualize pulse output status, temperature warning and fault conditions
- Onboard jumper configuration for site-specific excitation setup without firmware modification
- Conformal coated PCB to resist moisture and corrosive atmosphere in power plant cabinets
- Works together with ESEL and EPDM boards to complete closed-loop excitation regulation
Installation & Testing Notes
- Insert IS200EGPAG1ABC into the dedicated slot of EX2100 excitation rack
- Connect signal cables from ESEL board and wiring for SCR heat sink thermal switches
- Confirm power feed from EPDM power distribution board before energizing high power bridge
- After power-up, inspect front LED indicators and run excitation system self-test via turbine HMI
- Perform static pulse test to verify each SCR gate trigger pulse output
- This board does NOT support hot swap. Isolate both control power and high excitation power before removal
- After replacement, conduct no-load excitation test and monitor bridge temperature feedback
- Periodically inspect jumper positions and connector tightness in high vibration turbine cabinet
FAQ
Q: What system is IS200EGPAG1ABC used for? A: GE Mark VI / Mark VIe turbine control system and EX2100 generator excitation cabinet.
Q: What is the function of the EGPA board? A: It amplifies gate firing pulses to control SCR rectifier bridge, and monitors SCR heat sink temperature and cooling airflow.
Q: Is IS200EGPAG1ABC hot swappable? A: No, all high voltage excitation power and control supply must be fully isolated before removing the board.
Q: What is the over-temperature setting of this board? A: Temperature alarm at 170°F, protection trip at 190°F.
Q: Which boards cooperate with EGPA? A: ESEL command board and EPDM excitation power distribution module.
