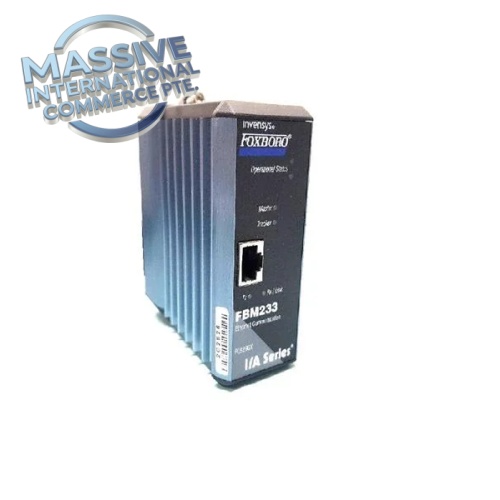

INVENSYS P0926GX
Manufacturer: Foxboro (Invensys / Schneider Electric)
Part Number: P0926GX
Model Alias: FBM233
Product Type: Redundant Field Device System Integrator (FDSI) Ethernet Communication Module, I/A Series DCS
Product Overview
The P0926GX (FBM233) is a high-availability Ethernet field integration module for Foxboro I/A Series distributed control system. It serves as the bridge between the DCS controller and intelligent field devices over 10/100Mbps Ethernet, supporting redundant network architecture to eliminate single point of failure. It collects field device data, executes protocol conversion, and delivers real-time process information to the I/A control rack, widely used in high-reliability continuous process plants.
Technical Specifications
| Parameter | Value |
|---|---|
| Module Designation | FBM233 |
| Communication Ports | Dual 10/100BASE-T Ethernet ports (redundant) |
| Supported Protocols | Modbus TCP, Ethernet/IP, other industrial Ethernet field device protocols |
| Backplane Interface | I/A Series FBM rack backplane |
| Mounting | Modular baseplate, rack mount |
| Operating Temperature | 0 °C ~ +60 °C |
| Storage Temperature | -40 °C ~ +85 °C |
| Approximate Weight | 284 g |
| Dimensions | 102 × 45 × 104 mm |
| Status Indicators | Power, Run, Fault, Link/Activity LED indicators |
| Certification | CE, UL, CSA |
Key Features
- Redundant dual Ethernet ports for hot standby communication; automatic failover upon network path failure.
- Protocol conversion gateway function, allowing multiple intelligent Ethernet field instruments to connect to I/A Series DCS.
- Hot-swappable module design, can be replaced online without shutting down the entire control rack.
- Built-in comprehensive diagnostics: link status, communication timeout, module hardware fault detection.
- Supports multi-device polling, real-time data acquisition and alarm/event forwarding to DCS.
- Compact form factor, fits standard I/A FBM baseplate assembly, simple integration with existing I/A hardware.
Application Scenarios
- Petrochemical refining DCS control systems
- Power plant boiler and turbine control
- Pulp and paper continuous production
- Chemical process plants with large quantity of Ethernet smart transmitters and controllers
- Pharmaceutical batch control systems requiring high network availability
Installation & Maintenance Notes
- Install the module onto the matching FBM modular baseplate before wiring.
- Use shielded CAT5e Ethernet cable for field network; ground shield at single end to prevent ground loop noise.
- Configure IP address and device polling list via I/A Series engineering workstation.
- Verify redundant failover function during commissioning by disconnecting primary Ethernet link.
- Inspect LED status after power-up to confirm module health and network link quality.
- Backup module configuration before replacement or firmware upgrade.
FAQ
Q: What is the alias of P0926GX? A: P0926GX is the Foxboro part number for FBM233 redundant Ethernet FDSI communication module.
Q: Does FBM233 P0926GX support hot swap? A: Yes, it is hot swappable in the I/A Series rack for online maintenance.
