Description
Product Overview

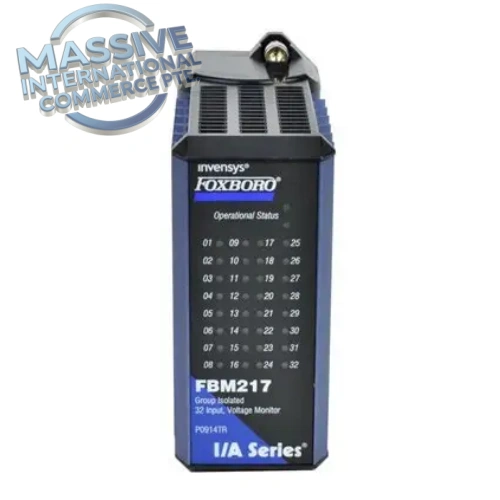

FBM217 is a 32-channel discrete input fieldbus module for Schneider EcoStruxure Foxboro I/A Series DCS system. It acquires digital on/off signals from field switches, contactors, limit switches and relay contacts, converts field discrete signals to digital data and transmits data to FCP280 or other field control processors via HDLC fieldbus. It supports single or redundant pair installation, and is matched with dedicated Termination Assembly (TA) for field wiring and optical isolation. It can execute discrete input acquisition, pulse counting and Sequence of Events (SOE) timestamp function for critical alarm and trip event recording.
Technical Specifications
| Item | Parameter |
|---|---|
| Manufacturer | Foxboro (Schneider Electric) |
| Part Number | FBM217, P0914TR / P0916CA |
| Product Type | 32-Channel Discrete Input Fieldbus Module (FBM) |
| Channel Count | 32 group-isolated discrete input channels |
| Supported Input Voltage | 15~60 VDC, 120 VAC/125 VDC, 240 VAC (depends on termination assembly) |
| On-state Voltage | 15–30 VDC; Off-state: 0–5 VDC |
| Input Current | 2.2 mA typical @ 30 VDC |
| Debounce / Input Filter | Configurable: No filter, 4 / 8 /16 /32 ms |
| Max Pulse Counting Frequency | 250 Hz |
| Fieldbus Interface | 2 Mbps HDLC module fieldbus |
| Power Supply | 24 VDC ±5%, -10% |
| Power Consumption | 3 W max |
| Environmental Rating | ISA S71.04 Class G3 harsh environment |
| Operating Temperature | -20 °C ~ +70 °C |
| Humidity | 5%–95% RH, non-condensing |
| Mounting | DIN rail or rack-mounted baseplate; hot swap with baseplate |
| System Compatibility | I/A Series DCS, works with FCP280, FCP270 controllers |
Key Features
- 32 Channel Digital Input Acquisition: High-density discrete input module, reduces rack slot usage for large point-count DI applications.
- Single / Redundant Deployment Option: Can be configured as redundant pair with redundant adapter; bumpless signal reading if one module fails, suitable for safety-critical interlock circuits.
- SOE & Pulse Count Function: Supports sequence-of-event high precision timestamp recording and low-frequency pulse counting for equipment status and transient event capture.
- Configurable Input Debounce Filter: Eliminates contact bounce noise from mechanical switches, adjustable filter time in engineering station.
- Optical Isolation via Termination Assembly: The matched TA provides galvanic isolation and voltage attenuation to protect DCS backplane from field surge and noise interference.
- G3 Rugged Industrial Design: Tolerates high dust, vibration and temperature fluctuation for field-mounted control cabinets.
- Hot Swap Capability: Module can be replaced without disconnecting field wiring when fitted on baseplate, minimizes plant downtime during maintenance.
- Front LED Status Indication: Visual LED indicators show module health, fieldbus communication and channel fault status.
Applications
- Petrochemical and chemical plant interlock and equipment status monitoring
- Power plant boiler, turbine and auxiliary system digital signal collection
- Oil & gas onshore / offshore production control cabinets
- Pulp & paper, metallurgy large-scale factory discrete signal monitoring
- Water treatment, pharmaceutical batch process digital input monitoring
Installation & Maintenance Notes
- ESD protection must be applied during module handling and replacement.
- Install FBM217 on the dedicated baseplate and connect to corresponding TA termination assembly for field wiring isolation.
- Separate field discrete signal cables from high-power AC cables to reduce EMI interference.
- Configure debounce time, SOE enable and fail-safe parameters in Foxboro engineering workstation before commissioning.
- For redundant pair configuration, verify synchronization and cross-check reading between primary and standby FBM217.
- Inspect LED status and module diagnostic logs during routine inspection.
- Confirm full part number and firmware compatibility before installing spare module.
FAQ
Q: What is the difference between FBM217 and FBM219? A: FBM217 is pure 32-channel discrete input only. FBM219 is hybrid I/O: 24 DI + 8 DO digital input/output module.
Q: Does FBM217 support SOE (Sequence of Events)? A: Yes, FBM217 supports SOE function to record high-precision timestamp of discrete state changes for trip and alarm root cause analysis.
