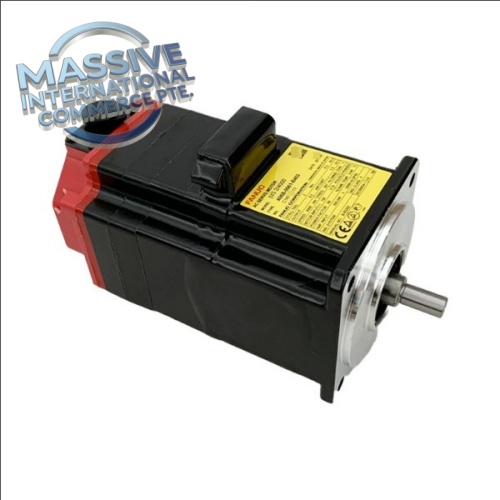

Fanuc A06B-0112-B103 | BiS0.3/5000 Beta iS AC Servo Motor, Straight Shaft In Stock

Description

At-A-Glance Executive Brief

• Model: A06B-0112-B103 (BiS0.3/5000)
• Brand: Fanuc
• Part Type: Beta iS compact AC servo motor
• Lifecycle status: Legacy CNC servo motor; stocked for brownfield Fanuc 0i / 16i / 18i CNC machine retrofits
• System compatibility: Fanuc βi servo amplifier, CNC feed axis positioning; encoder position and motor fault feedback sent to CNC controller / host PLC
• Weight: ~2.8 kg

Technical Introduction

Failure of A06B-0112-B103 disables the CNC feed axis. The axis will alarm out and stop moving; CNC reports motor overheat, encoder or amplifier alarm, preventing part machining. Axis position feedback loss triggers servo ready dropout and machine interlock. The Fanuc A06B-0112-B103 is a βiS0.3/5000 compact AC servo motor for CNC machine feed axes. This unit is built with a straight smooth (SLK) shaft (ST configuration), paired with built-in A64 incremental encoder for high-resolution position and speed feedback. Rated at 0.3kW output and 5000 rpm maximum speed, it delivers fast acceleration and precise positioning for small machine axes, auxiliary slides, turret or peripheral positioning units. The motor stator uses neodymium magnet construction for high torque density, with IP65 protection rating for machine shop environments. It connects to Fanuc Beta i servo amplifier via power and encoder cables; the amplifier executes current, speed and position loops. Motor temperature, rotor position and fault diagnostics are continuously transmitted back to the CNC controller for alarm display and machine status logging. Widely used on milling machines, lathes, grinders and automation positioning equipment equipped with Fanuc CNC systems. Machine maintenance teams stock A06B-0112-B103 to quickly restore axis motion during machine downtime.

• Best Suited For
  • Fanuc CNC machine feed axes and auxiliary positioning slides
  • High-precision 0.3kW axis motion control with 5000rpm speed capability
  • Direct drop-in replacement for existing Fanuc A06B-0112-B103 βiS servo motor hardware

Core Technical Specifications

Field Engineer’s Tech Notes

• Confirm encoder type, shaft style, cable pinout and amplifier compatibility before replacement; different B-code suffix variants are not interchangeable.
• Lockout/tagout and servo power discharge required before disconnecting motor power and encoder connectors.
• Inspect power/encoder cables and connectors; damaged wiring is a common cause of intermittent encoder or overcurrent alarms.
• After replacement, perform motor phase alignment, set CNC motor parameter set, execute axis reference return, tune servo HRV control loops, test full axis travel and verify encoder feedback before production run.
• ESD protection required while handling encoder connector and internal feedback components.
• Check bearing noise and seal condition during preventive maintenance; bearing wear and oil seal leakage are common failure modes for machine-mounted servo motors.

Adaptive QA & Testing Protocol

Each A06B-0112-B103 servo motor is bench tested on Fanuc βi servo amplifier test rig. We verify motor rotation across full speed range, check encoder position feedback and pulse integrity. Winding insulation resistance and phase balance are measured. Temperature sensor circuit and bearing noise are inspected. Connector pins and motor flange/shaft are visually inspected for corrosion, scratches or seal damage. Full test reports or bench test video clips are available upon request.

Buyer’s FAQ

Q: What is Fanuc A06B-0112-B103 used for? A: It is a Fanuc βiS0.3/5000 0.3kW AC servo motor, used for CNC machine feed axes and auxiliary positioning slides with 5000 rpm maximum speed and A64 incremental encoder.

Q: What warranty applies for refurbished and NSFP A06B-0112-B103? A: Refurbished and NSFP units carry a 12-month hardware warranty. Coverage excludes ESD damage, cable short circuits, mechanical shaft/bearing overload, improper CNC parameter setup and seal damage from machine coolant ingress.

Q: What lead time should I expect? A: Stocked units ship 3–7 business days. If inventory is depleted, lead time increases while we source surplus Fanuc A06B-0112-B103 servo motors.

Q: Does A06B-0112-B103 have a keyway on the shaft? A: This variant is ST SLK smooth straight shaft without keyway; keyed shaft variants use different suffix codes.
