Enterasys A4H124-24FX | 24-Port Fast Ethernet Fiber Switch, A-Series Managed Network Switch, In Stock

Description

Enterasys A4H124-24FX | 24-Port Fast Ethernet Fiber Switch, A-Series Managed Network Switch, In Stock

Model: A4H124-24FX
Brand: Enterasys (acquired by Extreme Networks)
Product Series: A-Series A4
Product Type: Managed Fast Ethernet Switch
Fiber Ports: 24 × 100BASE-FX MT-RJ ports
Gigabit Uplink Ports: 2 × SFP ports
Stacking / Uplink Ports: 2 × 10/100/1000BASE-T RJ45 ports
Console Interface: 1 × DB9 serial console port
Switching Capacity: 12.8 Gbps
Forwarding Throughput: 9.5 Mpps
Power Supply: 100–240 VAC
Input Frequency: 50–60 Hz
Maximum Input Current: 1.0 A
Power Consumption: 65.7 W
Operating Temperature: 0°C to +50°C
Storage Temperature: -40°C to +70°C
Operating Humidity: 5%–95%, non-condensing
Dimensions: 44 × 4.4 × 36.5 cm
Product Net Weight: 4.85 kg
Application: Enterprise networking, fiber Ethernet connectivity, network aggregation, and industrial network infrastructure

A4H124-24FX

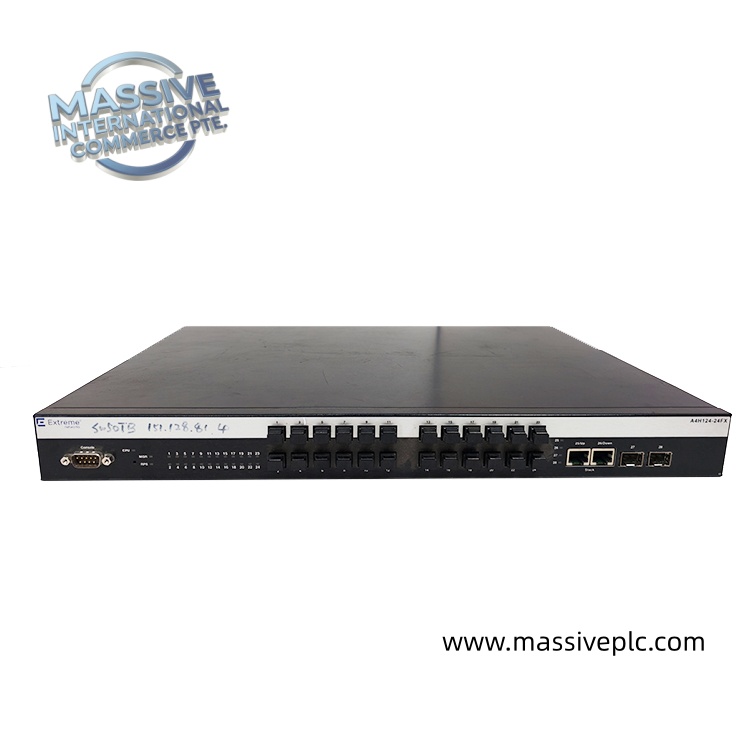

The Enterasys A4H124-24FX is a managed Fast Ethernet switch from the A-Series A4 product family. It provides 24 fiber-optic 100BASE-FX ports with MT-RJ connectors, making it suitable for connecting network devices over fiber links.

The switch also includes two SFP ports for supported Gigabit Ethernet transceivers and two 10/100/1000BASE-T ports for stacking or uplink connections. Network management features include VLAN support, link aggregation, spanning tree protocols, and traffic prioritization.

The A4H124-24FX is suitable for fiber-based network connectivity and maintenance of existing Enterasys or compatible Extreme Networks installations. Check the required transceivers, connector types, and network compatibility before ordering.
